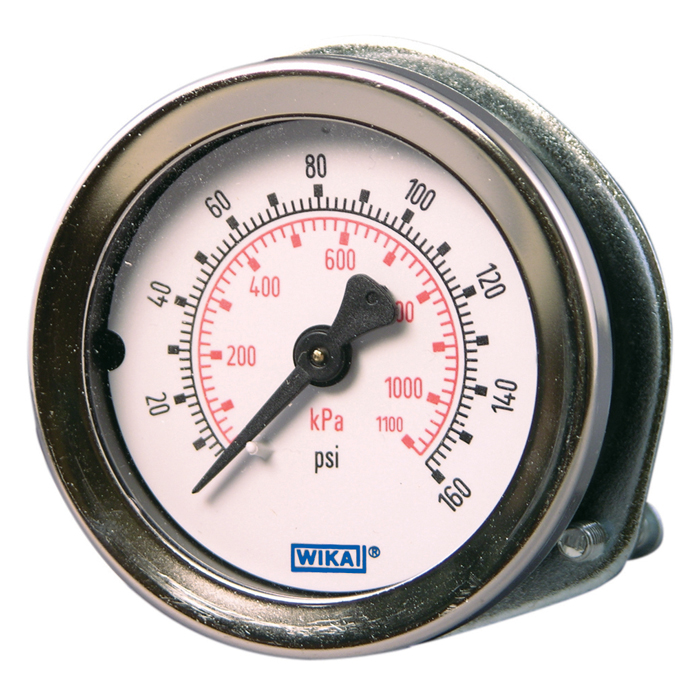

Wika 111.16PM Series 1.5" Dry U-Clamp Panel Mount Pressure Gauge, Brass Wetted Parts
Introducing the 111.16P Series U-Clamp Panel Mount Pressure Gauge, a dependable solution engineered for precision in compressed gas regulation, HVAC systems, and recovery applications. Designed to excel in diverse environments, this gauge is suitable for all media that won't obstruct the pressure system or corrode copper alloy parts.
Featuring a durable black ABS case, this pressure gauge offers resilience and longevity without compromising on performance. Its reliability and economical design make it a practical choice for various industrial settings, ensuring accurate pressure monitoring without breaking the bank.
With its U-Clamp design, installation becomes hassle-free, allowing seamless integration into existing systems. The gauge fits standard US panel cut-outs, offering compatibility and convenience for quick and efficient setup.
When it comes to sourcing high-quality instrumentation, Branom stands as the premier destination. Renowned for its commitment to excellence and customer satisfaction, Branom is your trusted partner in procuring top-notch products like the 111.16P Series U-Clamp Panel Mount Pressure Gauge. Elevate your pressure monitoring capabilities with Branom, where reliability meets affordability for unparalleled performance in industrial applications.
Upgrade your pressure monitoring capabilities with the 111.16P Series U-Clamp Panel Mount Pressure Gauge from Branom, your go-to source for quality instrumentation.
Order Code Prefix: US-111.16-A
Specifications
| Wika 111.16A | |
|---|---|
| Scale Range | ￭ psi ￭, [PG310] 0/15 psi, [PG321] 0/30 psi, [PG341] 0/60 psi, [PG369] 0/100 psi, [PG410] 0/150 psi, [PG411] 0/160 psi, [PG414] 0/200 psi, [PG417] 0/250 psi, [PG421] 0/300 psi, [PG428] 0/400 psi, [PG434] 0/500 psi, [PG441] 0/600 psi, [PG455] 0/800 psi, [PG469] 0/1000 psi, [PG510] 0/1500 psi, [PG514] 0/2000 psi, [PG521] 0/3000 psi, [PG528] 0/4000 psi, [PG534] 0/5000 psi, [PG541] 0/6000 psi, ￭ inHg / psi ￭, [PV310] -30 inHg/0 psi, [PV321] -30 inHg/15 psi, [PV331] -30 inHg/30 psi, [PV352] -30 inHg/60 psi, [PV379] -30 inHg/100 psi, [PV412] -30 inHg/160 psi, [PV415] -30 inHg/200 psi, [PV422] -30 inHg/300 psi |
| 2nd Scale | [Z] Without, [B] bar, [L] kPa |
| Process Connection | [NH] 1/8 NPT, [NB] 1/4 NPT |
| Bezel | [Z] Without, [D] SS, Crimped |
| Mounting Flange / Bracket | [ZZ] Without, [AO] Round U-Clamp Bracket, Zinc Plated Steel |
| Restrictor | [ZJZZ-ZZ2] Without, [AJZZ-ZZ2] Brass, D 0.3 |
| Pointer | [B] Plastic, Black, [Y] Aluminum, Black |
| Internal Tap in Connection | [Z] Without, [A] M5 Internal Tap in Pressure Port |
| Thread Protection | [ZZA] Without, [1ZA] With Thread Protection |
| Panel Adapter Ring | [Z] Without, [A] Adapter Ring, Black Plastic |
| Packing | [0] Individual Packing, Plastic Bag, [2] Single Packing |
| Dial | [AAZUA] Plastic, White, w/Stop-Pin, [ASZUA] Plastic, White, w/o Stop-Pin, [ABZUA] Aluminum, White, w/Stop-Pin |
| Color for Inner Scale | [Z1ZZZZZZ] Without, [C1ZZZZZZ] Red |
| Manufacturer Logo | [2] WIKA®, [Z] Without |
| Stop Pin on Dial | [1ZZ] At Zero, [ZZZ] Without |
| Nominal Size | 1.5" |
| Connector Location | [B] Center Back Mount |
| Case Material | [AA] Black Plastic |
| Window | [N] Clear Plastic |
| Accuracy Class | [J] +/- 3/2/3% (ASME B40.100 Grade B) |
| Set / Drag Pointer | [Z] Without |
| Special Design Features | [Z] Without |
| Certificates | [Z] Without |
| Additional Ordering Info | [Z] Without |
| Movement | [2] Standard |
| PTFE Tape on Connection | [Z] Without |
| Process Connection Surface Area | [A] Brass |
| Serial Number on Dial | [Z] Without |
| Pressure Gauge Standard | [U] US-Standard |
| Color for Outer Scale | [A] Black |
| Dial Background | [1] White |
| Text for Dial | [Z] Without |
| Logo Options | [ZZZZZ] Without |
| Additional Mark | [Z] Without |
| Norm-Mark on Dial | [Z] Without |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Model | 111.16PM |
| Gauge: Dial Size | 1-1/2 in (38 mm) |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Fill Type | Dry |
| Gauge: Product Unit of Measure | psi / inHg |
| Gauge: Process Connection Size | 1/8 NPT, 1/4 NPT |
| Gauge: Process Connection Location | Center Back Mount |
| Gauge: Wetted Material | Copper Alloy (Brass) |
| Gauge: Accuracy | ±3% |
| Gauge: Case Material | Plastic |
| Gauge: Dial Material | Plastic, Aluminum |
| Gauge: Pointer Material | Plastic |
| Gauge: Bezel Material | None, Stainless Steel |
