Description

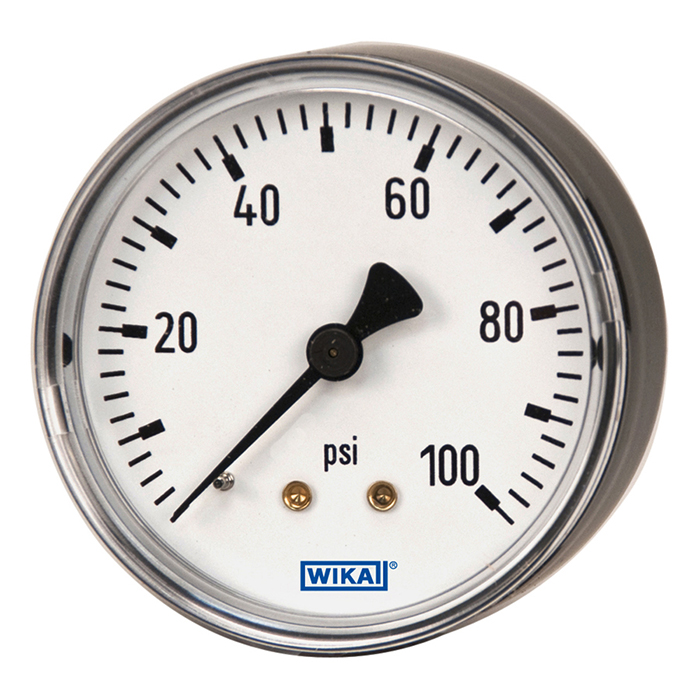

The Wika 111.10SP Standard Series Sprinkler Gauge is the ultimate solution for fire sprinkler systems, ensuring safety and reliability in critical applications. Designed to work seamlessly with all media that do not obstruct the pressure system or compromise copper alloy components, this gauge stands out in its field for both performance and durability.
A notable feature of this gauge is the NEW FlexWindow option available on the 2-1/2” models, offering enhanced flexibility and usability. The 111.10SP is UL-listed (UL-393) in the United States and Canada, and also boasts Factory Mutual (FM) approval, affirming its adherence to stringent safety and performance standards.
This sprinkler gauge is not only reliable but also economical, providing an affordable option without sacrificing quality. Branom Instrument Co. is proud to offer the Wika 111.10SP Standard Series Sprinkler Gauge, ensuring you receive a top-tier product with unmatched service.
Specifications
| Wika 111.10SP | |
|---|---|
| Scale Range | 0…80 psi, retard to 250 psi, 0..300 psi, 0..400 psi, 0..600 psi |
| 2nd Scale | Without, bar dual scale, kPa dual scale, kg/cm2 dual scale |
| Process Connection | 1/4 NPT, 1/2 NPT |
| Case Material | Black Polycarbonate Case, Black Steel Case |
| Accuracy Class | ± 3/2/3%, ± 2/1/2% |
| Thread Protection | Without, Thread Protection |
| PTFE Tape on Connection | Without, PTFE Tape |
| Process Connection Surface Area | Brass, Nickel Plated |
| Serial No. on Dial | Without, Serial Number *...* |
| Color for Outer Scale | Black, Red, White, Blue |
| Color for Inner Scale | Without, Red, Black, White, Blue Pantone 3005 |
| Mark on Dial | Year of Manufacture - *AIR*, Year of Manufacture - *WATER*, Year of Manufacture - *AIR/WATER*, Month and Year of Manufacture - *AIR*, Month and Year of Manufacture - *WATER*, Month and Year of Manufacture - *AIR/WATER* |
| Manufacturer Logo | Without, *WIKA®* |
| Additional Mark | Without, *Pressure Gauge for Fire Protection Service* |
| Norm-Mark on Dial | *UL & FM* *Assembled in USA*, Without |
| Nominal Size | 4" |
| Connector Location | Lower Mount |
| Window | Polycarbonate Window |
| Restrictor | Without |
| Certificates | Without |
| Additional Ordering Info | Without |
| Movement | Copper Alloy |
| Pointer | Aluminum, Black |
| Packing | Single Packing |
| Dial | Aluminum, White w/Stop Pin |
| Pressure Gauge Standard | US-Standard |
| Dial Background | White |
| Mark Color | Black |
| Arcs / Segments | Without |
| Text for Dial | Without |
| Logo Options | Without |
| Stop Pin on Dial | At 6 o'clock |
| Press. Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Product Unit of Measure | psi |
| Gauge: Process Connection Location | Lower Mount |
| Gauge: Case Material | Thermoplastic, Steel |
| Gauge: Window | Snap-In, Polycarbonate |
| Gauge: Wetted Material | Copper Alloy (Brass) |
| Gauge: Fill Type | Dry |
| Gauge: Dial Size | 4 in (100 mm) |
| Gauge: Process Connection Size | 1/8 NPT, 1/4 NPT |
| Gauge: Accuracy | ±3%, ±2% |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Model | 111.10SP |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
