  3. Wika 111.10 Series 1.5" Dry Plastic Pressure Gauge, Brass Wetted Parts
PressureWorx
‎
Wika 111.10 Series 1.5" Dry Plastic Pressure Gauge, Brass Wetted Parts

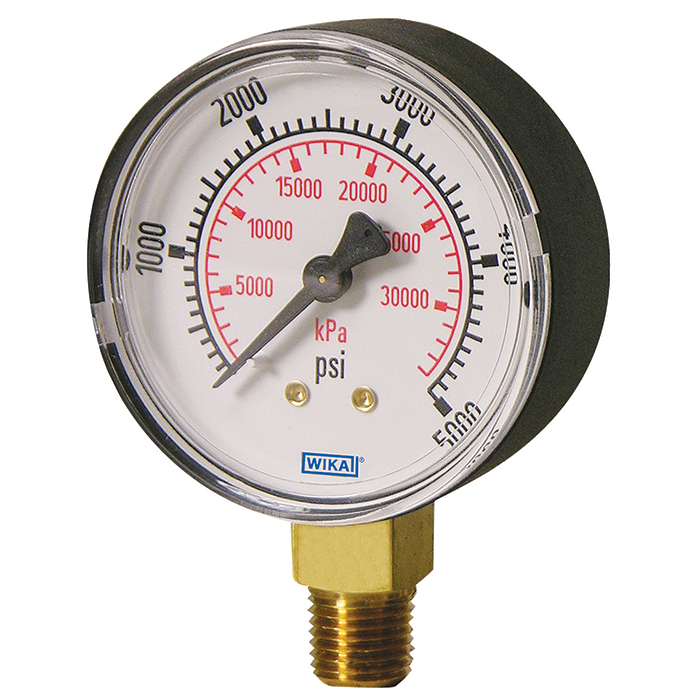

Representative photo. Please check item description for details.

Wika 111.10 Series 1.5" Dry Plastic Pressure Gauge, Brass Wetted Parts

https://www.pressureworx.com/web/image/product.template/543100/image_1920?unique=46dd3cb
(0 review)

$ 21.86 21.85785 USD $ 23.13

$ 23.13

Not Available For Sale

  • Nominal Size
  • Scale Range
  • 2nd Scale
  • Process Connection
  • Connector Location
  • Case
  • Bezel
  • Mounting Flange / Bracket
  • Window
  • Restrictor
  • Accuracy Class
  • Set / Drag Pointer
  • Special Design Features
  • Certificates
  • Additional Ordering Info
  • Movement
  • Pointer
  • Internal Tap in Connection
  • Dial
  • Serial Number on Dial
  • Thread Protection
  • PTFE Tape on Connection
  • Protective Rubber Cap
  • Packing
  • Process Connection Surface Area
  • Pressure Gauge Standard
  • Color for Outer Scale
  • Color for Inner Scale
  • Dial Background
  • Text for Dial
  • Logo Options
  • Manufacturer Logo
  • Stop Pin on Dial
  • Additional Mark
  • Norm-Mark on Dial
  • Safety Mark on Dial
  • Accuracy Class on Dial
  • CE Mark on Dial
  • Gauge: Brand
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Process Connection Location
  • Gauge: Process Connection Location
  • Gauge: Process Connection Location
  • Gauge: Process Connection Location
  • Gauge: Case Material
  • Gauge: Window
  • Gauge: Window
  • Gauge: Window
  • Gauge: Wetted Material
  • Gauge: Fill Type
  • Gauge: Dial Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Accuracy
  • Gauge: Measuring Principle
  • Gauge: Measuring Principle
  • Gauge: Pressure Type
  • Gauge: Model
  • Gauge: Scale Range
  • Gauge: Type

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Specifications

Wika 111.10A
Scale Range Scale Range, [PG269] 0/10 psi, [PG310] 0/15 psi, [PG321] 0/30 psi, [PG341] 0/60 psi, [PG369] 0/100 psi, [PG410] 0/150 psi, [PG411] 0/160 psi, [PG414] 0/200 psi, [PG417] 0/250 psi, [PG421] 0/300 psi, [PG428] 0/400 psi, [PG434] 0/500 psi, [PG441] 0/600 psi, [PG455] 0/800 psi, [PG469] 0/1000 psi, [PG510] 0/1500 psi, [PG514] 0/2000 psi, [PG521] 0/3000 psi, [PG528] 0/4000 psi, [PG534] 0/5000 psi, ￭ inHg / psi ￭, [PV310] -30 inHg/0 psi, [PV321] -30 inHg/15 psi, [PV331] -30 inHg/30 psi, [PV352] -30 inHg/60 psi, [PV379] -30 inHg/100 psi, [PV412] -30 inHg/160 psi, [PV415] -30 inHg/200 psi, [PV422] -30 inHg/300 psi, ￭ bar ￭, [BG260] 0/0.6 bar, [BG310] 0/1 bar, [BG325] 0/2.5 bar, [BG340] 0/4 bar, [BG360] 0/6 bar, [BG410] 0/10 bar, [BG416] 0/16 bar, [BG420] 0/20 bar, [BG425] 0/25 bar, [BG440] 0/40 bar, [BG460] 0/60 bar, [BG470] 0/70 bar, [BG510] 0/100 bar, [BG516] 0/160 bar, [BG521] 0/210 bar, [BG525] 0/250 bar, [BG535] 0...350 bar, ￭ bar vacuum ￭, [BV310] -1/0 bar, [BV316] -1/0.6 bar, [BV325] -1/1.5 bar, [BV340] -1/3 bar, [BV360] -1/5 bar, [BV410] -1/9 bar, [BV416] -1/15 bar
2nd Scale [Z] Without, [B] Bar, [L] kPa, [K] kg/cm2
Process Connection [NH] 1/8 NPT, [NB] 1/4 NPT
Connector Location [U] Lower Mount, [E] 3 o'clock, [G] 9 o'clock, [D] 12 o'clock
Case [AAZZZ] Black Plastic, [ABZZZ] Chrome-Plated Plastic, [ADZZZ] Black Steel w/Pressure Vent, [AFZZZ] Chrome-Plated Steel w/Pressure Vent
Window [N] Plastic, Clear, [E] Polycarbonate, [G] Flat Instrument Glass
Restrictor [ZJZZ-ZZ1C-Z] Without, [AJZZ-ZZ1C-Z] Brass, D 0.3
Dial [AZ] Plastic, White, w/Stop Pin, [SZ] Plastic, White, w/o Stop Pin, [BZ] Aluminum, White, w/Stop Pin, [CZ] Aluminum, White, w/o Stop Pin
Thread Protection [ZZZ-2] Without, [1ZZ-2] With Thread Protection
Process Connection Surface Area [AUA] Brass, [EUA] Nickel Plated
Color for Inner Scale [Z] Without, [C] Red, [A] Black
Dial Background [1ZZZZZZ] White, [LZZZZZZ] Luminous Color
Manufacturer Logo [2] WIKA®, [Z] Without
Stop Pin on Dial [1ZZZZZ] At Zero, [ZZZZZZ] Without
Nominal Size 1.5"
Bezel [ZZ] Without
Mounting Flange / Bracket [Z] Without
Accuracy Class [J] +/- 3/2/3% (ASME B40.100 Grade B)
Set / Drag Pointer [Z] Without
Special Design Features [Z] Without
Certificates [Z] Without
Additional Ordering Info [Z] Without
Movement [1] Copper Alloy
Pointer [C] Standard Pointer
Internal Tap in Connection [Z] Without
Serial Number on Dial [Z] Without
PTFE Tape on Connection [Z] Without
Protective Rubber Cap [Z] Without
Packing [2] Single Packing
Pressure Gauge Standard [U] US-Standard
Color for Outer Scale [A] Black
Text for Dial [Z] Text for Dial
Logo Options [ZZZZZ] Without
Additional Mark [Z] Without
Norm-Mark on Dial [Z] Without
Safety Mark on Dial [Z] Without
Accuracy Class on Dial [Z] Without
CE Mark on Dial [Z] Without
Gauge Features
Gauge: Brand Wika
Gauge: Product Unit of Measure psi / inHg, bar
Gauge: Process Connection Location Lower Mount, 3 o'clock, 9 o'clock, 12 o'clock
Gauge: Case Material Plastic
Gauge: Window Snap-In, Clear Plastic, Polycarbonate, Flat Instrument Glass
Gauge: Wetted Material Copper Alloy (Brass)
Gauge: Fill Type Dry
Gauge: Dial Size 1-1/2 in (38 mm)
Gauge: Process Connection Size 1/8 NPT, 1/4 NPT
Gauge: Accuracy ±3%
Gauge: Measuring Principle Bourdon Tube, Bourdon Tube
Gauge: Pressure Type Gauge Pressure
Gauge: Model 111.10
Gauge: Scale Range ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
Gauge: Type Dial Indicating Gauge
