Description

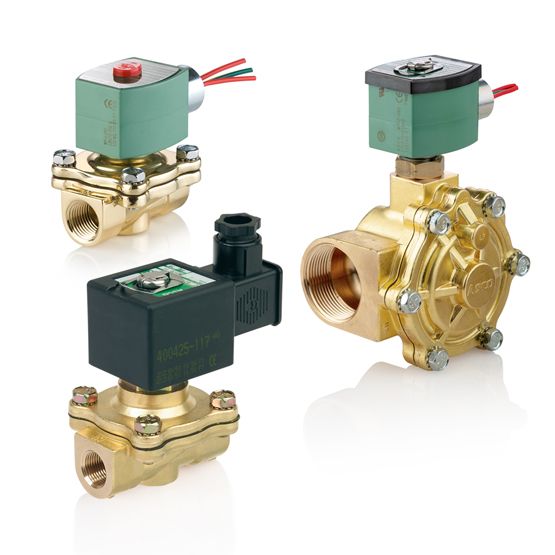

The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
Features
- Body Material: Stainless Steel
- Flow (Cv) / Flow (Kv): 5.00 / 4.32
- Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 3/4
- Valve Actuation: Solenoid
- Media: Air, Inert Gas, Water
- Product Weight: 2.49 lbs
- Kit Number: 302423
- Coil Class: FT
- Coil Number: 238712-006
- Min to Max Ambient Temperature: 32 - 104 °F
- Orifice Size: 5/8 in
- Voltage: 24 Volts DC
- Watt Rating: 11.6 W
- Item Status: Active
- Carton Note: 3/4 X 5/8 2NC S.S. 11.6/F DC
- Seating Elastomer: NBR
- Mounting Direction: Any:
