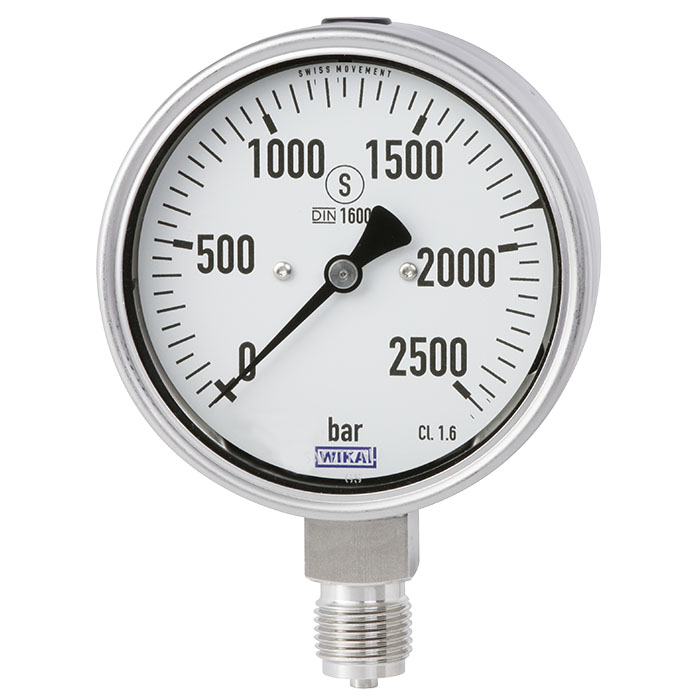

Wika PG23HP-S Series 6" SS High Pressure Gauge w/Safety Pattern
The Wika PG23HP-S Series SS High Pressure Gauge with Safety Pattern is designed for high-pressure applications involving liquid media, such as water and hydraulic oil. This gauge excels in environments requiring high-pressure generation, high-pressure cleaning, and water jet cutting, as well as on test benches for hydraulic components.
Engineered to meet the stringent requirements of the DIN 16001 high-pressure standard, the PG23HP-S features a robust safety pressure gauge with a solid baffle wall. The wetted parts are constructed from durable stainless steel 316L, ensuring exceptional longevity and performance under static pressure profiles. Available in scale ranges from 0 to 2,000 bar, 0 to 2,500 bar, and up to 3,000 bar, this gauge is equipped to handle a variety of high-pressure needs.
The safety version of the PG23HP-S includes laminated safety glass, a solid baffle wall between the measuring system and the dial, and a blow-out back. This design ensures that in the event of a failure, the operator is protected from any media or components, which can only be ejected through the back of the instrument.
The PG23HP-S’s all-welded construction guarantees a long service life and a permanent seal, with the option to increase resistance to shock and vibration through case filling. Branom Instrument Co. stands as the premier source for this reliable and high-performing pressure gauge, providing unmatched expertise and service.
Order Code Prefix: PG23HP-S3-
Specifications
| Wika PG23HP-S 6 | |
|---|---|
| Case Filling | [D-5H-E] Without, [F-5H-E] With |
| Scale Range | ￭ psi ￭, [PG621] 0/30000 psi, [PG628] 0/40000 psi, ￭ bar ￭, [BG620] 0/2000 bar, [BG625] 0/2500 bar, [BG630] 0/3000 bar, ￭ MPa ￭, [EG620] 0/200 MPa, [EG625] 0/250 MPa, [EG630] 0/300 MPa, ￭ kg/cm2 ￭, [KG620] 0/2000 kg/cm2, [KG625] 0/2500 kg/cm2, [KG629] 0/3000 kg/cm2 |
| 2nd Scale | [Z] Without, [B] bar, [P] psi, [E] MPa, [K] kg/cm2 |
| Process Connection | [GD-U] G 1/2 B, [MI-U] M20 x 1.5, [VV-U] 9/16-18 UNF Female, Autoclave Engineers F-250-C, [JO-U] 5/8-18 UNF Female, Autoclave Engineers F-312-C150, [VO-U] M16 x 1,5 Female, Nova Swiss, [UI-U] 9/16-18 UNF LH male, [VQ-U] M14 x 1,5 LH Male |
| Mounting Flange / Bracket | [ZH] Without, [SH] SS Surface Mounting Lugs, [MH] SS Front Flange, [F] SS Front Flange, Polished (Standard) |
| Restrictor | [Z] Without, [R] SS, Orifice 0.3 mm (0.012 in), [Q] SS, D 0.6, [J] SS Pressfit D 0,3, [I] SS Screwed D 0,6 |
| Pointer | [C] Standard Pointer, [A] Adjustable Pointer |
| Set / Drag Pointer | [ZZZZZ2I] Without, [AZZZZ2I] Red Mark Pointer on Dial, [RZZZZ2I] Externally Adjustable Red Set Pointer on Window |
| Overpressure Safety | [1] Full Scale Value, [B] Vacuum Down to -1 bar |
| Case Material | [3] 304 SS (Standard), [E] 316Ti SS |
| Case Surface | [D] Bare, [5] Epoxy Coated, [6] Bare Case / Polished Ring |
| Case Filling | [2] Without, [1] Prepared for Filling, [D] Silicon Oil, 50 cSt |
| Ingress Protection | [I] IP 65, [K] IP 66, [L] IP 67, [F] IP 54 |
| Permissible Medium Temp | [Y] + 100 °C, [3] + 200 °C |
| Permissible Ambient Temp | [W01-U] -40 ... +60 °C, [G01-U] -20 ... +60 °C |
| Color for Inner Scale | [ZZZZZZ] Without, [CZZZZZ] Red, [AZZZZZ] Black |
| Manufacturer Logo | [2] *WIKA®*, [E] *WIKA®* w/o QR-Code |
| Stop Pin on Dial | [ZZZ] Without, [2ZZ] At 6 O'Clock |
| Nominal Size | [F] 6" |
| Connector Location | [U] Lower Mount |
| Window | [H] Laminated Safety Glass |
| Special Design Features | [Z] Without |
| Certificates | [Z] Without |
| Additional Ordering Info | [Z2] Without |
| Accuracy Class | [3] Class 1.6 |
| Movement | [0] Stainless Steel |
| Thread Protection | [1] With Thread Protection |
| Pressure Gauge Standard | [I] International (Std Europe) |
| Logo Options | [ZZZZZ] |
| Serial Number | [3] With Serial Number |
| Red Mark at | [Z] Without |
| Text for Dial | [Z] Without |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Model | PG23HP |
| Gauge: Dial Size | 6 in (160 mm) |
| Gauge: Scale Range | > 15,000 psi (1,000 bar) |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Fill Type | Dry, Liquid Filled / Fillable |
| Gauge: Product Unit of Measure | psi, bar, MPa, kg/cm2 |
| Gauge: Process Connection Size | G 1/2 B, M20 x 1.5, 9/16 - 18 UNF Female, 5/8 - 18 UNF Female, M16 x 1.5 Female, 9/16 - 18 UNF Male, M14 x 1.5 Male |
| Gauge: Process Connection Location | Lower Mount |
| Gauge: Process Connection Type | Left Hand |
| Gauge: Accuracy | ±2% |
| Gauge: Ingress Protection | IP 65, IP 66, IP 67, IP 54 |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Laminated Safety Glass |
