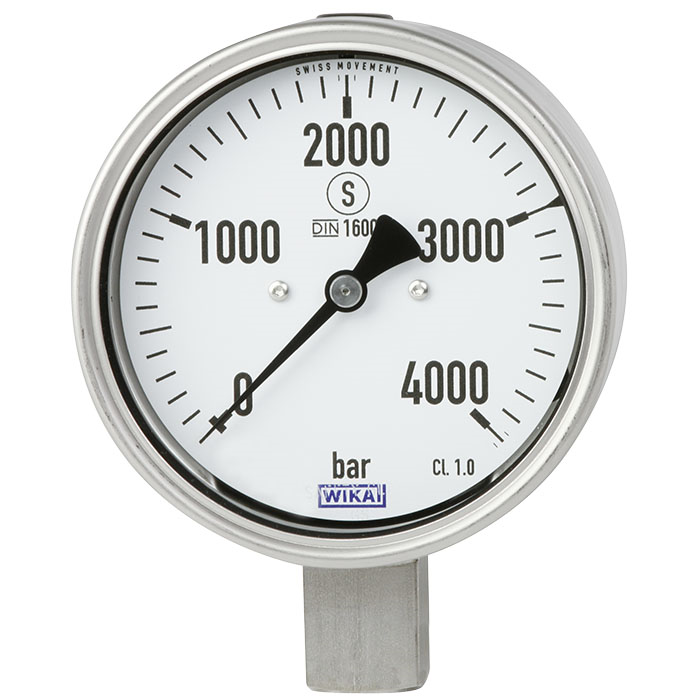

Wika PG23HP-P Series 6" HD High Pressure Gauge w/Safety Pattern
|
Manufacturer Product Code PG23HP-P4-D-5G-F-PG621Z-GD-UZHZCZZZZZ-ZZZ2L13D2IYW01-UZZZZZZ23ZZZ |
Manufacturer Wika Instrument Lp |
|
MADE TO ORDER
|
Weight 0.01 lb(s) Datasheet |
PG23HP-P4 HD Pressure Gauge
Specifications
| Wika PG23HP-P 6 | |
|---|---|
| Case Filling | [D-5G-F] Without or [F-5G-F] With |
| Scale Range | ￭ psi ￭ or [PG621] 0/30000 psi or [PG628] 0/40000 psi or [PG634] 0/50000 psi or [PG641] 0/60000 psi or [PG652] 0...75000 psi or [PG659] 0...85000 psi or ￭ bar ￭ or [BG620] 0/2000 bar or [BG625] 0/2500 bar or [BG630] 0/3000 bar or [BG640] 0/4000 bar or [BG650] 0/5000 bar or [BG660] 0/6000 bar or ￭ MPa ￭ or [EG620] 0/200 MPa or [EG625] 0/250 MPa or [EG630] 0/300 MPa or [EG640] 0/400 MPa or [EG650] 0...500 MPa or [EG660] 0/600 MPa or ￭ kg/cm2 ￭ or [KG620] 0/2000 kg/cm2 or [KG625] 0/2500 kg/cm2 or [KG629] 0/3000 kg/cm2 or [KG639] 0/4000 kg/cm2 or [KG659] 0/6000 kg/cm2 |
| 2nd Scale | [Z] Without or [B] bar or [P] psi or [E] MPa or [K] kg/cm2 |
| Process Connection | [GD] G 1/2 B or [MI] M20 x 1.5 or [VV] 9/16-18 UNF Female, Autoclave Engineers F-250-C or [JO] 5/8-18 UNF Female, Autoclave Engineers F-312-C150 or [VO] M16 x 1,5 Female, Nova Swiss or [UI] 9/16-18 UNF LH male or [VQ] M14 x 1,5 LH Male |
| Mounting Flange / Bracket | [ZH] Without or [SH] SS Surface Mounting Lugs or [MH] SS Front Flange or [F] SS Front Flange, Polished (Standard) |
| Restrictor | [Z] Without or [R] SS, Orifice 0.3 mm (0.012 in) or [Q] SS, D 0.6 or [J] SS Pressfit D 0,3 or [I] SS Screwed D 0,6 |
| Pointer | [C] Standard Pointer or [A] Adjustable Pointer |
| Set / Drag Pointer | [ZZZZ-ZZZ2] Without or [AZZZ-ZZZ2] Red Mark Pointer on Dial or [RZZZ-ZZZ2] Externally Adjustable Red Set Pointer on Window |
| Accuracy Class | [K] ± .5% (ASME B40.100 2A) or [L] ± 1% (ASME B40.100 Grade 1A) or [I] ± 2/1/2% (ASME B40.100 Grade A) |
| Overpressure Safety | [13] Full Scale Value or [B3] Vacuum Down to -1 bar |
| Case Surface | [D] Bare or [5] Epoxy Coated or [6] Bare Case / Polished Ring |
| Case Filling | [2] Without or [1] Prepared for Filling or [D] Silicon Oil, 50 cSt |
| Ingress Protection | [I] IP 65 or [K] IP 66 or [L] IP 67 or [F] IP 54 |
| Permissible Medium Temp | [Y] + 100 °C or [3] + 200 °C |
| Permissible Ambient Temp | [W01-U] -40 ... +60 °C or [G01-U] -20 ... +60 °C |
| Color for Inner Scale | [ZZZZZZ] Without or [CZZZZZ] Red or [AZZZZZ] Black |
| Manufacturer Logo | [2] *WIKA®* or [E] *WIKA®* w/o QR-Code |
| Stop Pin on Dial | [ZZZ] Without or [2ZZ] At 6 O'Clock |
| Nominal Size | [F] 6" |
| Connector Location | [U] Lower Mount |
| Window | [H] Laminated Safety Glass |
| Special Design Features | [Z] Without |
| Certificates | [Z] Without |
| Additional Ordering Info | [ZZ-ZZZ2] Without |
| Case Material | [3] 304 SS (Standard) |
| Movement | [0] Stainless Steel |
| Thread Protection | [1] With Thread Protection |
| Pressure Gauge Standard | [U] US-Standard |
| Logo Options | [ZZZZZ] |
| Serial Number | [3] With Serial Number |
| Red Mark at | [Z] Without |
| Text for Dial | [Z] Without |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Model | PG23HP |
| Gauge: Dial Size | 6 in (160 mm) |
| Gauge: Scale Range | > 15,000 psi (1,000 bar) |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Fill Type | Dry, Liquid Filled / Fillable |
| Gauge: Product Unit of Measure | psi, bar, MPa, kg/cm2 |
| Gauge: Process Connection Size | G 1/2 B, M20 x 1.5, 9/16 - 18 UNF Female, 5/8 - 18 UNF Female, M16 x 1.5 Female, 9/16 - 18 UNF Male, M14 x 1.5 Male |
| Gauge: Process Connection Location | Lower Mount |
| Gauge: Process Connection Type | Left Hand |
| Gauge: Accuracy | ±0.5%, ±1%, ±2% |
| Gauge: Ingress Protection | IP 65, IP 66, IP 67, IP 54 |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Laminated Safety Glass |
