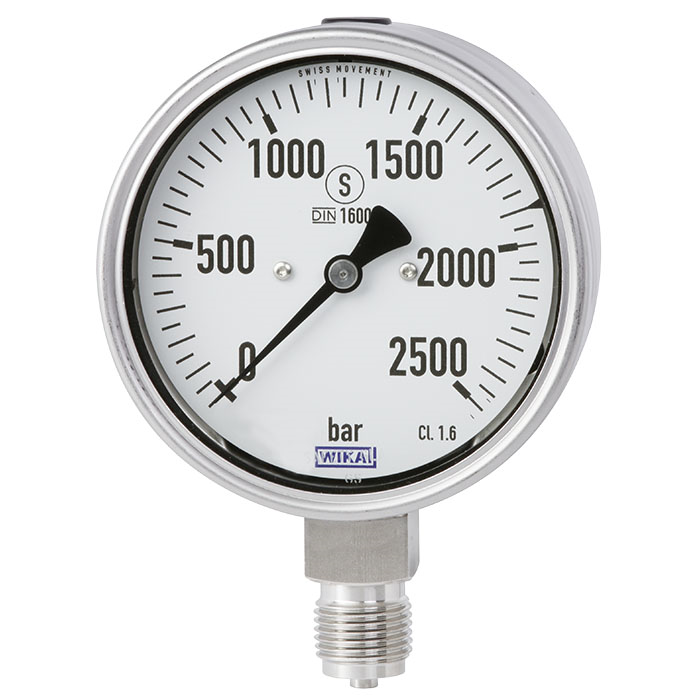

Wika PG23HP-S Series 4" SS High Pressure Gauge w/Safety Pattern

https://www.pressureworx.com/web/image/product.template/544106/image_1920?unique=d25f60f
(0 review)

The Wika PG23HP-S Series SS High Pressure Gauge with Safety Pattern is designed for high-pressure applications involving liquid media, such as water and hydraulic oil. This gauge excels in environments requiring high-pressure generation, high-pressure cleaning, and water jet cutting, as well as on test benches for hydraulic components.


Engineered to meet the stringent requirements of the DIN 16001 high-pressure standard, the PG23HP-S features a robust safety pressure gauge with a solid baffle wall. The wetted parts are constructed from durable stainless steel 316L, ensuring exceptional longevity and performance under static pressure profiles. Available in scale ranges from 0 to 2,000 bar, 0 to 2,500 bar, and up to 3,000 bar, this gauge is equipped to handle a variety of high-pressure needs.


The safety version of the PG23HP-S includes laminated safety glass, a solid baffle wall between the measuring system and the dial, and a blow-out back. This design ensures that in the event of a failure, the operator is protected from any media or components, which can only be ejected through the back of the instrument.


The PG23HP-S’s all-welded construction guarantees a long service life and a permanent seal, with the option to increase resistance to shock and vibration through case filling. Branom Instrument Co. stands as the premier source for this reliable and high-performing pressure gauge, providing unmatched expertise and service.


Order Code Prefix: PG23HP-S3-

672.98 672.9817499999999 USD 712.15

712.15

Not Available For Sale

  • Case Filling
  • Nominal Size
  • Scale Range
  • 2nd Scale
  • Process Connection
  • Connector Location
  • Mounting Flange / Bracket
  • Window
  • Restrictor
  • Pointer
  • Set / Drag Pointer
  • Special Design Features
  • Certificates
  • Additional Ordering Info
  • Accuracy Class
  • Overpressure Safety
  • Case Material
  • Case Surface
  • Case Filling
  • Special Measuring Element
  • Ingress Protection
  • Permissible Medium Temp
  • Permissible Ambient Temp
  • Movement
  • Thread Protection
  • Pressure Gauge Standard
  • Color for Inner Scale
  • Logo Options
  • Manufacturer Logo
  • Serial Number
  • Stop Pin on Dial
  • Red Mark at
  • Text for Dial
  • Gauge: Brand
  • Gauge: Type
  • Gauge: Model
  • Gauge: Dial Size
  • Gauge: Scale Range
  • Gauge: Measuring Principle
  • Gauge: Fill Type
  • Gauge: Fill Type
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Location
  • Gauge: Process Connection Location
  • Gauge: Process Connection Type
  • Gauge: Accuracy
  • Gauge: Ingress Protection
  • Gauge: Ingress Protection
  • Gauge: Ingress Protection
  • Gauge: Ingress Protection
  • Gauge: Case Material
  • Gauge: Window

This combination does not exist.

Specifications

Wika PG23HP-S 4
Case Filling [D-5H-E] Without, [F-5H-E] With
Scale Range ■ psi ■, [PG621] 0/30000 psi, [PG628] 0/40000 psi, ■ bar ■, [BG620] 0/2000 bar, [BG625] 0/2500 bar, [BG630] 0/3000 bar, ■ MPa ■, [EG620] 0/200 MPa, [EG625] 0/250 MPa, [EG630] 0/300 MPa, ■ kg/cm2 ■, [KG620] 0/2000 kg/cm2, [KG625] 0/2500 kg/cm2, [KG629] 0/3000 kg/cm2
2nd Scale [Z] Without, [B] bar, [P] psi, [E] MPa, [K] kg/cm2
Process Connection [GD] G 1/2 B, [MI] M20 x 1.5, [VV] 9/16-18 UNF Female, Autoclave Engineers F-250-C, [JO] 5/8-18 UNF Female, Autoclave Engineers F-312-C150, [VO] M16 x 1,5 Female, Nova Swiss, [UI] 9/16-18 UNF LH male, [VQ] M14 x 1,5 LH Male
Mounting Flange / Bracket [ZH] Without, [SH] SS Surface Mounting Lugs, [MH] SS Front Flange, [FH] SS Front Flange, Polished (Standard)
Restrictor [Z] Without, [R] SS, Orifice 0.3 mm (0.012 in), [Q] SS, D 0.6, [J] SS Pressfit D 0,3, [I] SS Screwed D 0,6
Pointer [C] Standard Pointer, [A] Adjustable Pointer
Set / Drag Pointer [ZZZZZ-ZZZ2I] Without, [AZZZZ-ZZZ2I] Red Mark Pointer on Dial, [RZZZZ-ZZZ2I] Externally Adjustable Red Set Pointer on Window
Overpressure Safety [1] Full Scale Value, [B] Vacuum Down to -1 bar
Case Material [3] 304 SS (Standard), [E] 316Ti SS
Case Surface [D] Bare, [5] Epoxy Coated, [6] Bare Case / Polished Ring
Case Filling [2Z] Without, [1Z] Prepared for Filling, [DZ] Silicon Oil, 50 cSt
Ingress Protection [I] IP 65, [K] IP 66, [L] IP 67, [F] IP 54
Permissible Medium Temp [Y] + 100 °C, [3] + 200 °C
Permissible Ambient Temp [W01-U] -40 ... +60 °C, [G01-U] -20 ... +60 °C
Color for Inner Scale [ZZZZZZ] Without, [CZZZZZ] Red, [AZZZZZ] Black
Stop Pin on Dial [ZZZ] Without, [2ZZ] At 6 O'Clock
Nominal Size [E] 4"
Connector Location [U] Lower Mount
Window [H] Laminated Safety Glass
Special Design Features [Z] Without
Certificates [Z] Without
Additional Ordering Info [ZZ-ZZZ2] Without
Accuracy Class [3] Class 1.6
Special Measuring Element [Z] Without
Movement [0] Stainless Steel
Thread Protection [1] With Thread Protection
Pressure Gauge Standard [I] International (Std Europe)
Logo Options [ZZZZZ]
Manufacturer Logo [1] *WIKA*
Serial Number [1] On Label
Red Mark at [Z] Without
Text for Dial [Z] Without
Gauge Features
Gauge: Brand Wika
Gauge: Type Dial Indicating Gauge
Gauge: Model PG23HP
Gauge: Dial Size 4 in (100 mm)
Gauge: Scale Range > 15,000 psi (1,000 bar)
Gauge: Measuring Principle Bourdon Tube
Gauge: Fill Type Dry, Liquid Filled / Fillable
Gauge: Product Unit of Measure psi, bar, MPa, kg/cm2
Gauge: Process Connection Size G 1/2 B, M20 x 1.5, 9/16 - 18 UNF Female, 5/8 - 18 UNF Female, M16 x 1.5 Female, 9/16 - 18 UNF Male, M14 x 1.5 Male
Gauge: Process Connection Location Lower Mount, Lower Back Mount
Gauge: Process Connection Type Left Hand
Gauge: Accuracy ±2%
Gauge: Ingress Protection IP 65, IP 66, IP 67, IP 54
Gauge: Case Material Stainless Steel
Gauge: Window Laminated Safety Glass
