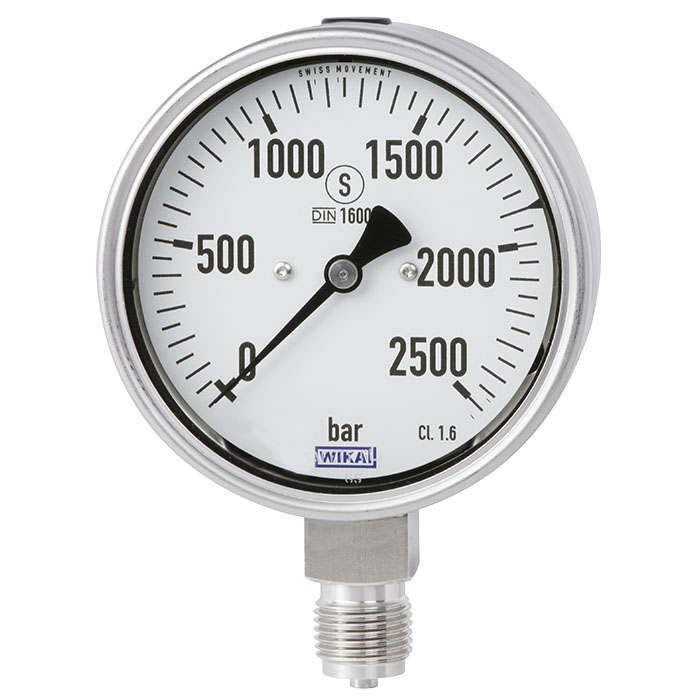

PG23HP-S Series 4" SS High Pressure Gauge w/Safety Pattern
|
Manufacturer Product Code PG23HP-**-D-5H-E-PG621Z-GD-UZHZCZZZZZ-ZZZ2313D2ZIYW01-IZZZZZZ11ZZZ |
Manufacturer Wika Instrument Lp |
|
MADE TO ORDER
|
Weight 3.5 lb(s) Datasheet |
PG23HP-S High Pressure Gauge
Specifications
| Wika PG23HP-S 4 | |
|---|---|
| Case Filling | [D-5H-E] Without or [F-5H-E] With |
| Scale Range | ￭ psi ￭ or [PG621] 0/30000 psi or [PG628] 0/40000 psi or ￭ bar ￭ or [BG620] 0/2000 bar or [BG625] 0/2500 bar or [BG630] 0/3000 bar or ￭ MPa ￭ or [EG620] 0/200 MPa or [EG625] 0/250 MPa or [EG630] 0/300 MPa or ￭ kg/cm2 ￭ or [KG620] 0/2000 kg/cm2 or [KG625] 0/2500 kg/cm2 or [KG629] 0/3000 kg/cm2 |
| 2nd Scale | [Z] Without or [B] bar or [P] psi or [E] MPa or [K] kg/cm2 |
| Process Connection | [GD] G 1/2 B or [MI] M20 x 1.5 or [VV] 9/16-18 UNF Female, Autoclave Engineers F-250-C or [JO] 5/8-18 UNF Female, Autoclave Engineers F-312-C150 or [VO] M16 x 1,5 Female, Nova Swiss or [UI] 9/16-18 UNF LH male or [VQ] M14 x 1,5 LH Male |
| Mounting Flange / Bracket | [ZH] Without or [SH] SS Surface Mounting Lugs or [MH] SS Front Flange or [FH] SS Front Flange, Polished (Standard) |
| Restrictor | [Z] Without or [R] SS, Orifice 0.3 mm (0.012 in) or [Q] SS, D 0.6 or [J] SS Pressfit D 0,3 or [I] SS Screwed D 0,6 |
| Pointer | [C] Standard Pointer or [A] Adjustable Pointer |
| Set / Drag Pointer | [ZZZZZ-ZZZ2I] Without or [AZZZZ-ZZZ2I] Red Mark Pointer on Dial or [RZZZZ-ZZZ2I] Externally Adjustable Red Set Pointer on Window |
| Overpressure Safety | [1] Full Scale Value or [B] Vacuum Down to -1 bar |
| Case Material | [3] 304 SS (Standard) or [E] 316Ti SS |
| Case Surface | [D] Bare or [5] Epoxy Coated or [6] Bare Case / Polished Ring |
| Case Filling | [2Z] Without or [1Z] Prepared for Filling or [DZ] Silicon Oil, 50 cSt |
| Ingress Protection | [I] IP 65 or [K] IP 66 or [L] IP 67 or [F] IP 54 |
| Permissible Medium Temp | [Y] + 100 °C or [3] + 200 °C |
| Permissible Ambient Temp | [W01-U] -40 ... +60 °C or [G01-U] -20 ... +60 °C |
| Color for Inner Scale | [ZZZZZZ] Without or [CZZZZZ] Red or [AZZZZZ] Black |
| Stop Pin on Dial | [ZZZ] Without or [2ZZ] At 6 O'Clock |
| Nominal Size | [E] 4" |
| Connector Location | [U] Lower Mount |
| Window | [H] Laminated Safety Glass |
| Special Design Features | [Z] Without |
| Certificates | [Z] Without |
| Additional Ordering Info | [ZZ-ZZZ2] Without |
| Accuracy Class | [3] Class 1.6 |
| Special Measuring Element | [Z] Without |
| Movement | [0] Stainless Steel |
| Thread Protection | [1] With Thread Protection |
| Pressure Gauge Standard | [I] International (Std Europe) |
| Logo Options | [ZZZZZ] |
| Manufacturer Logo | [1] *WIKA* |
| Serial Number | [1] On Label |
| Red Mark at | [Z] Without |
| Text for Dial | [Z] Without |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Model | PG23HP |
| Gauge: Dial Size | 4 in (100 mm) |
| Gauge: Scale Range | > 15,000 psi (1,000 bar) |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Fill Type | Dry, Liquid Filled / Fillable |
| Gauge: Product Unit of Measure | psi, bar, MPa, kg/cm2 |
| Gauge: Process Connection Size | G 1/2 B, M20 x 1.5, 9/16 - 18 UNF Female, 5/8 - 18 UNF Female, M16 x 1.5 Female, 9/16 - 18 UNF Male, M14 x 1.5 Male |
| Gauge: Process Connection Location | Lower Mount, Lower Back Mount |
| Gauge: Process Connection Type | Left Hand |
| Gauge: Accuracy | ±2% |
| Gauge: Ingress Protection | IP 65, IP 66, IP 67, IP 54 |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Laminated Safety Glass |
