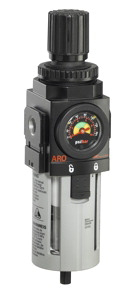

ARO Piggyback Air Filter/Regulator-Gauge 1/2", 0-140PSI
ARO P39344-600 piggyback air filter/regulators with flush mount gauge are used for general purpose compressed air filtering and pressure control. The compact design combining the filter and regulator into one integral unit saves space, set-up time, and piping costs. Self-relieving regulator features a pull to adjust and push to lock pressure adjustment knob. The unit has an aluminum body and polycarbonate bowl with bowl guard. Filter with 5 micron element removes airborne solid and liquid contaminants from the airline. Panel mounting nut is included with each unit (max. 0.176" panel thickness, M42x1.5 thread).
Features
- Port Size: 1/2" NPT
- Gauge: Flush mount design
- Pressure Range: 0-140 PSI
- Flow Capacity: 172 SCFM (100 PSIG Supply, 90 PSI set)
- Maximum Inlet Pressure: 150 PSI
- Operating Temperature Range: 23 to 125 °F
- Filter Element: 5 micron
- Body/Knob: Aluminum/acetal
- Bowl: Polycarbonate with nylon bowl guard
- Bowl Capacity: 2.3 oz.
- Diaphragm: Nitrile/nylon
- Bowl Drain: Manual (optional - automatic drain)
ARO P39344-600 piggyback air filter/regulators with flush mount gauge are used for general purpose compressed air filtering and pressure control. The compact design combining the filter and regulator into one integral unit saves space, set-up time, and piping costs. Self-relieving regulator features a pull to adjust and push to lock pressure adjustment knob. The unit has an aluminum body and polycarbonate bowl with bowl guard. Filter with 5 micron element removes airborne solid and liquid contaminants from the airline. Panel mounting nut is included with each unit (max. 0.176" panel thickness, M42x1.5 thread).
Features
- Port Size: 1/2" NPT
- Gauge: Flush mount design
- Pressure Range: 0-140 PSI
- Flow Capacity: 172 SCFM (100 PSIG Supply, 90 PSI set)
- Maximum Inlet Pressure: 150 PSI
- Operating Temperature Range: 23 to 125 °F
- Filter Element: 5 micron
- Body/Knob: Aluminum/acetal
- Bowl: Polycarbonate with nylon bowl guard
- Bowl Capacity: 2.3 oz.
- Diaphragm: Nitrile/nylon
- Bowl Drain: Manual (optional - automatic drain)
Specifications
| Regulator: Brand | Marsh-Bellofram |
| Regulator: Series | 2000G |
| Regulator: Pipe Size | 1/2 NPT |
| Regulator: Adjustment Range | 0-140 PSI |
| Regulator: Max Flow Capacity | 172 SCFM |
| Regulator: Max Inlet Pressure | 150 PSI |
| Regulator: Bowl Type | Poly |
