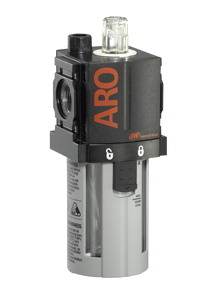

Representative photo. Please check item description for details.
Description
ARO L36221-100 mist-type air line lubricators help ensure that pneumatic devices receive the required lubrication to maintain peak performance, reduce wear and prolong service life. The fine thread adjustable needle on top of the transparent sight dome is provided to easily set the oil drip rate. Quick change polyethylene bowl with bowl guard provides easy bowl removal and viewing of the oil level. For best results, install lubricators close to the downstream application.
Features
- Port Size: 1/4" NPT
- Flow Capacity: 51 SCFM (90 PSI inlet, 7 PSI drop)
- Maximum Inlet Pressure: 150 PSI
- Operating Temperature Range: 23 to 125 °F
- Bowl Capacity: 1.9 oz.
- Body: Aluminum
- Bowl: Polyethylene with nylon bowl guard
- Sight Dome: Nylon
- Seals: Nitrile
Specifications
| Regulator: Brand | Marsh-Bellofram |
| Regulator: Series | 1500 |
| Regulator: Pipe Size | 1/4 NPT |
| Regulator: Max Flow Capacity | 51 SCFM |
| Regulator: Max Inlet Pressure | 150 PSI |
| Regulator: Bowl Type | Poly |
| Regulator: Bowl Capacity | 1.9 oz |
