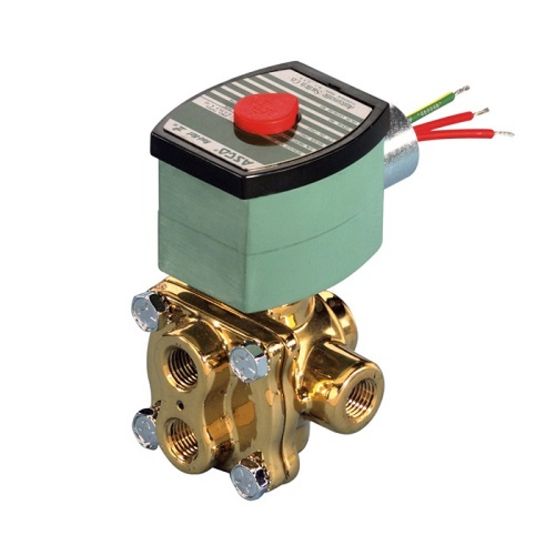

Representative photo. Please check item description for details.

342 Series 4-Way Solenoid Valve (8342), 1/4" NPT, 120 VAC, Brass, 4 Way

https://www.branom.com/web/image/product.template/181192/image_1920?unique=29d1258
(0 review)

Manufacturer: Asco LP

Mfg Product Code: EF8342G001AC120/60D

Weight: 2.4 lb(s)

On Hand: 0

Solenoid Valve, 1/4" NPT, 120 VAC, 4 Way

The ASCO Series 342-S, also known as 8342, is a line of high-flow, slide-style 4-way valves available with single or dual solenoids. Its direct-acting operation and high-flow construction make it ideal for analytic and diagnostic equipment, biofuels, dust collector systems, heating equipment, and refining applications.

Features

  • Body Material: Brass
  • Flow (Cv) / Flow (Kv): 0.70 / 0.60
  • Function: 4 way
  • Pipe/Port Type & Size: NPT 1/4
  • Valve Actuation: Solenoid - Direct Acting
  • Media: Air, Inert Gas, Water, Light Oil
  • Product Weight: 2.40 lbs
  • Order Code: 21422
  • Kit Number: 306191
  • Coil Class: FB
  • Coil Number: 272614-132-D
  • Min to Max Ambient Temperature: 32 - 125 °F
  • Min to Max Fluid Temperature: 32 - 160 °F
  • Orifice Size: 3/16 in
  • Voltage & Frequency: 120 Volts AC with 60 Hz
  • Watt Rating: 20.1 W
  • Item Status: Active
  • Lead Length: 18 inch
  • Carton Note: 1/4 X 3/16 4W BRASS 20.1/F AC
  • Holding Current (VA): 45
  • Seating Elastomer: PTFE
  • Mounting Direction: Any:

567.00 567.0 USD 600.00

600.00

Not Available For Sale

  • Brand
  • Mounting Direction
  • Process Connection Type
  • Flow Coefficient
  • Process Connection Size
  • Measurement Minimum
  • Input Voltage
  • Function
  • Frequency
  • Body Material
  • Lead Length
  • NEMA / UL
  • Seal Material

This combination does not exist.

Specifications

Brand Asco
Mounting Direction Any
Process Connection Type NPT
Flow Coefficient 0.70 Cv
Process Connection Size 1/4"
Measurement Minimum 0
Input Voltage 120 VAC
Function 4 Way
Frequency 60 Hz
Body Material Brass
Lead Length 18 in
NEMA / UL NEMA 3/3S/4/4X/6/6P/7/9
Seal Material PTFE
