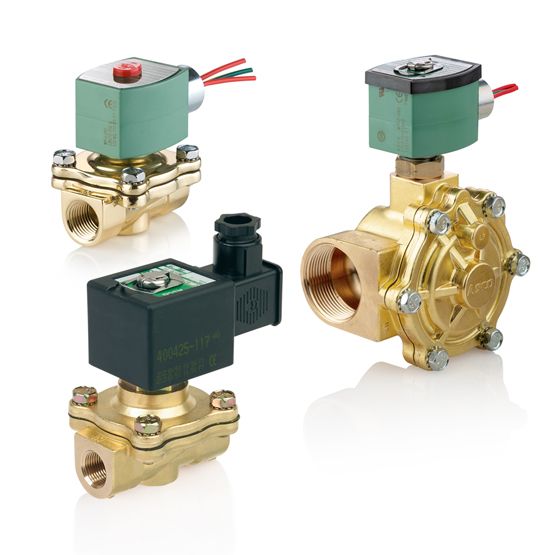

210 Series Solenoid Valve (8210), 1" NPT, 120 VAC, Stainless Steel, 2 Way-2/2 NC

The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.

Features

Body Material: Stainless Steel
Flow (Cv) / Flow (Kv): 13.00 / 11.24
Function: 2 way - 2/2 Normally Closed
Pipe/Port Type & Size: NPT 1
Valve Actuation: Solenoid
Media: Air, Inert Gas, Water, Light Oil
Order Code: 21744
Kit Number: 302329
Coil Class: FT
Coil Number: 272614-032-D
Min to Max Ambient Temperature: 32 - 125 °F
Orifice Size: 1 in
Voltage & Frequency: 120 Volts AC with 60 Hz
Watt Rating: 16.1 W
Item Status: Active
Lead Length: 18 inch
Carton Note: 1 X 1 2NC S.S. 16.1/F AC
Holding Current (VA): 35
Seating Elastomer: NBR
Mounting Direction: Any:

Manufacturer Product Code EF8210G089AC120/60D	Manufacturer Asco LP
MADE TO ORDER	Weight 3.42 lb(s) Datasheet

Valve: Brand	Asco
Valve: Pipe Size	1 in
Valve: Actuation	Solenoid
Valve: Body Material	Stainless Steel
Valve: Flow Factor (Cv)	13.5
Valve: Type	Automated
Valve: Max Temperature °F	125
Valve: Mounting Position	Any
Valve: Seal Material	NBR
Valve: Function	2-Way Normally Closed

210 Series Solenoid Valve (8210), 1" NPT, 120 VAC, Stainless Steel, 2 Way-2/2 NC

$ 1,494.05 1494.05 USD $ 1,581.00

$ 1,581.00

Not Available For Sale

Specifications

Customer Reviews
