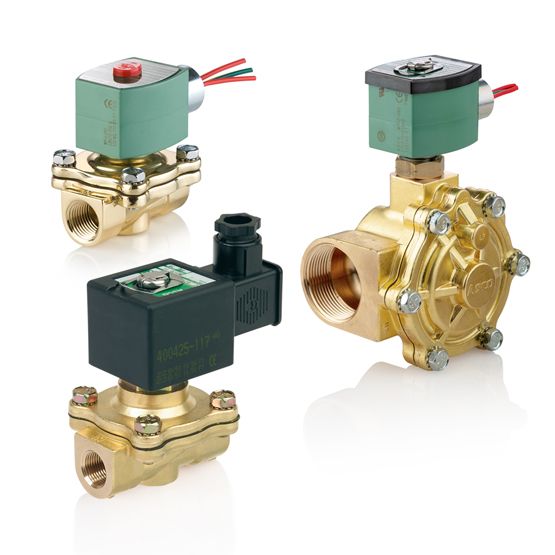

210 Series Solenoid Valve (8210), 3/4" NPT, 120 VAC, Brass, 2 Way-2/2 NC

https://www.pressureworx.com/web/image/product.template/560342/image_1920?unique=2f467f3
(0 review)

The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.

Features

  • Body Material: Brass
  • Flow 5Cv (4.33Kv)
  • Function: 2 way - 2/2 Normally Closed
  • Pipe/Port Type & Size: NPT 3/4
  • Valve Actuation: Solenoid
  • Media: Fuel Gas
  • Product Weight: 2.29 lbs
  • Kit Number: 304076
  • Coil Class: FT
  • Coil Number: 238614-032-D
  • Min to Max Ambient Temperature: 32 - 125 °F
  • Min to Max Fluid Temperature: 32 - 125 °F
  • Orifice Size: 5/8 in
  • Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
  • Watt Rating: 10.1 W
  • Item Status: Active
  • Lead Length: 18 inch
  • Carton Note: 3/4 X 3/4 2NC BRASS 10.1/F AC
  • Seating Elastomer: NBR
  • Mounting Direction: Any:

467.12 467.12295 USD 494.31

494.31

Not Available For Sale

    This combination does not exist.


    Product Datasheets

    Datasheet 1

    Datasheet 2

    The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.

    Features

    • Body Material: Brass
    • Flow 5Cv (4.33Kv)
    • Function: 2 way - 2/2 Normally Closed
    • Pipe/Port Type & Size: NPT 3/4
    • Valve Actuation: Solenoid
    • Media: Fuel Gas
    • Product Weight: 2.29 lbs
    • Kit Number: 304076
    • Coil Class: FT
    • Coil Number: 238614-032-D
    • Min to Max Ambient Temperature: 32 - 125 °F
    • Min to Max Fluid Temperature: 32 - 125 °F
    • Orifice Size: 5/8 in
    • Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
    • Watt Rating: 10.1 W
    • Item Status: Active
    • Lead Length: 18 inch
    • Carton Note: 3/4 X 3/4 2NC BRASS 10.1/F AC
    • Seating Elastomer: NBR
    • Mounting Direction: Any:
