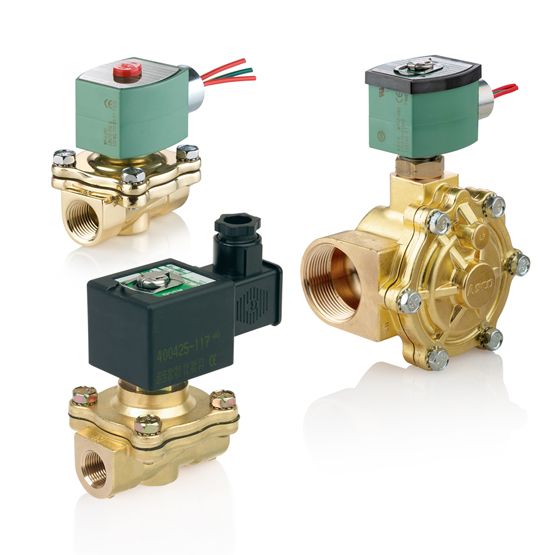

210 Series Solenoid Valve (8210), 1/2" NPT, 120 VAC, Brass, 2 Way-2/2 NC

The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.

Features

Body Material: Brass
Flow (Cv) / Flow (Kv): 3.60 / 3.11
Function: 2 way - 2/2 Normally Closed
Pipe/Port Type & Size: NPT 1/2
Valve Actuation: Solenoid
Media: Fuel Gas
Product Weight: 2.29 lbs
Kit Number: 304076
Coil Class: FT
Coil Number: 238614-032-D
Min to Max Ambient Temperature: 32 - 125 °F
Min to Max Fluid Temperature: 32 - 125 °F
Orifice Size: 5/8 in
Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
Watt Rating: 10.1 W
Item Status: Active
Lead Length: 18 inch
Carton Note: 1/2 X 5/8 2NC BRASS 10.1/F AC
Seating Elastomer: NBR
Mounting Direction: Any:

Manufacturer Product Code EF8210G075AC120/60,110/50D	Manufacturer Asco LP
MADE TO ORDER	Weight 2.29 lb(s) Datasheet Other Info

Valve: Brand	Asco
Valve: Pipe Size	1/2 in
Valve: Actuation	Solenoid
Valve: Body Material	Copper Alloy
Valve: Flow Factor (Cv)	3.6
Valve: Type	Automated
Valve: Max Temperature °F	125
Valve: Mounting Position	Any
Valve: Seal Material	NBR
Valve: Function	2-Way Normally Closed

210 Series Solenoid Valve (8210), 1/2" NPT, 120 VAC, Brass, 2 Way-2/2 NC

$ 397.21 397.21000000000004 USD $ 420.33

$ 420.33

Not Available For Sale
