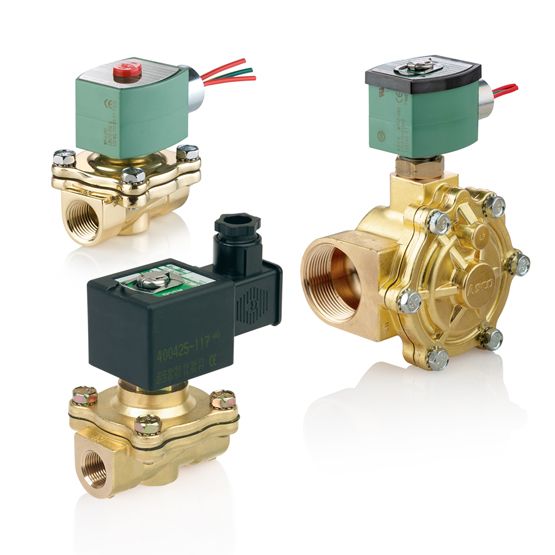

Representative photo. Please check item description for details.

210 Series Solenoid Valve (8210), 1/2" NPT, 120 VAC, Brass, 2 Way-2/2 NC

https://www.branom.com/web/image/product.template/219878/image_1920?unique=fc8cdd6
(0 review)
Manufacturer Product Code
EF8210G075AC120/60,110/50D
Manufacturer
Asco LP
MADE TO ORDER
Weight
2.29 lb(s)

Datasheet Other Info

Solenoid Valve, 1/2" NPT, 120 VAC, Brass, 2 Way-2/2 NC

397.21 397.21000000000004 USD 420.33

420.33

Not Available For Sale

  • Brand_Name
  • Mounting Direction
  • Process Connection Type
  • Flow Coefficient
  • Max Operating Temperature
  • Process Connection Size
  • Input Voltage
  • Watts
  • Function
  • Coil Class
  • Frequency
  • Body Material
  • Lead Length
  • NEMA / UL
  • Seal Material

This combination does not exist.


The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.

Features

  • Body Material: Brass
  • Flow (Cv) / Flow (Kv): 3.60 / 3.11
  • Function: 2 way - 2/2 Normally Closed
  • Pipe/Port Type & Size: NPT 1/2
  • Valve Actuation: Solenoid
  • Media: Fuel Gas
  • Product Weight: 2.29 lbs
  • Kit Number: 304076
  • Coil Class: FT
  • Coil Number: 238614-032-D
  • Min to Max Ambient Temperature: 32 - 125 °F
  • Min to Max Fluid Temperature: 32 - 125 °F
  • Orifice Size: 5/8 in
  • Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
  • Watt Rating: 10.1 W
  • Item Status: Active
  • Lead Length: 18 inch
  • Carton Note: 1/2 X 5/8 2NC BRASS 10.1/F AC
  • Seating Elastomer: NBR
  • Mounting Direction: Any:

Specifications

Brand_Name Asco
Mounting Direction Any
Process Connection Type NPT
Flow Coefficient 3.60 Cv
Max Operating Temperature 125 °F
Process Connection Size 1/2"
Input Voltage 120 VAC
Watts 10.1
Function 2 Way 2/2 Normally Closed
Coil Class FT
Frequency 60 Hz
Body Material Brass
Lead Length 18 in
NEMA / UL NEMA 1/2/3/3S/4/4X
Seal Material NBR
