210 Series Solenoid Valve (8210), 1/2" NPT, 120 VAC, Stainless Steel, 2 Way-2/2 NC (copy)

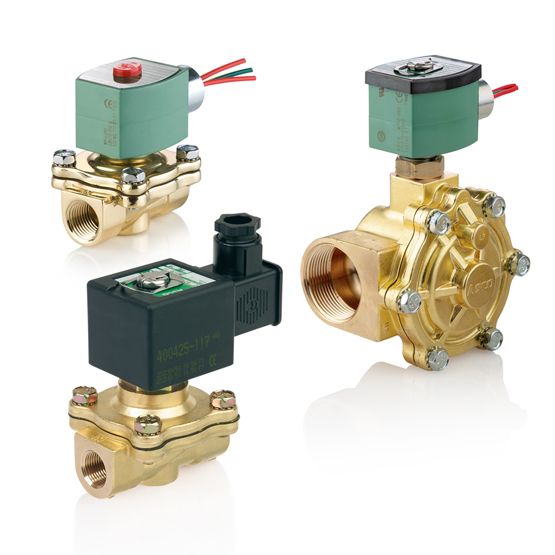

The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
Features
- Body Material: Stainless Steel
- Valve Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 1/2
- Valve Actuation: Solenoid
- Voltage & Frequency: 120 AC with 50 Hz
- Product Weight: 0.99 lbs
- Kit Number: 302327
- Coil Class: FT
- Coil Number: 238214-033-D
- Watt Rating: 8.1 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1/2 X 7/16 2NC S.S. 8.1/F AC:
Specifications
| Valve: Brand | Asco |
| Valve: Pipe Size | 1/2 in |
| Valve: Actuation | Solenoid, Solenoid |
| Valve: Body Material | Stainless Steel |
| Valve: Type | Automated |
| Valve: Seal Material | NBR |
| Valve: Function | 2-Way Normally Closed |
