$ 366.66
366.66
USD
$ 388.00
$ 388.00
Not Available For Sale
-
Valve: Actuation
-
Media
-
Flow (Cv / Kv)
-
Process Connection Type
-
Input Voltage
-
Function
-
Body Material
This combination does not exist.
1/4 X 5/32 2NC ST.ST.1.2 /H W

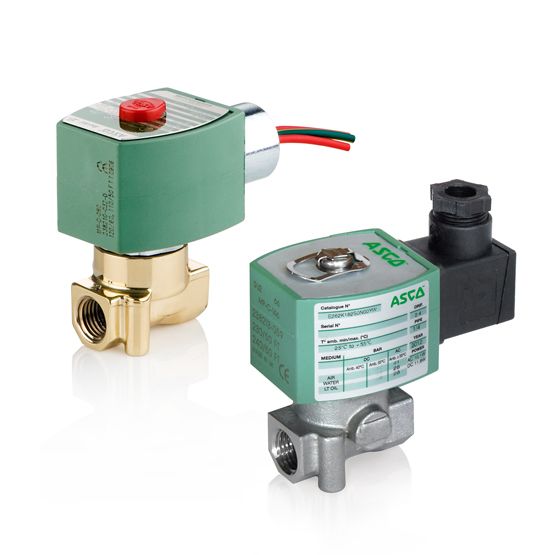

The ASCO Series 262/263, also known as 8262/8263, is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, and cryogenic fluids. The 262/263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others.
Features
- Resilient materials provide long service life and low internal leakage
- Welded core tube provides higher pressure ratings
- Wide range of elastomers for specialty service applications
- Wide range of pressure ratings, sizes, and resilient materials provides long service life and low internal leakage
- Reliable and proven in use design with high flow and pressure ratings
- Lead-free versions available for Safe Drinking Water Act compliance
- Low-temperature models control cryogenic fluids, including liquid nitrogen (-320° F/-194° C), liquid argon (-303° F/-184° C), and liquid oxygen (-297° F/-181° C)
- Mountable in any position
- Tapped mounting holes in body standard
- Wide range of standard AC and DC voltages
- A full range of globally approved explosion-proof enclosures are available with this series
- Small poppet valves allow tight shutoff
