Representative photo. Please check item description for details.

ARO Compact Filter-Regulator-Lubricator 1/4" 0-140PSI

https://www.branom.com/web/image/product.template/533630/image_1920?unique=55fc76f
(0 review)

Manufacturer: ARO/Ingersoll Rand

Mfg Product Code: C38221-800

Weight: 1.0 lb(s)

On Hand: 1

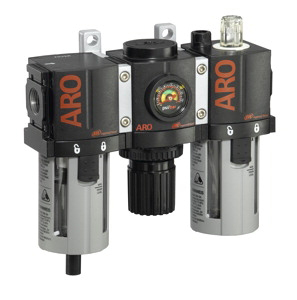

ARO C38221-800 air filter-regulator-lubricator combo unit with flush mount gauge is designed for general purpose air filtering, pressure control, and lubrication over a wide range of applications. The filter, regulator, and lubricator are connected by a unique modular mounting system which saves space, set-up time, and piping costs. Filter with 5 micron element removes airborne solids and liquid contaminants from the compressed air line. Self-relieving regulator features a pull to adjust and push to lock pressure adjustment knob. Easy to adjust oil-mist lubricator provides just the right amount of lubrication. Wall mounting brackets included.

Features

  • Port Size: 1/4" NPT
  • Gauge: Flush mount design
  • Adjustable Pressure Range: 0-140 PSI
  • Flow Capacity: 61 SCFM (100 PSI inlet, 90 PSI set)
  • Maximum Inlet Pressure: 150 PSI
  • Operating Temperature Range: 23 to 125 °F
  • Filter Element: 5 micron
  • Body: Aluminum
  • Adjustment Knob: Acetal - pull to adjust-push to lock
  • Filter Bowl: Polycarbonate with nylon guard 1.3 oz.
  • Lubricator Bowl: Polycarbonate with nylon guard 1.9 oz.
  • Diaphragm: Nitrile+nylon
  • Filter Bowl Drain: Manual flex drain (optional - automatic float drain)
  • Seals: Nitrile

255.75 255.75 USD 270.64

270.64

Not Available For Sale

    This combination does not exist.


    Product Datasheets

    Datasheet 1
