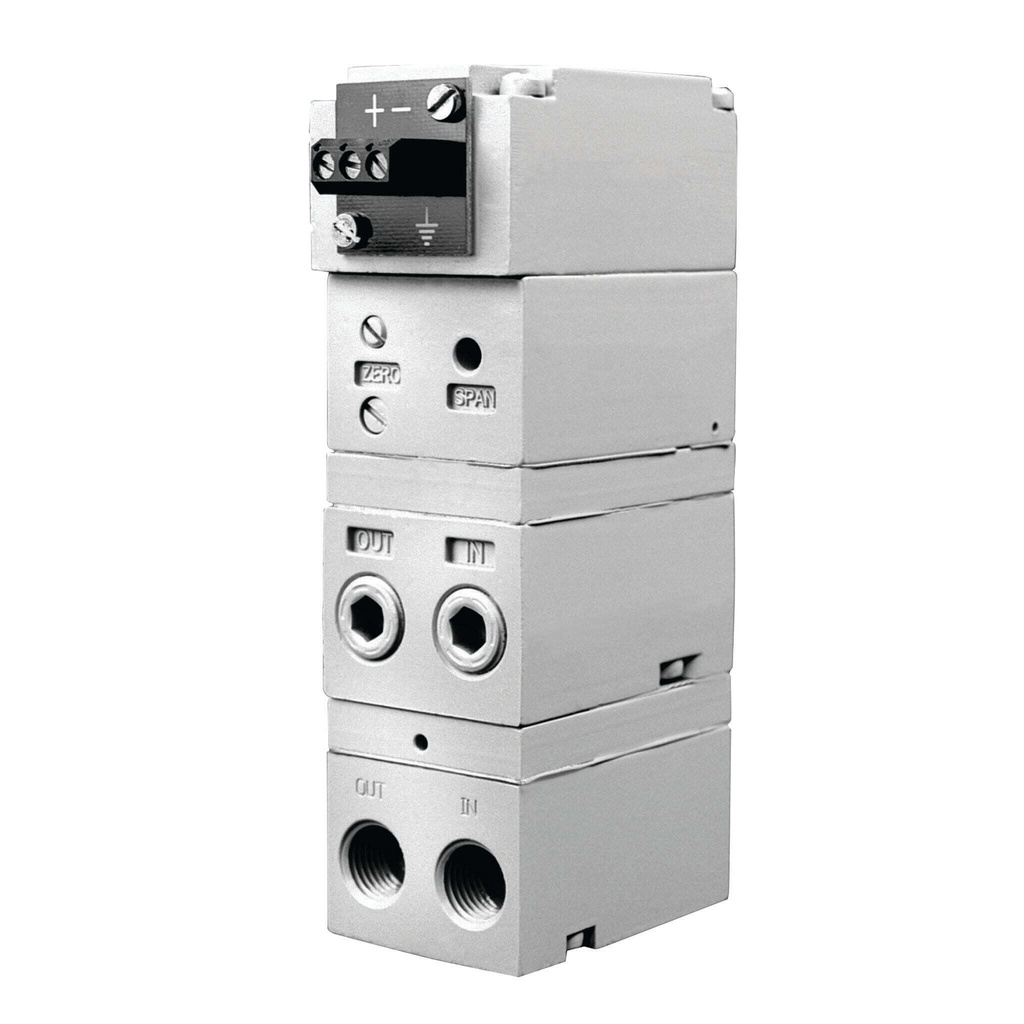

Bellofram T1500 Indoor/Gen Purpose Transducer, 1/4" NPT Port, 4-20 MA DC, 0-30 psig, 1/2" NPT Conn, Nitrile Elastomers
The T1500 is a new series of electropneumatic transducers that convert an electrical signal to a proportional pressure output. It provides precision electro-pneumatic control to actuators, valves, positioners, final control elements and is ideally used for high-flow control devices. The Type 1500's compact size and accessibility to ports and adjustments allow the unit to be installed in space-constrained locations or in a manifold for multi-device control.
The T1500 is a new series of electropneumatic transducers that convert an electrical signal to a proportional pressure output. It provides precision electro-pneumatic control to actuators, valves, positioners, final control elements and is ideally used for high-flow control devices. The Type 1500's compact size and accessibility to ports and adjustments allow the unit to be installed in space-constrained locations or in a manifold for multi-device control.
Specifications
| Transducer Features | |
|---|---|
| Transducer: Brand | Marsh-Bellofram |
| Transducer: Type | Electropneumatic |
| Transducer: Series | T1500 Indoor / Gen Purpose |
| Regulator Features | |
|---|---|
| Regulator: Brand | Marsh-Bellofram |
| Regulator: Series | T1500 |
| Regulator: Max Flow Capacity | 9 SCFM |
| Regulator: Pneumatic Output | 0-30 PSI |
| Regulator: Electrical Input Signal | 4-20mA |
| Regulator: Accuracy | 1.00% |
| Regulator: Electrical Connection | Conduit |
| Air Regulator Features | |
|---|---|
| Regulator: Pipe Size | 1/4 NPT |
