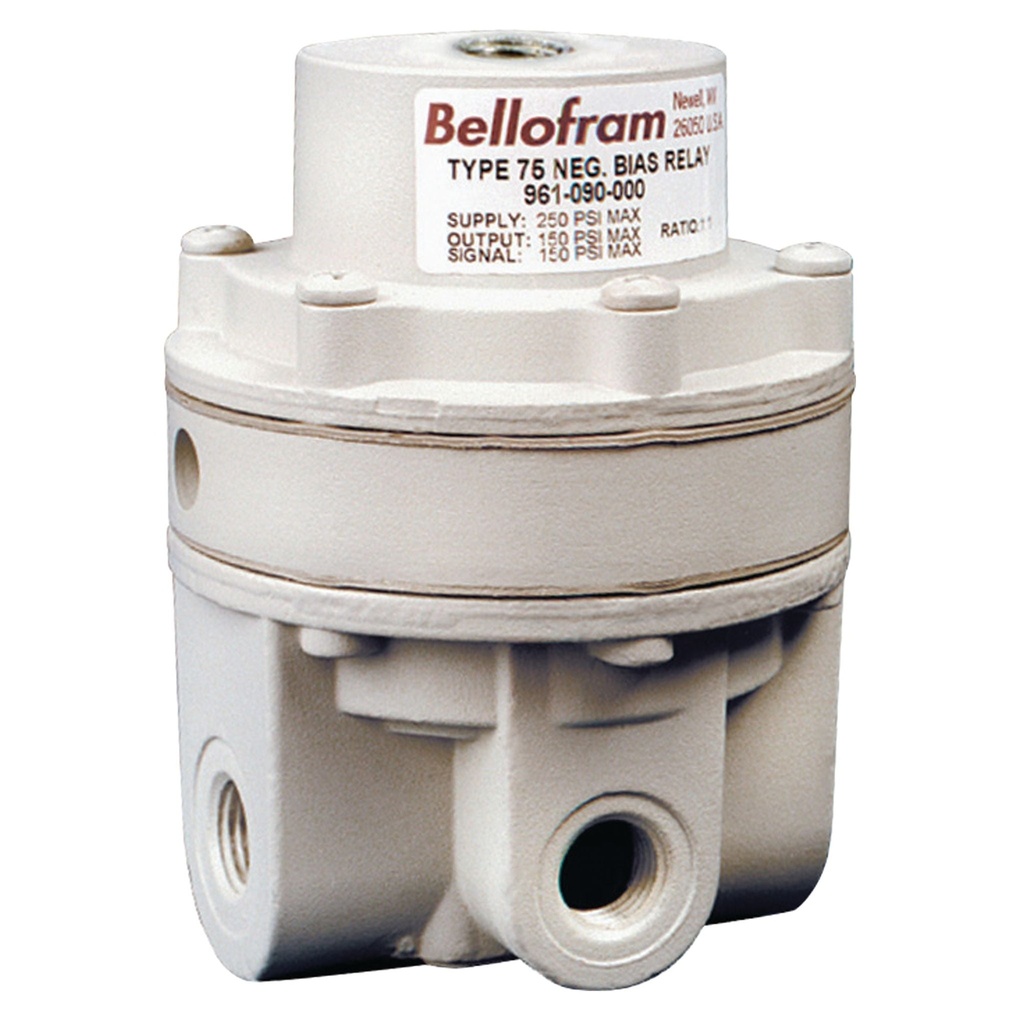

Bellofram T75 Precision Relay, 1:1 Ratio, 3/8" NPT, 0-150 PSI
The Type 75 relay uses signal pressure to accurately control output pressure over a wide range of flow and supply pressure variation. Under varying flow conditions output pressure is maintained by use of an aspirator tube, which adjusts the air supply valve opening in accordance with the flow velocity. A balanced supply valve, utilizing a rolling diaphragm, makes the relay virtually immune to changes in supply pressure. Maintenance is simple due to the unit construction, and the relay can be serviced without removing it from the line. Signal to output pressure ratios of 1:1, 1:2, 1:4 and 1:6 are available. Maximum output is 150 psig (10.3 BAR).
Features:
- Balanced Valve Design
- High Flow Capacity
- Field Serviceable
- Multiple Output Ratios
- Negative Biasing Option
- Can Be Disassembled and Serviced Without Removing from Line
Applications:
- Gas Flow Control
- Tensioning Control
- Clutch and Brake Controls
- Volume Boosting
- Dancer Roll Loading
- Calendar Roll Loading
- Cylinder Bucking Control
- Valve Motor Loading
- Electronic Control Applications (Negative Biasing Version)
The Type 75 relay uses signal pressure to accurately control output pressure over a wide range of flow and supply pressure variation. Under varying flow conditions output pressure is maintained by use of an aspirator tube, which adjusts the air supply valve opening in accordance with the flow velocity. A balanced supply valve, utilizing a rolling diaphragm, makes the relay virtually immune to changes in supply pressure. Maintenance is simple due to the unit construction, and the relay can be serviced without removing it from the line. Signal to output pressure ratios of 1:1, 1:2, 1:4 and 1:6 are available. Maximum output is 150 psig (10.3 BAR).
Features:
- Balanced Valve Design
- High Flow Capacity
- Field Serviceable
- Multiple Output Ratios
- Negative Biasing Option
- Can Be Disassembled and Serviced Without Removing from Line
Applications:
- Gas Flow Control
- Tensioning Control
- Clutch and Brake Controls
- Volume Boosting
- Dancer Roll Loading
- Calendar Roll Loading
- Cylinder Bucking Control
- Valve Motor Loading
- Electronic Control Applications (Negative Biasing Version)
Specifications
| Regulator Features | |
|---|---|
| Regulator: Brand | Marsh-Bellofram |
| Regulator: Type | Air Relay / Volume Booster |
| Regulator: Series | T75 |
| Regulator: Adjustment Range | 0-150 PSI |
| Regulator: Max Flow Capacity | 40 SCFM |
| Regulator: Max Inlet Pressure | 250 PSI |
| Air Regulator Features | |
|---|---|
| Regulator: Pipe Size | 3/8 NPT |
