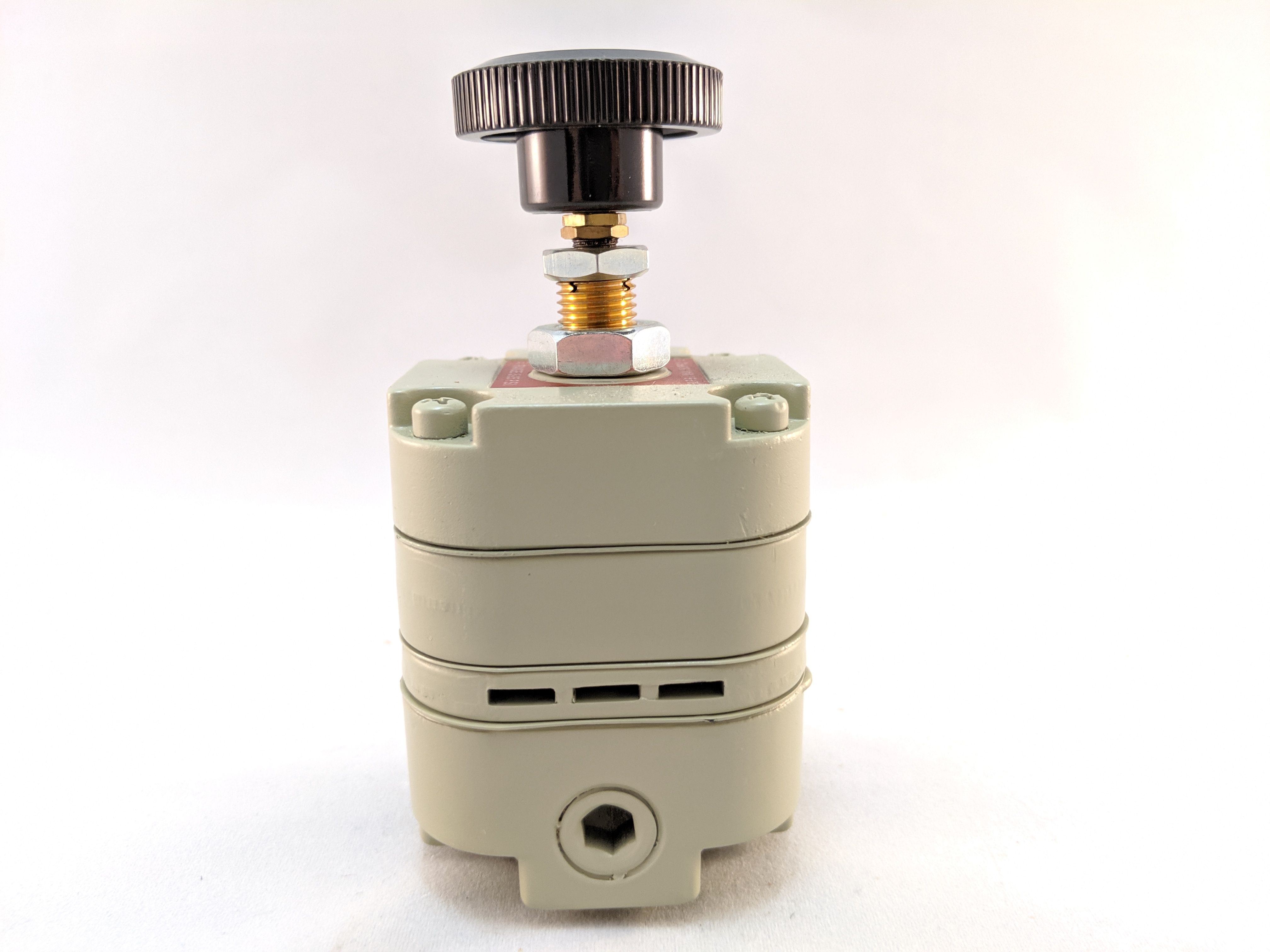

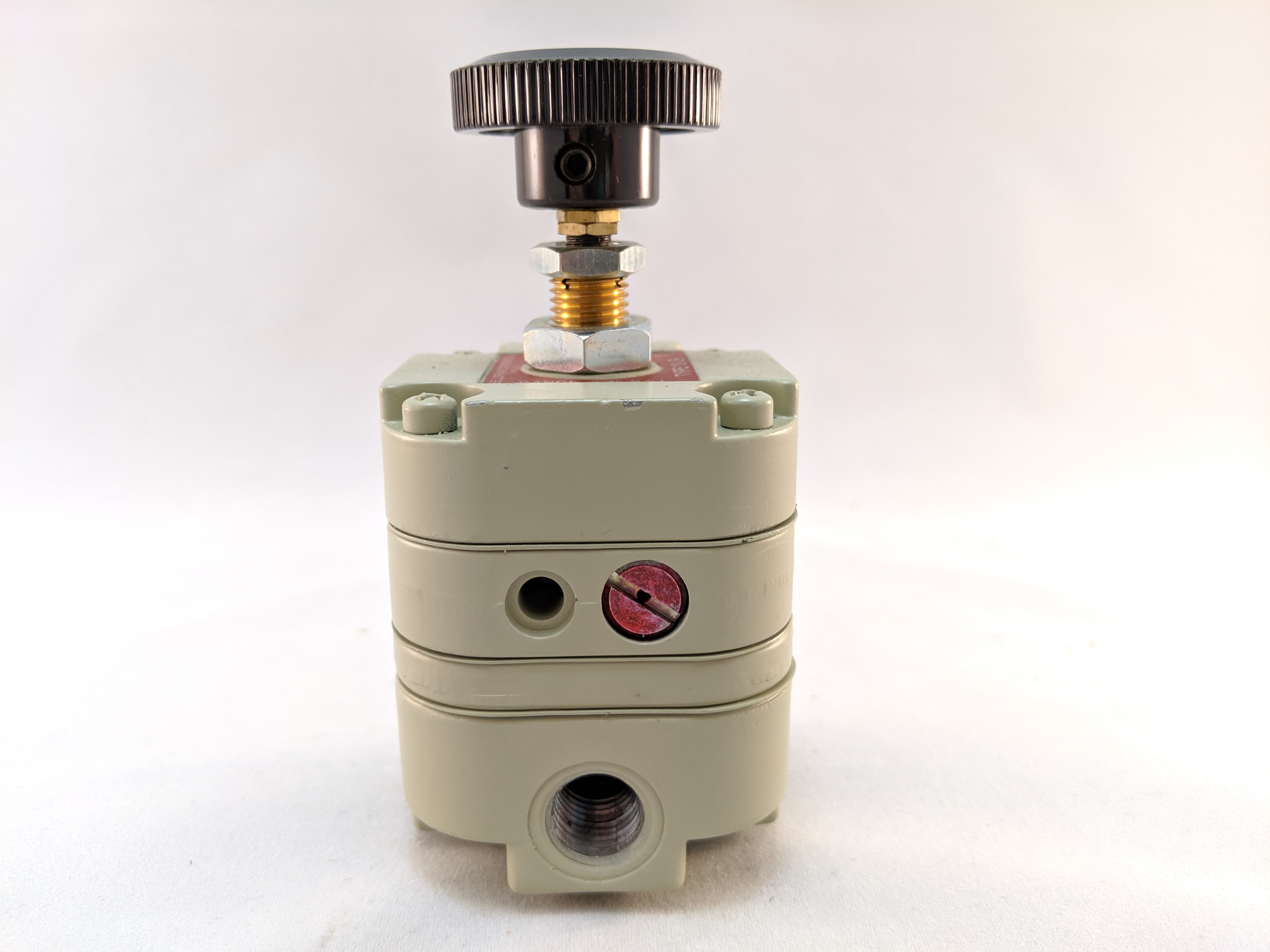

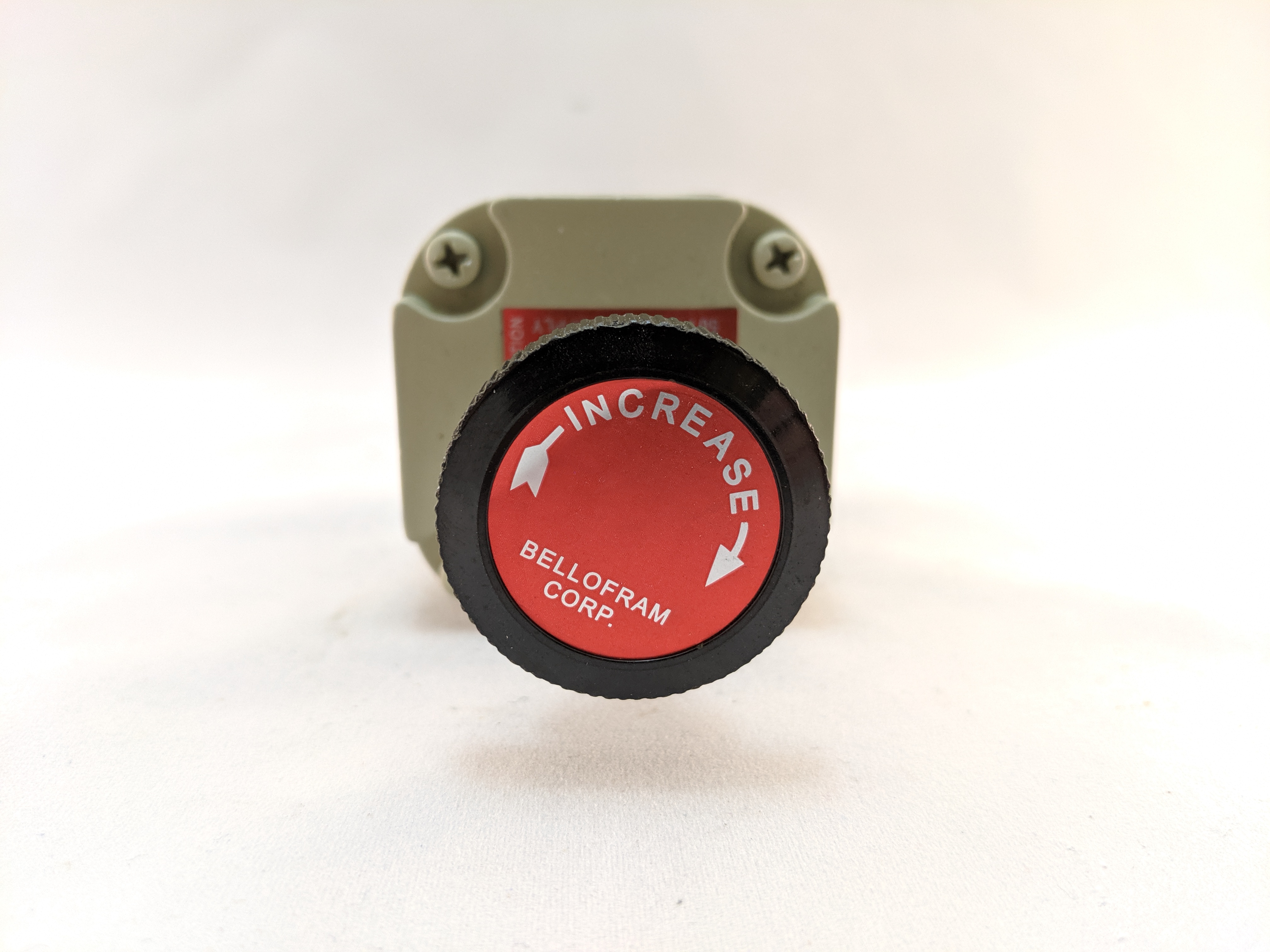

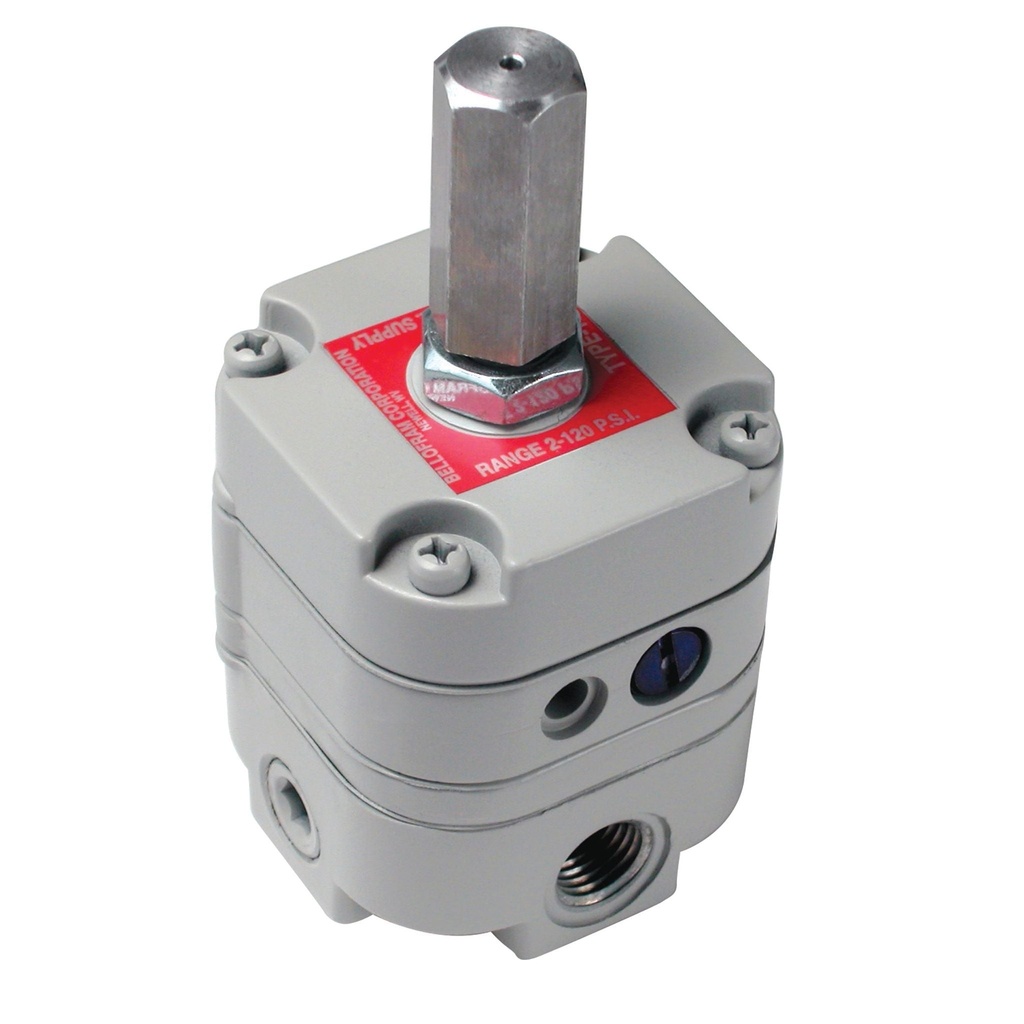

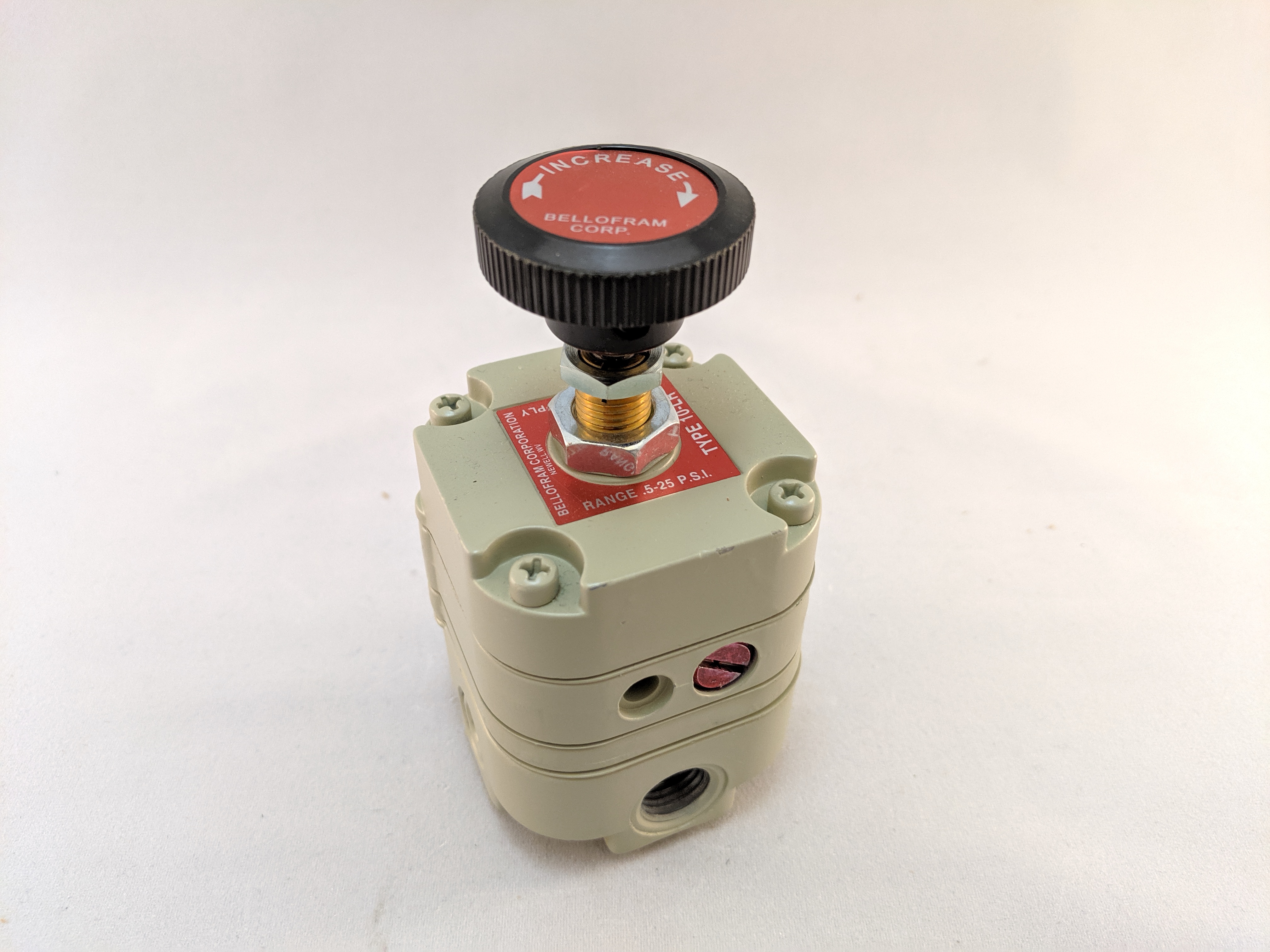

Bellofram T10LR Low Range Control Regulator, 1/4" NPT, 0.5-25 psi
|
Manufacturer Product Code 960-053-000 |
Manufacturer Marsh Bellofram Corporation |
|
MADE TO ORDER
|
Weight 1.62 lb(s) Datasheet |
The main feature of the Type 10LR is its low-range pressure characteristic. It operates on a maximum of 50 psig / 3.4 BAR supply pressure and offers an output pressure range of 0.5 psig / 0.03 BAR to 25 psig / 1.7 BAR
Features:
- Highly Accurate Pressure Regulation to 0.1%
- Start-up Stability, Allowing Regulated Pressure to Return to Output Setting
- High-gain Pneumatic Servo Amplifier Regulates Wide Fluctuations in Flow
- Automatic High Downstream Relief Capacity
- Especially Good Performance from Dead End to 12 SCFM
- Locking Capability
- Temperature Stability
- Units may be installed in any position and panel mounted or supported by inline plumbing
- Available variations to meet particular requirements, such as high-relief, low-range and motorized configurations
Applications:
- Pipe and Vessel Air Pressure Monitoring
- Industrial Processes
- HVAC, Remote Pressure Control Ventilation Systems
- Electro-pneumatic Control
- Inspection Procedures
- Control and Analysis Instrumentation
- Medical Equipment Actuation
- Gas Mixing
- Valve Operation and Gate Actuation
- Positioned Signaling
- Calibration Stands
- Air Gauging
- Cylinder Loading
- Force Balance Hoists
- Disc and Shoe Air Braking
- Clamp Units
- Web Tensioning
- Roll Loading
- Press Units
Specifications
| Regulator: Brand | Marsh-Bellofram |
| Regulator: Type | Mechanical Pressure Reducing |
| Regulator: Series | T10 LR |
