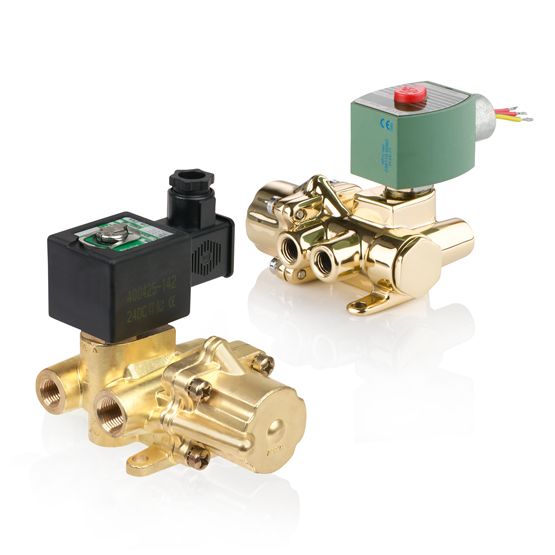

Representative photo. Please check item description for details.
344 Series 4-Way Poppet Solenoid Valve (8344), 3/8" NPT, 240 VAC, Brass, 4 Way
Manufacturer: Asco LP
Mfg Product Code: 8344G072AC240/60,220/50D
Weight: 5.2 lb(s)
On Hand: 0
Poppet Sol Valve, 3/8" NPT, 240 VAC, 4 Way
The ASCO Series 344, also known as 8344, 4-way solenoid valves incorporate a piston-operated poppet design for high flow in a variety of applications. Their sturdy, robust construction can be used with air or water media. The 344 Series is suitable for use in analytical and diagnostic instruments, biofuels, heating equipment, life science production, and refining.
Features
- Body Material: Brass
- Flow (Cv) / Flow (Kv): 1.40 / 1.21
- Function: 4 way
- Pipe/Port Type & Size: NPT 3/8
- Valve Actuation: Solenoid - Direct Acting
- Media: Air, Inert Gas, Water, Light Oil
- Min to Max Operating Pressure (Air): 10 - 150 PSI
- Min to Max Operating Pressure (Water): 10 - 125 PSI
- Product Weight: 5.20 lbs
- Kit Number: 302711
- Kit Number: 25 - 125 PSI
- Coil Class: F
- Coil Number: 238610-058-D
- Min to Max Ambient Temperature: 32 - 125 °F
- Min to Max Fluid Temperature: 32 - 180 °F
- Orifice Size: 3/8 in
- Voltage & Frequency: 220, 240 Volts AC with 50/60 Hz
- Watt Rating: 10.1 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 3/8 X 3/8 4W BRASS 10.1/F AC
- Holding Current (VA): 25
- Seating Elastomer: NBR
- Mounting Direction: Any:
Specifications
| Brand_Name | Asco |
| Mounting Direction | Any |
| Process Connection Type | NPT |
| Max Operating Pressure | 150 psi |
| Flow Coefficient | 1.40 Cv |
| Case Material | Brass |
| Measurement Minimum | 0 |
| Input Voltage | 240 VAC |
| Function | 4 Way |
| Frequency | 60 Hz |
| Body Material | Brass |
| Lead Length | 18 in |
| Seal Material | NBR |
