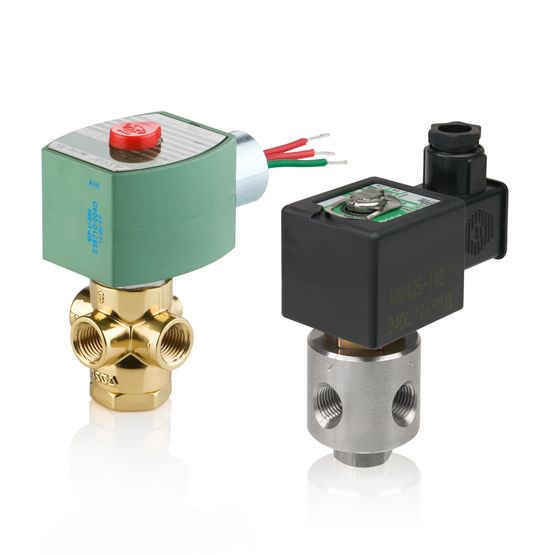

320 Series Direct-Acting General Service Solenoid Valve (8320), 1/4" NPT, 24 VAC, Brass, 3 Way-3/2 NC
The ASCO Series 320, also known as 8320, are general service solenoid valves designed for a broad range of applications. The direct-acting valves are available in voltage-ranging, harsh-environment, direct-mount, dribble-control, and long-life constructions. They are suitable for use in analytical and diagnostic equipment, dust collector systems, life sciences, and press room and metal stamping.
Features
- Body Material: Brass
- Flow (Cv) / Flow (Kv): 0.12 / 0.10
- Function: 3 way - 3/2 Normally Closed
- Pipe/Port Type & Size: NPT 1/4
- Valve Actuation: Solenoid - Direct Acting
- Media: Air, Inert Gas, Water, Light Oil
- Product Weight: 1.50 lbs
- Kit Number: 302142
- Coil Class: FT
- Coil Number: 238610-005-D
- Min to Max Ambient Temperature: 32 - 125 °F
- Min to Max Fluid Temperature: 32 - 200 °F
- Orifice Size: 3/32 in
- Voltage & Frequency: 24 Volts AC with 60 Hz
- Watt Rating: 10.1 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1/4 X 3/32 3NC BRASS 10.1/F AC
- Holding Current (VA): 25
- Seating Elastomer: NBR
- Mounting Direction: Any:
Specifications
| Valve Features | |
|---|---|
| Valve: Actuation | Solenoid - Direct Acting |
| Others | |
|---|---|
| Brand_Name | Asco |
| Media | Air, Inert Gas, Light Oil, Water |
| Flow (Cv / Kv) | 0.12 / 0.10 |
| Mounting Direction | Any, Any |
| Process Connection Type | NPT |
| Flow Coefficient | 0.12 Cv |
| Process Connection Size | 1/4" |
| Holding Current (VA) | 25 |
| Input Voltage | 24 VAC |
| Function | 3 Way 3/2 Normally Closed |
| Coil Class | FT |
| Frequency | 60 Hz |
| Body Material | Brass |
| Lead Length | 18 in |
| Seating Elastomer | NBR |
| Seal Material | NBR |
