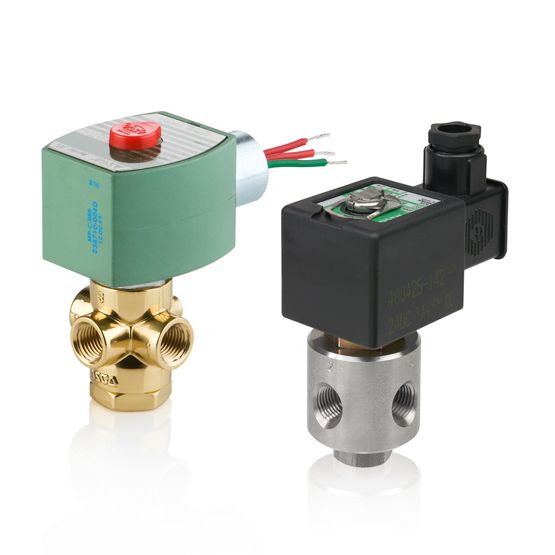

320 Series Direct-Acting General Service Solenoid Valve (8320), 1/4" NPT, 24 VDC, Brass, 3 Way-3/2 U
The ASCO Series 320, also known as 8320, are general service solenoid valves designed for a broad range of applications. The direct-acting valves are available in voltage-ranging, harsh-environment, direct-mount, dribble-control, and long-life constructions. They are suitable for use in analytical and diagnostic equipment, dust collector systems, life sciences, and press room and metal stamping.
Features
- Body Material: Brass
- Flow (Cv) / Flow (Kv): 0.12 / 0.10
- Function: 3 way - 3/2 Universal
- Pipe/Port Type & Size: NPT 1/4
- Valve Actuation: Solenoid - Direct Acting
- Media: Air, Inert Gas, Water, Light Oil
- Product Weight: 1.50 lbs
- Kit Number: 302201-MO
- Coil Class: F
- Coil Number: 238710-006-D
- Min to Max Ambient Temperature: 32 - 104 °F
- Orifice Size: 3/32 in
- Voltage: 24 Volts DC
- Watt Rating: 11.6 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1/4 X 3/32 3U BRASS 11.6/F DC
- Seating Elastomer: NBR
- Mounting Direction: Any:
Specifications
| Valve: Actuation | Solenoid |
| Valve: Type | Automated |
