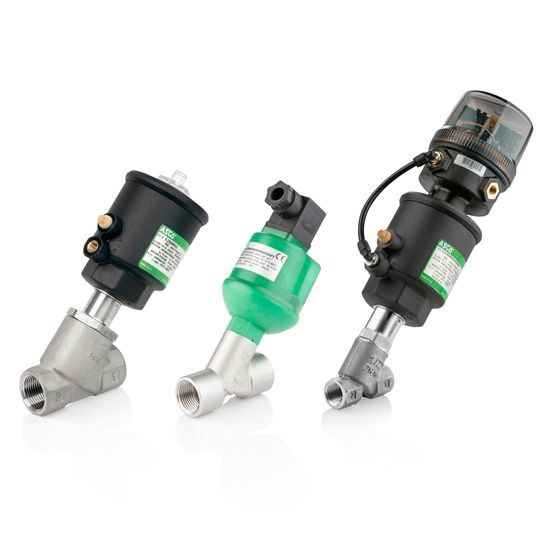

Representative photo. Please check item description for details.

ASCO Series 290 Angle-Body Piston Valve (8290)

https://www.branom.com/web/image/product.template/475950/image_1920?unique=37e87e0
(0 review)

Manufacturer: Asco LP

Mfg Product Code: 8290A068

Weight: 2.0 lb(s)

On Hand: 0

The ASCO Series 290, also known as 8290, is a pressure-operated, direct acting angle-body piston solenoid valve built for demanding applications. Its straight-through body design is available in bronze or stainless steel. The valve is suitable for general service applications (air, inert gas, water, oil, and light slurries), plus steam, hot water, and auxiliary fluids within the food and beverage industry. Many optional features available including a visual/electrical position indicator or a stroke limiter.

Features

  • Proven durability in handling aggressive fluids such as steam, hot water, solvents, and light slurries
  • Optional features include position indication and proportional control
  • Rugged water-tight actuator made from tough fiber composite and protected with a double O-ring seal
  • Spring-loaded stem seal: FKM fluoroelastomer wiper keeps harmful grit way from the stem area for exceptional durability
  • Smooth stem movements guided by two oversized bearings for maximum reliability
  • Anti-water hammer design: fluid passes under the disc resulting in slower closure
  • Some versions are compatible with FDA CFR21 for food and beverage applications

1,440.18 1440.18 USD 1,524.00

1,524.00

Not Available For Sale

    This combination does not exist.


    Product Datasheets

    Datasheet 1
