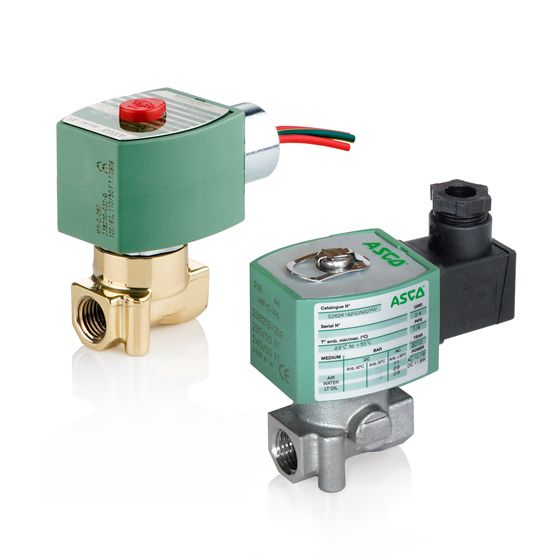

262 Series 2-Way Solenoid Valve, 1/4" NPT, 120 VAC, Stainless Steel, 2 Way-2/2 NC
The ASCO Series 262 & 263, also known as 8262 & 8263, is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, Biodiesel fuel (B20) and cryogenic fluids. The 262 & 263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others.
Features
- Body Material: Stainless Steel
- Flow (Cv) / Flow (Kv): 0.21 / 0.18
- Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 1/4
- Valve Actuation: Solenoid - Direct Acting
- Media: Air, Inert Gas, Water, Light Oil
- Product Weight: 0.44 lbs
- Order Code: 21993
- Kit Number: 323583
- Coil Class: FT
- Coil Number: 238210-032-D
- Min to Max Ambient Temperature: -13 - 131 °F
- Min to Max Fluid Temperature: -13 - 180 °F
- Orifice Size: 3/32 in
- Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
- Watt Rating: 6.1 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1/4 X 3/32 2NC S.S. 6.1/F AC
- Holding Current (VA): 16
- Seating Elastomer: NBR
- Mounting Direction: Any:
Specifications
| Brand_Name | Asco |
| Mounting Direction | Any |
| Process Connection Type | NPT |
| Flow Coefficient | 0.21 Cv |
| Process Connection Size | 1/4" |
| Measurement Minimum | 0 |
| Input Voltage | 120 VAC |
| Watts | 6.1 |
| Function | 2 Way 2/2 Normally Closed |
| Coil Class | FT |
| Frequency | 60 Hz |
| Body Material | SS |
| Lead Length | 18 in |
| NEMA / UL | NEMA 1/2/3/3S/4/4X |
| Seal Material | NBR |
