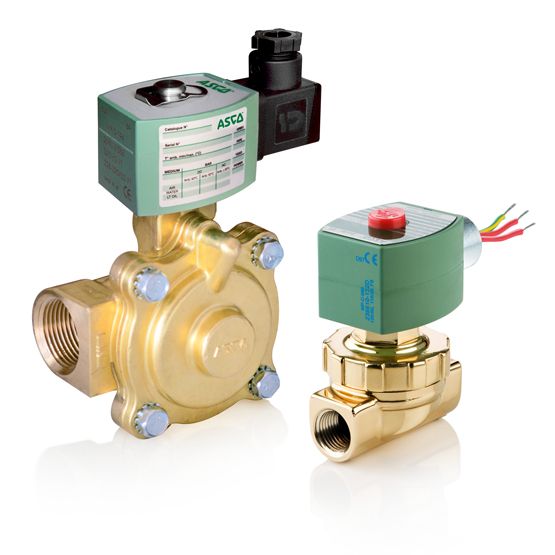

220 Series Steam & Hot Water Solenoid Valve, 1" NPT, 110 VAC, Brass, 2 Way-2/2 NC
The ASCO Series 220 steam and hot water valves provides up to 60% more flow than competitive offerings. That means a 3/4-inch valve flow from ASCO equals the competitors 1-inch flow. The Series 220 floating PTFE diaphragm provides positive sealing and improved durability - up to four times longer than other valves. Its threaded bonnet is easy to remove for quick inspection and serviceability reducing downtime and maintenance costs.
Features
- Body Material: Brass
- Flow (Cv) / Flow (Kv): 13.50 / 11.68
- Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 1
- Valve Actuation: Solenoid
- Product Weight: 4.41 lbs
- Order Code: 20329
- Kit Number: 304392
- Coil Class: HT
- Coil Number: 238810-032-D
- Min to Max Ambient Temperature: 32 - 125 °F
- Min to Max Fluid Temperature: 32 - 210 °F
- Orifice Size: 1 in
- Voltage & Frequency: 120, 110 Volts AC with 50/60 Hz
- Watt Rating: 10.1 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1 X 1 2NC BRASS 10.1/H AC
- Seating Elastomer: PTFE
- Mounting Direction: Any:
