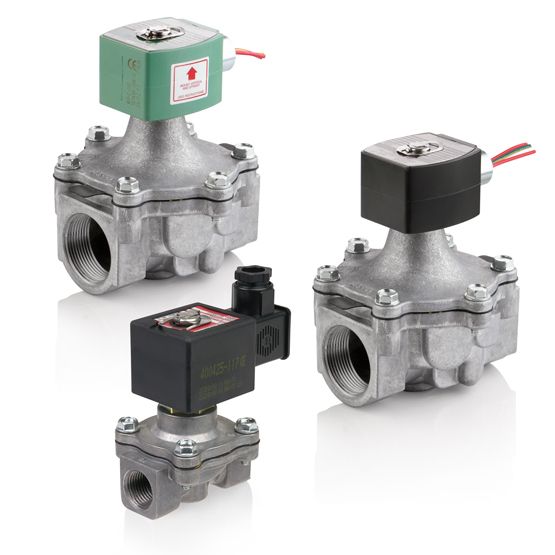

215 Series High-Flow Gas Shut-Off Solenoid Valve (8215), 1/2" NPT, 120 VAC, Aluminum, 2 Way-2/2 NC
The ASCO Series 215, also known as 8215, is an aluminum body, lightweight gas safety Shut-Off valve for high flow, low-pressure air or gas service. The pilot operated construction works from zero pressure differential with resilient soft seating for tight Shut-Off. Optional long-life design eliminates metal-to-metal contact to extend life up to 20 million cycles. The 215 Series is ideal for vacuum service and heating equipment applications.
Features
- Body Material: Aluminum
- Flow (Cv) / Flow (Kv): 4.40 / 3.80
- Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 1/2
- Valve Actuation: Solenoid - Direct Acting
- Media: Air, Inert Gas, Fuel Gas
- Product Weight: 1.70 lbs
- Order Code: 20290
- Kit Number: 302350
- Coil Class: FT
- Coil Number: 238610-032-D
- Min to Max Ambient Temperature: 32 - 125 °F
- Min to Max Fluid Temperature: 32 - 125 °F
- Orifice Size: 3/4 in
- Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
- Watt Rating: 10.1 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1/2 X 3/4 2NC AL 10.1/F AC
- Holding Current (VA): 25
- Seating Elastomer: NBR
- Mounting Direction: Any:
Specifications
| Brand_Name | Asco |
| Mounting Direction | Any |
| Process Connection Type | NPT |
| Flow Coefficient | 4.40 Cv |
| Process Connection Size | 1/2" |
| Holding Current (VA) | 25.0 |
| Case Material | Aluminum |
| Measurement Minimum | 0 |
| Input Voltage | 120 VAC |
| Watts | 10.1 |
| Function | 2 Way 2/2 Normally Closed |
| Coil Class | FT |
| Frequency | 60 Hz |
| Body Material | Aluminum |
| Lead Length | 18 in |
| Seal Material | NBR |
