Description

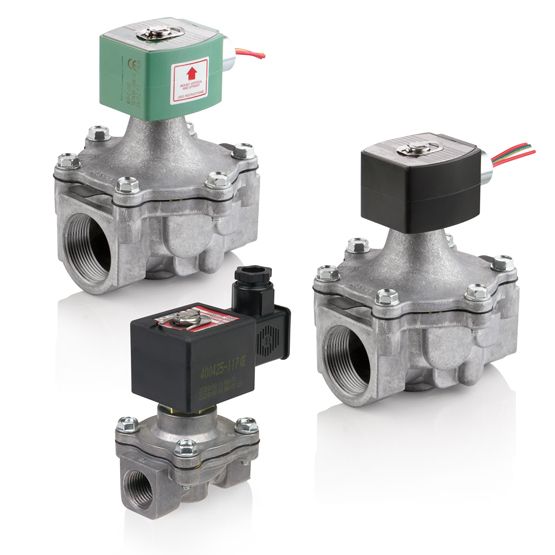

The ASCO Series 215, also known as 8215, is an aluminum body, lightweight gas safety Shut-Off valve for high flow, low-pressure air or gas service. The pilot operated construction works from zero pressure differential with resilient soft seating for tight Shut-Off. Optional long-life design eliminates metal-to-metal contact to extend life up to 20 million cycles. The 215 Series is ideal for vacuum service and heating equipment applications.
Features
- Body Material: Aluminum
- Flow (Cv) / Flow (Kv): 32.00 / 27.68
- Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 1 1/4
- Valve Actuation: Solenoid - Direct Acting
- Media: Air, Inert Gas, Fuel Gas
- Order Code: 577
- Kit Number: 302352
- Coil Class: FT
- Coil Number: 099257-001-D
- Min to Max Ambient Temperature: 32 - 125 °F
- Min to Max Fluid Temperature: 32 - 125 °F
- Orifice Size: 1-5/8 in
- Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
- Watt Rating: 15.4 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1-1/4 X 1-5/8 2NC AL 15.4/F AC
- Holding Current (VA): 27
- Seating Elastomer: NBR
- Mounting Direction: Any:
