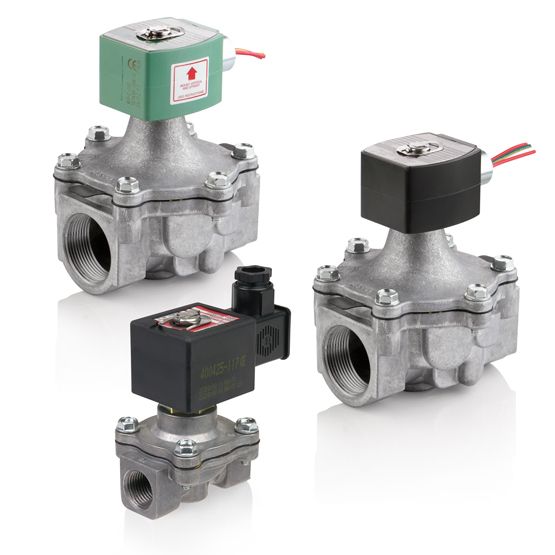

Representative photo. Please check item description for details.

ASCO Series 215 High-Flow Gas Shut Off Valve (8215)

https://www.branom.com/web/image/product.template/371095/image_1920?unique=b046b97
(0 review)

Manufacturer: Asco LP

Mfg Product Code: 8215A090CSAAC120/60D

Weight: 2.0 lb(s)

On Hand: 0

2-1/2X 3 2NC ALUMIN28.2/F W

2-1/X 3 2NC ALUMIN28.2/F W

The ASCO Series 215, also known as 8215, is an aluminum body, lightweight gas safety shut off valve for high flow, low-pressure air or gas service.  The pilot operated construction works from zero pressure differential with resilient soft seating for tight shut off. Optional long-life design eliminates metal-to-metal contact to extend life up to 20 million cycles. The 215 Series is ideal for vacuum service and heating equipment applications.

Features

  • Provides high flow with Cv up to 138 (Kv 118)
  • Due to the resilient soft seating, these valves are ideal for high flow low pressure air and gas applications.
  • A full range of pipe sizes up to 3-inches with both Normally Closed and Normally Open constructions.
  • Wide range of standard AC and DC voltages
  • Optional 20 million cycle long life quiet design for air service in normally closed and normally open constructions and 1-inch to 2-inch pipe available
