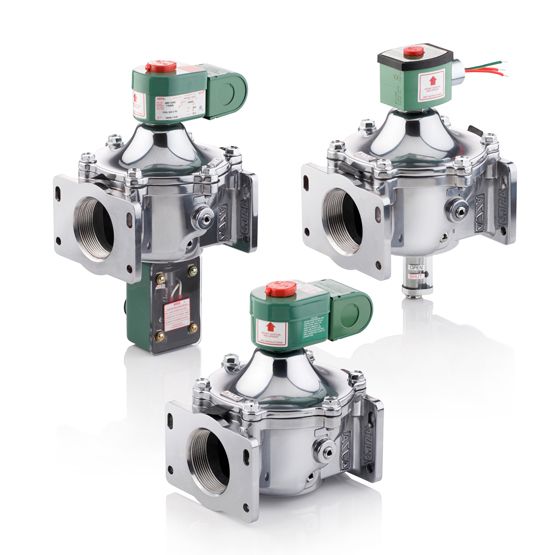

ASCO Series 214 High-Flow Gas Shut Off Solenoid Valve (8214)
Manufacturer: Asco LP
Mfg Product Code: 8214G251AC24/60D
Weight: 2.0 lb(s)
On Hand: 0
1 X 1-5/ 2NC ALUMIN20.1/F W
1 X 1-5/ 2NC ALUMIN20.1/F W
The ASCO Series 214, also known as 8214, high-flow, low-pressure (5 psi) gas safety shutoff valves are specifically designed for on-off control of fuel gas in commercial and industrial gas burners. Their unique double-disc design with over travel provides redundant sealing for leak-tight shutoff on pilot or main gas lines. A double-solenoid gas train provides an exceptionally small footprint for space constrained applications. The valves are ideal for natural gas fired boilers, furnaces, grain dryers, kilns, gas generators and commercial kitchen/cooking equipment.
Features
- Low pressure drop and extremely high flow capacity make the valve ideal in low gas supply pressure applications and locations
- Visual indication of open and shut position meets NFPA and FM requirements for visual indication
- Proof of closure switch meets agency/code requirements for an electrical interlock of valve closed position
- 1/8-inch NPT pipe taps with plugs provide easier routine testing
- Broad ambient range of -40?F to 140?F is ideally suited for frigid and hot environments
- Optional NPT threaded flange adapters allow direct piping that simplifies installation and maintenance
- Silicon-free constructions are available for painting/finishing applications
- Most constructions available on ASCO SameDay or 5Day shipping program to keep production lines running smoothly
