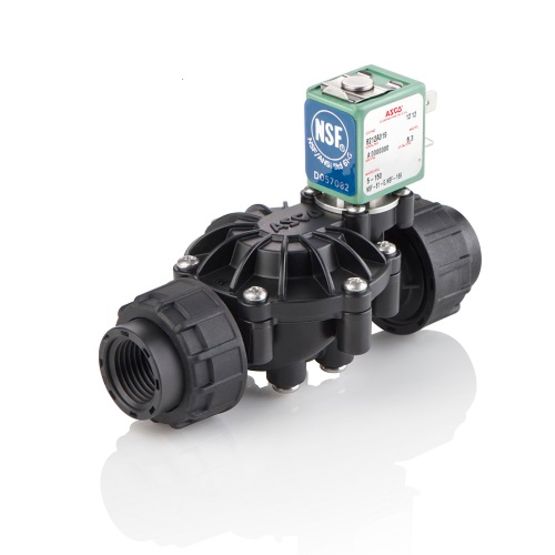

212 Series Composite Valve (8212), 3/4" NPT, 120-110 VAC, Plastic, 2 Way-2/2 NC
ASCO has perfected composite valve technology with the Series 212, also known as 8212, plastic solenoid valves. The robust, easy-to-install valves are designed specifically for water purification and conditioning systems in commercial and industrial applications. With the highest pressure and temperature ratings on the market -- up to 150 psi and 150°F - the 212 Series solves the breakdown and reliability problems found in other types of composite valves. Its lightweight engineered plastic body has been built and tested to achieve up to 1 million operating cycles. The 212 Series comes with ASCO's new FasN universal connection system - the world's fastest, most secure valve connection technology.
Features
- Flow (Cv) / Flow (Kv): 7.00/6.06
- Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 3/4"
- Valve Actuation: Solenoid
- Coil Class: FB
- Coil Number: 400127-225
- Orifice Size: 3/4 in
- Voltage: 120 AC|110 AC
- Watt Rating: 6.3 W
- Item Status: Active
- Standards / Regulations: CSA; IP65; NSF; UL
- Carton Note: 3/4 X 3/4 2NC PLAS 6.3/F AC
- Seating Elastomer: NSF Approved Elastomers TPV:
