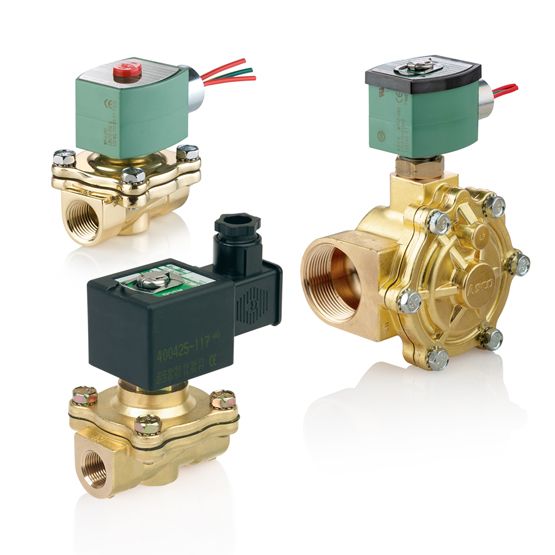

210 Series Solenoid Valve (8210), 2" NPT, 24 VAC, Brass, 2 Way-2/2 NC
The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
Features
- Body Material: Brass
- Flow (Cv) / Flow (Kv): 43.00 / 37.19
- Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 2
- Valve Actuation: Solenoid
- Media: Air, Inert Gas, Water, Light Oil
- Min to Max Operating Pressure (Air): 5 - 150 PSI
- Min to Max Operating Pressure (Water): 5 - 125 PSI
- Min to Max Operating Pressure (Light Oil): 5 - 90 PSI
- Product Weight: 8.91 lbs
- Kit Number: 304355
- Coil Class: FT
- Coil Number: 238210-005-D
- Min to Max Ambient Temperature: 32 - 125 °F
- Min to Max Fluid Temperature: 32 - 180 °F
- Orifice Size: 1-3/4 in
- Voltage & Frequency: 24 Volts AC with 60 Hz
- Watt Rating: 6.1 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 2 X 1-3/4 2NC BRASS 6.1/F AC
- Holding Current (VA): 16
- Seating Elastomer: NBR
- Mounting Direction: Any:
Specifications
| Valve: Brand | Asco |
| Valve: Pipe Size | 2 in |
| Valve: Actuation | Solenoid, Solenoid |
| Valve: Body Material | Copper Alloy |
| Valve: Flow Factor (Cv) | 43, 43 |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar), > 20 to 150 psi (1.38 to 10.34 bar) |
| Valve: Max Temperature °F | 125 |
| Valve: Mounting Position | Any, Any |
| Valve: Type | Automated |
| Valve: Seal Material | NBR |
| Valve: Function | 2-Way Normally Closed |
