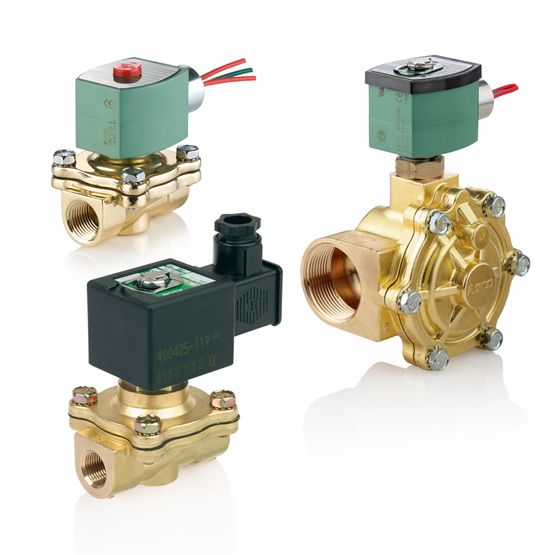

210 Series Solenoid Valve (8210), 1/2" NPT, 24 VAC, Brass, 2 Way-2/2 NC
The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
Features
- Body Material: Brass
- Flow (Cv) / Flow (Kv): 4.00 / 3.46
- Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 1/2
- Valve Actuation: Solenoid
- Media: Air, Inert Gas, Water
- Product Weight: 2.21 lbs
- Order Code: 20246
- Kit Number: 302272
- Coil Class: FT
- Coil Number: 238610-005-D
- Min to Max Ambient Temperature: 32 - 125 °F
- Orifice Size: 5/8 in
- Voltage & Frequency: 24 Volts AC with 60 Hz
- Watt Rating: 10.1 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1/2 X 5/8 2NC BRASS 10.1/F AC
- Holding Current (VA): 25
- Seating Elastomer: NBR
- Mounting Direction: Any:
