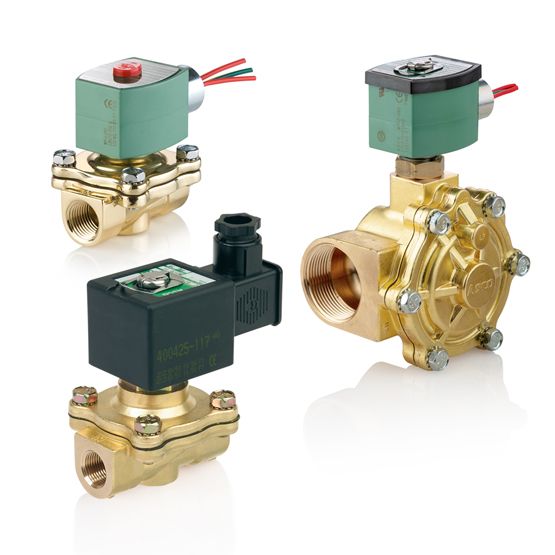

210 Series Solenoid Valve (8210), 3/8" NPT, 120 VAC, Brass, 2 Way-2/2 NO

The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.

Features

• Body Material: Brass
• Flow (Cv) / Flow (Kv): 3.00 / 2.59
• Function: 2 way - 2/2 Normally Open
• Pipe/Port Type & Size: NPT 3/8
• Valve Actuation: Solenoid
• Media: Air, Inert Gas, Water, Light Oil, Fuel Gas
• Product Weight: 3.06 lbs
• Order Code: 20146
• Kit Number: 302334
• Coil Class: FT
• Coil Number: 238610-032-D
• Min to Max Ambient Temperature: 32 - 125 °F
• Min to Max Fluid Temperature: 32 - 180 °F
• Orifice Size: 5/8 in
• Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
• Watt Rating: 10.1 W
• Item Status: Active
• Lead Length: 18 inch
• Carton Note: 3/8 X 5/8 2NO BRASS 10.1/F AC
• Holding Current (VA): 25
• Seating Elastomer: NBR
• Mounting Direction: Any:
