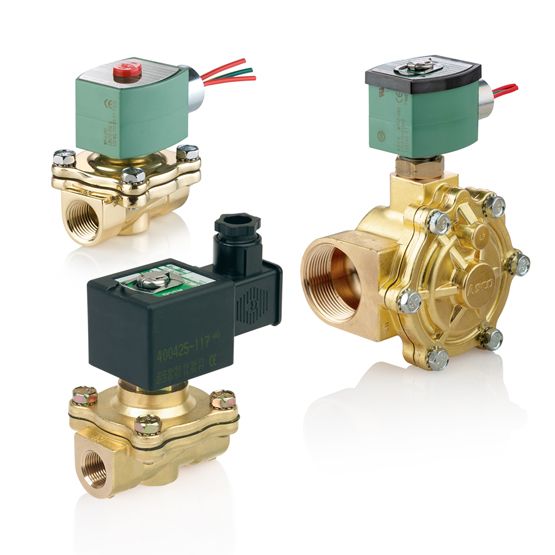

Representative photo. Please check item description for details.

210 Series Solenoid Valve (8210), 1" NPT, 120 VAC, Brass, 2 Way-2/2 NO

https://www.branom.com/web/image/product.template/178974/image_1920?unique=6e6c003
(0 review)

Manufacturer: Asco LP

Mfg Product Code: 8210G014AC120/60D

Weight: 3.42 lb(s)

On Hand: 0

Solenoid Valve, 1" NPT, 120 VAC, Brass, 2 Way-2/2 NC

The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.

Features

  • Body Material: Brass
  • Flow (Cv) / Flow (Kv): 13.00 / 11.24
  • Function: 2 way - 2/2 Normally Open
  • Pipe/Port Type & Size: NPT 1
  • Valve Actuation: Solenoid
  • Media: Air, Inert Gas, Water, Light Oil
  • Min to Max Operating Pressure (Air): 5 - 150 PSI
  • Min to Max Operating Pressure (Water): 5 - 150 PSI
  • Min to Max Operating Pressure (Light Oil): 5 - 125 PSI
  • Order Code: 21419
  • Kit Number: 302338
  • Coil Class: FT
  • Coil Number: 272610-032-D
  • Min to Max Ambient Temperature: 32 - 125 °F
  • Min to Max Fluid Temperature: 32 - 180 °F
  • Orifice Size: 1 in
  • Voltage & Frequency: 120 Volts AC with 60 Hz
  • Watt Rating: 16.1 W
  • Item Status: Active
  • Lead Length: 18 inch
  • Carton Note: 1 X 1 2NO BRASS 16.1/F AC
  • Holding Current (VA): 35
  • Seating Elastomer: NBR
  • Mounting Direction: Any:

459.27 459.27 USD 486.00

486.00

Not Available For Sale

  • Brand_Name
  • Mounting Direction
  • Process Connection Type
  • Flow Coefficient
  • Max Operating Temperature
  • Process Connection Size
  • Input Voltage
  • Watts
  • Function
  • Coil Class
  • Frequency
  • Body Material
  • Lead Length
  • NEMA / UL
  • Seal Material

This combination does not exist.

Specifications

Brand_Name Asco
Mounting Direction Any
Process Connection Type NPT
Flow Coefficient 13.00 Cv
Max Operating Temperature 125 °F
Process Connection Size 1"
Input Voltage 120 VAC
Watts 16.1
Function 2 Way 2/2 Normally Open
Coil Class FT
Frequency 60 Hz
Body Material Brass
Lead Length 18 in
NEMA / UL NEMA 1/2/3/3S/4/4X
Seal Material NBR
