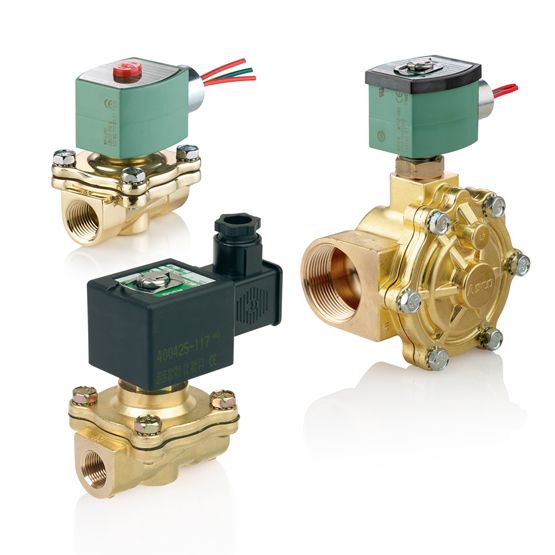

210 Series Solenoid Valve (8210), 1" NPT, 24 VDC, Brass, 2 Way-2/2 NC
The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
Features
- Body Material: Brass
- Flow (Cv) / Flow (Kv): 13.00 / 11.25
- Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 1
- Valve Actuation: Solenoid
- Product Weight: 4.50 lbs
- Kit Number: 302379-V
- Coil Class: FT
- Coil Number: 238710-006-D
- Min to Max Ambient Temperature: 32 - 104 °F
- Min to Max Fluid Temperature: 32 - 150 °F
- Orifice Size: 1 in
- Voltage: 24 Volts DC
- Watt Rating: 11.6 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1 X 1 2NC BRASS 11.6/F DC
- Seating Elastomer: FKM
- Mounting Direction: Any:
The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
Features
- Body Material: Brass
- Flow (Cv) / Flow (Kv): 13.00 / 11.25
- Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 1
- Valve Actuation: Solenoid
- Product Weight: 4.50 lbs
- Kit Number: 302379-V
- Coil Class: FT
- Coil Number: 238710-006-D
- Min to Max Ambient Temperature: 32 - 104 °F
- Min to Max Fluid Temperature: 32 - 150 °F
- Orifice Size: 1 in
- Voltage: 24 Volts DC
- Watt Rating: 11.6 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1 X 1 2NC BRASS 11.6/F DC
- Seating Elastomer: FKM
- Mounting Direction: Any:
