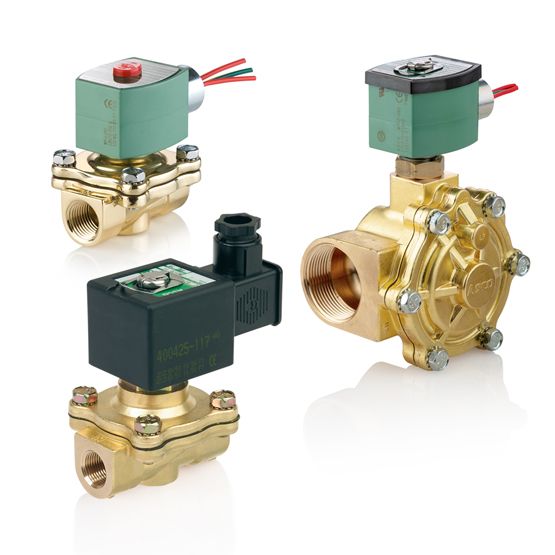

210 Series Solenoid Valve (8210), 1/2" NPT, 240 VAC, Brass, 2 Way-2/2 NC

The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.

Features

Body Material: Brass
Flow (Cv) / Flow (Kv): 4.00 / 3.46
Function: 2 way - 2/2 Normally Closed
Pipe/Port Type & Size: NPT 1/2
Valve Actuation: Solenoid
Product Weight: 4.19 lbs
Kit Number: 326064
Coil Class: FT
Coil Number: 238210-058-D
Orifice Size: 5/8 in
Voltage & Frequency: 240 Volts AC with 60 Hz
Watt Rating: 6.1 W
Item Status: Active
Lead Length: 18 inch
Carton Note: 1/2 X 5/8 2NC BRASS 6.1/F AC
Watt Rating: 6.1 W
Coil Class: FT
Coil Number: 238210-058-D
Kit Number: 326064
Product Weight: 4.19 lb:

Manufacturer Product Code 8210G002LFAC240/60D	Manufacturer Asco LP
MADE TO ORDER	Weight 4.4 lb(s) Datasheet Other Info

Valve: Brand	Asco
Valve: Pipe Size	1/4 in, 1/2 in
Valve: Actuation	Solenoid, Solenoid
Valve: Body Material	Copper Alloy
Valve: Flow Factor (Cv)	4.0
Valve: Type	Automated
Valve: Seal Material	NBR
Valve: Function	2-Way Normally Closed
