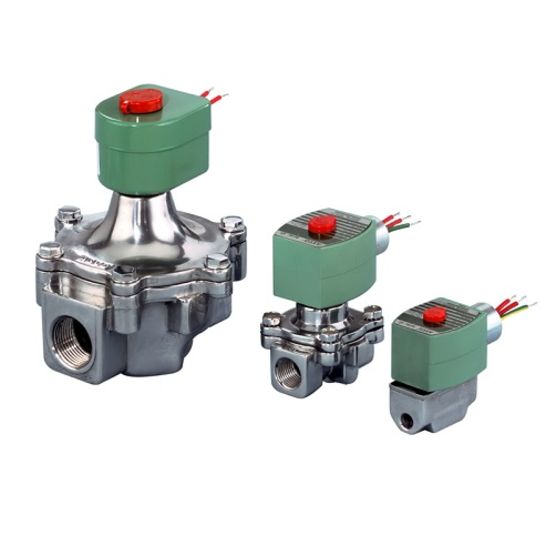

040 Series Gas Safety Shut-Off Solenoid Valve (8040), 1" NPT, 24 VAC, Aluminum, 2 Way-2/2 NC
|
Manufacturer Product Code 8040C004CSAAC24/60D |
Manufacturer Asco LP |
|
MADE TO ORDER
|
Weight
4.3 lb(s) Datasheet |
The ASCO Series 040, also known as 8040, are highly reliable compact gas safety shutoff solenoid valves for pilot or main control of commercial and industrial gas burners found in generators, heating equipment, and ovens. The valves are designed with 2-way, normally closed operation and are provided with 1/8-inch NPT upstream and downstream pipe taps with plugs for routine testing.
Features
- Body Material: Aluminum
- Flow (Cv): 16.80
- Valve Function: 2 Way - 2/2 Normally Closed
- Media: Air, Inert Gas, Fuel Gas
- Pipe/Port Type & Size: NPT 1
- Valve Actuation: Solenoid - Direct Acting
- Voltage & Frequency: 110 AC, 120 AC with 50/60 Hz
- Product Weight: 3.51 lbs
- Order Code: 00185
- Kit Number: 304079
- Coil Class: FT
- Coil Number: 099257-001-D
- Min to Max Ambient Temperature: -40.01 - 125 deg;F
- Min to Max Fluid Temperature: 32 - 125 °F
- Orifice Size: 1-5/8 in
- Watt Rating: 15.4 W
- Item Status: Active
- Lead Length: 18 inch
- Holding Current (VA): 27
- Seating Elastomer: NBR
- Mounting Direction: ANY:
The ASCO Series 040, also known as 8040, are highly reliable compact gas safety shutoff solenoid valves for pilot or main control of commercial and industrial gas burners found in generators, heating equipment, and ovens. The valves are designed with 2-way, normally closed operation and are provided with 1/8-inch NPT upstream and downstream pipe taps with plugs for routine testing.
Features
- Body Material: Aluminum
- Flow (Cv): 16.80
- Valve Function: 2 Way - 2/2 Normally Closed
- Media: Air, Inert Gas, Fuel Gas
- Pipe/Port Type & Size: NPT 1
- Valve Actuation: Solenoid - Direct Acting
- Voltage & Frequency: 110 AC, 120 AC with 50/60 Hz
- Product Weight: 3.51 lbs
- Order Code: 00185
- Kit Number: 304079
- Coil Class: FT
- Coil Number: 099257-001-D
- Min to Max Ambient Temperature: -40.01 - 125 deg;F
- Min to Max Fluid Temperature: 32 - 125 °F
- Orifice Size: 1-5/8 in
- Watt Rating: 15.4 W
- Item Status: Active
- Lead Length: 18 inch
- Holding Current (VA): 27
- Seating Elastomer: NBR
- Mounting Direction: ANY:
Specifications
| Valve: Brand | Asco |
| Valve: Pipe Size | 1 in |
| Valve: Body Material | Aluminum |
| Valve: Mounting Position | Any |
| Valve: Seal Material | NBR |
| Valve: Function | 2/2 Normally Closed |
