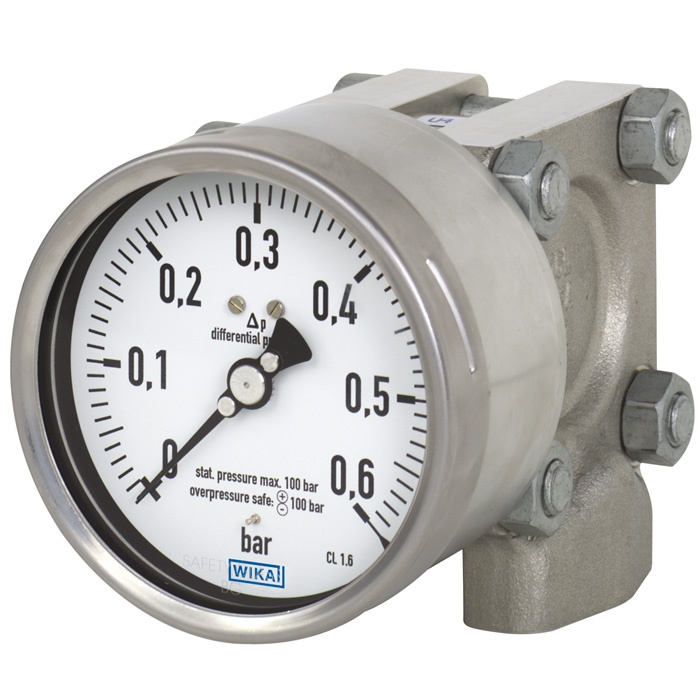

Wika 762.14 Series 4" or 6" All-Metal Media Chamber Pressure Gauge, Monel/Hastelloy Wetted Parts, Dry/Fillable

https://www.pressureworx.com/web/image/product.template/544131/image_1920?unique=d25f60f
(0 review)

The Wika 762.14 Series All-Metal Media Chamber Pressure Gauge, featuring Monel and Hastelloy wetted parts, is designed for demanding applications involving gaseous and liquid aggressive media, as well as aggressive environments. Ideal for pump and filter monitoring and level measurement in closed vessels, this gauge offers differential pressure measuring ranges from -1 to +30 bar (-14.5 to 435 psi) up to 0 to 40 bar (0 to 580 psi). It boasts high working pressure and overload safety, with selectable pressures up to 650 bar (9,425 psi).


Constructed with highly corrosion-resistant stainless steel, the all-metal design ensures durability and reliability. The diaphragm measuring element's close-fitting design and the transmission fluid in the measuring chamber dampen the indicator during rapid pressure changes, enhancing performance.


Perfect for chemical and process engineering industries, the gauge handles both liquid and gaseous media in challenging environments. With scale ranges from 0 to 60 mbar to 0 to 40 bar (0 to 0.87 to 0 to 580 psi), it meets diverse application needs. Branom Instrument Co. offers the best selection and expertise for purchasing this high-quality pressure gauge.

$ 6,131.49 6131.49075 USD $ 6,488.35

$ 6,488.35

Not Available For Sale

  • Nominal Size
  • Case Filling
  • Explosion Protection
  • Ignition Protection
  • Zone
  • Overpressure Safety / Working Pressure
  • Scale Range
  • 2nd Scale
  • Process Connection
  • Connector Location
  • Flushing Connection
  • Set / Drag Pointer
  • Special Design Features
  • Permissible Ambient Temp
  • Permissible Medium Temp
  • Mounting Device
  • Panel Flange
  • Certificates
  • Approvals
  • Assembly Accessory
  • Additional Ordering Info
  • Accuracy Class
  • Case Filling
  • Case Material
  • Case Surface
  • Ingress Protection
  • Thread Protection
  • Origin of Wetted Parts
  • Pressure Gauge Standard
  • Color for Inner Scale
  • Logo Options
  • Manufacturer Logo
  • Serial Number
  • Stop Pin on Dial
  • Red Mark at
  • Text for Dial
  • Gauge: Brand
  • Gauge: Type
  • Gauge: Model
  • Gauge: Dial Size
  • Gauge: Dial Size
  • Gauge: Scale Range
  • Gauge: Pressure Type
  • Gauge: Measuring Principle
  • Gauge: Fill Type
  • Gauge: Fill Type
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Location
  • Gauge: Process Connection Location
  • Gauge: Process Connection Location
  • Gauge: Process Connection Type
  • Gauge: Process Connection Type
  • Gauge: Process Connection Type
  • Gauge: Process Connection Type
  • Gauge: Wetted Material
  • Gauge: Wetted Material
  • Gauge: Accuracy
  • Gauge: Ingress Protection
  • Gauge: Ingress Protection
  • Gauge: Ingress Protection
  • Gauge: Case Material

This combination does not exist.

Contact Us

Share

Specifications

Wika 762.14
Nominal Size 4", 6"
Case Filling [762.14-ZZZE] Without (4"), [762.14-ZZZF] Without (6"), [763.14-ZZZE] With (4"), [763.14-ZZZF] With (6")
Overpressure Safety / Working Pressure [S] PN 40 bar, [H] PN 100 bar, [F] PN 250 bar, [V] PN 400 bar
Scale Range ￭ psi / -inHg ￭, [PG269] 0/10 psi, [PG310] 0/15 psi, [PG321] 0/30 psi, [PG341] 0/60 psi, [PG369] 0/100 psi, [PG410] 0/150 psi, [PG411] 0/160 psi, [PG414] 0/200 psi, [PG417] 0/250 psi, [PG421] 0/300 psi, [PG428] 0/400 psi, [PG434] 0/500 psi, [PG441] 0/600 psi, [PV251] -15 inHg/0 psi, [PV310] -30 inHg/0 psi, [PV321] -30 inHg/15 psi, [PV331] -30 inHg/30 psi, [PV352] -30 inHg/60 psi, [PV379] -30 inHg/100 psi, [PV412] -30 inHg/160 psi, [PV415] -30 inHg/200 psi, [PV422] -30 inHg/300 psi, ￭ mbar ￭, [MG160] 0/60 mbar, [MG210] 0/100 mbar, [MG216] 0/160 mbar, [MG225] 0/250 mbar, [MG240] 0/400 mbar, [MG260] 0/600 mbar, [MG310] 0/1000 mbar, [MG311] 0/1100 mbar, [MG312] 0/1200 mbar, [MG316] 0/1600 mbar, [MG325] 0/2500 mbar, [MV160] -60/0 mbar, [MV210] -100/0 mbar, [MV216] -160/0 mbar, [MV225] -250/0 mbar, [MV240] -400/0 mbar, [MV260] -600/0 mbar, [MV310] -1000/0 mbar, [MV311] -1100/0 mbar, [MV312] -1200/0 mbar, [MV320] -1000/1000 mbar, [MV325] -1000/1500 mbar, [MV340] -1000/3000 mbar, [M2160] -10/50 mbar, [M2210] -20/80 mbar, [M2225] -50/200 mbar, [M2260] -100/500 mbar, [M2310] -200/800 mbar, [M3160] -20/40 mbar, [M3210] -25/75 mbar, [M3216] -40/120 mbar, [M3240] -100/300 mbar, [M3260] -200/400 mbar, [M3310] -250/750 mbar, [M4210] -40/60 mbar, [M4216] -60/100 mbar, [M4225] -100/150 mbar, [M4240] -150/250 mbar, [M4310] -400/600 mbar, [M5160] -30/30 mbar, [M5210] -50/50 mbar, [M5216] -80/80 mbar, [M5225] -125/125 mbar, [M5240] -200/200 mbar, [M5260] -300/300 mbar, [M5310] -500/500 mbar, ￭ bar ￭, [BV260] -0.6/0 bar, [BV310] -1/0 bar, [BV320] -1/1 bar, [BV325] -1/1.5 bar, [BV330] -1/2 bar, [BV340] -1/3 bar, [BV350] -1/4 bar, [BV360] -1/5 bar, [BV380] -1/7 bar, [BV410] -1/9 bar, [BV411] -1/10 bar, [BV416] -1/15 bar, [BV425] -1/24 bar, [BV431] -1/30 bar, [BG225] 0...0.25 bar, [BG240] 0/0.4 bar, [BG260] 0/0.6 bar, [BG310] 0/1 bar, [BG316] 0/1.6 bar, [BG320] 0/2 bar, [BG325] 0/2.5 bar, [BG340] 0/4 bar, [BG360] 0/6 bar, [BG370] 0/7 bar, [BG410] 0/10 bar, [BG414] 0/14 bar, [BG416] 0/16 bar, [BG420] 0/20 bar, [BG425] 0/25 bar, [BG430] 0/30 bar, [BG440] 0/40 bar, ￭ mmH2O ￭, [2G159] 0/600 mmH2O, [2G198] 0/1000 mmH2O, [2G216] 0/1600 mmH2O, [2G225] 0/2500 mmH2O, [2G239] 0/4000 mmH2O, [2G259] 0/6000 mmH2O, [2G298] 0/10000 mmH2O, ￭ mH2O ￭, [YG159] 0/0.6 mH2O, [YG198] 0/1 mH2O, [YG216] 0/1.6 mH2O, [YG225] 0/2.5 mH2O, [YG239] 0/4 mH2O, [YG259] 0/6 mH2O, [YG269] 0/7 mH2O, [YG298] 0/10 mH2O, [YG316] 0/16 mH2O, [YG320] 0/20 mH2O, [YG325] 0/25 mH2O, [YG329] 0/30 mH2O, [YG339] 0/40 mH2O, ￭ inH2O ￭, [7G162] 0/25 inH2O, [7G175] 0/30 inH2O, [7G210] 0/40 inH2O, [7G215] 0/60 inH2O, [7G225] 0/100 inH2O, [7G237] 0/150 inH2O, [7G250] 0/200 inH2O, [7G262] 0/250 inH2O, ￭ kPa ￭, [LG160] 0/6 kPa, [LG210] 0/10 kPa, [LG216] 0/16 kPa, [LG225] 0/25 kPa, [LG240] 0/40 kPa, [LG260] 0/60 kPa, [LG270] 0/70 kPa, [LG310] 0/100 kPa, [LG316] 0/160 kPa, [LG320] 0/200 kPa, [LG325] 0/250 kPa, [LG330] 0/300 kPa, [LG340] 0/400 kPa, [LG360] 0/600 kPa, [LG370] 0/700 kPa, [LG380] 0/800 kPa, [LG410] 0/1000 kPa, [LG414] 0/1400 kPa, [LG416] 0/1600 kPa, [LG425] 0/2500 kPa, [LG430] 0/3000 kPa, [LG440] 0/4000 kPa, [LV260] -60/0 kPa, [LV310] -100/0 kPa, [LV320] -100/100 kPa, [LV325] -100/150 kPa, [LV330] -100/200 kPa, [LV340] -100/300 kPa, [LV350] -100/400 kPa, [LV360] -100/500 kPa, [LV380] -100/700 kPa, [LV410] -100/900 kPa, [LV411] -100/1000 kPa, [LV416] -100/1500 kPa, [LV425] -100/2400 kPa, [LV431] -100/3000 kPa, [L3160] -2/4 kPa, [L3260] -20/40 kPa, [L4210] -4...+6 kPa, [L4216] -6/10 kPa, [L4225] -10/15 kPa, [L5230] -15/15 kPa, ￭ MPa ￭, [EG260] 0/0.06 MPa, [EG310] 0/0.1 MPa, [EG316] 0/0.16 MPa, [EG320] 0/0.2 MPa, [EG325] 0/0.25 MPa, [EG340] 0/0.4 MPa, [EG360] 0/0.6 MPa, [EG370] 0/0.7 MPa, [EG410] 0/1 MPa, [EG414] 0/1.4 MPa, [EG416] 0/1.6 MPa, [EG420] 0/2 MPa, [EG425] 0/2.5 MPa, [EG430] 0/3 MPa, [EG440] 0/4 MPa, [EV260] -0.06/0 MPa, [EV310] -0.1/0 MPa, [EV320] -0.1/0.1 MPa, [EV325] -0.1/0.15 MPa, [EV330] -0.1/0.2 MPa, [EV340] -0.1/0.3 MPa, [EV350] -0.1/0.4 MPa, [EV360] -0.1/0.5 MPa, [EV380] -0.1/0.7 MPa, [EV410] -0.1/0.9 MPa, [EV411] -0.1/1 MPa, [EV416] -0.1/1.5 MPa, [EV425] -0.1/2.4 MPa, [EV431] -0.1/3 MPa, ￭ oz/in2 ￭, [JG165] 0/15 oz/in2, [JG186] 0/20 oz/in2, [JG211] 0/25 oz/in2, [JG213] 0/30 oz/in2, [JG217] 0/40 oz/in2, [JG226] 0/60 oz/in2, [JG243] 0/100 oz/in2, [JG269] 0/160 oz/in2, [JG286] 0/200 oz/in2, [JG311] 0/250 oz/in2, [JV165] -15/0 oz/in2, [JV186] -20/0 oz/in2, [JV211] -25/0 oz/in2, [JV213] -30/0 oz/in2, [JV217] -40/0 oz/in2, [JV226] -60/0 oz/in2, [JV243] -100/0 oz/in2, [JV269] -160/0 oz/in2, [JV286] -200/0 oz/in2, [JV311] -250/0 oz/in2, ￭ kg/in2 ￭, [KG259] 0/0.6 kg/cm2, [KG298] 0/1 kg/cm2, [KG316] 0/1.6 kg/cm2, [KG320] 0/2 kg/cm2, [KG325] 0/2.5 kg/cm2, [KG339] 0/4 kg/cm2, [KG359] 0/6 kg/cm2, [KG369] 0/7 kg/cm2, [KG398] 0/10 kg/cm2, [KG414] 0/14 kg/cm2, [KG416] 0/16 kg/cm2, [KG420] 0/20 kg/cm2, [KG425] 0/25 kg/cm2, [KG429] 0/30 kg/cm2, [KG439] 0/40 kg/cm2, [KV259] -0.6/0 kg/cm2, [KV298] -1/0 kg/cm2, [KV320] -1/1 kg/cm2, [KV325] -1/1.5 kg/cm2, [KV329] -1/2 kg/cm2, [KV339] -1/3 kg/cm2, [KV349] -1/4 kg/cm2, [KV359] -1/5 kg/cm2, [KV378] -1/7 kg/cm2, [KV398] -1/9 kg/cm2, [KV411] -1/10 kg/cm2, [KV416] -1/15 kg/cm2, [KV425] -1/24 kg/cm2, [KV430] -1/30 kg/cm2, ￭ psig / -inHg ￭, [NG269] 0/10 psig, [NG310] 0/15 psig, [NG321] 0/30 psig, [NG341] 0/60 psig, [NG369] 0/100 psig, [NG410] 0/150 psig, [NG411] 0/160 psig, [NG414] 0/200 psig, [NG417] 0/250 psig, [NG421] 0/300 psig, [NG428] 0/400 psig, [NG434] 0/500 psig, [NG441] 0/600 psig, [NV251] -15 inHG/0 psig, [NV310] -30 inHG/0 psig, [NV321] -30 inHg/15 psig, [NV331] -30 inHg/30 psig, [NV352] -30 inHg/60 psig, [NV379] -30 inHg/100 psig, [NV412] -30 inHg/160 psig, [NV415] -30 inHg/200 psig, [NV422] -30 inHg/300 psig, ￭ barg ￭, [8G260] 0/0.6 barg, [8G310] 0/1 barg, [8G316] 0/1.6 barg, [8G320] 0/2 barg, [8G325] 0/2.5 barg, [8G340] 0/4 barg, [8G350] 0/5 barg, [8G360] 0/6 barg, [8G370] 0/7 barg, [8G410] 0/10 barg, [8G414] 0/14 barg, [8G416] 0/16 barg, [8G420] 0/20 barg, [8G425] 0/25 barg, [8G430] 0/30 barg, [8G440] 0/40 barg, [8V260] -0.6/0 barg, [8V310] -1/0 barg, [8V320] -1/1 barg, [8V325] -1/1.5 barg, [8V330] -1/2 barg, [8V340] -1/3 barg, [8V350] -1/4 barg, [8V360] -1/5 barg, [8V380] -1/7 barg, [8V410] -1/9 barg, [8V411] -1/10 barg, [8V416] -1/15 barg, [8V425] -1/24 barg, [8V431] -1/30 barg, ￭ kPag ￭, [4G260] 0/60 kPag, [4G310] 0/100 kPag, [4G316] 0/160 kPag, [4G320] 0/200 kPag, [4G325] 0/250 kPag, [4G330] 0/300 kPag, [4G340] 0/400 kPag, [4G360] 0/600 kPag, [4G370] 0/700 kPag, [4G380] 0/800 kPag, [4G410] 0/1000 kPag, [4G414] 0/1400 kPag, [4G416] 0/1600 kPag, [4G420] 0/2000 kPag, [4G425] 0/2500 kPag, [4G430] 0/3000 kPag, [4G440] 0/4000 kPag, [4V260] -60/0 kPag, [4V310] -100/0 kPag, [4V320] -100/100 kPag, [4V325] -100/150 kPag, [4V330] -100/200 kPag, [4V340] -100/300 kPag, [4V350] -100/400 kPag, [4V360] -100/500 kPag, [4V380] -100/700 kPag, [4V410] -100/900 kPag, [4V411] -100/1000 kPag, [4V416] -100/1500 kPag, [4V425] -100/2400 kPag, [4V431] -100/3000 kPag, ￭ MPag ￭, [3G260] 0/0.06 MPag, [3G310] 0/0.1 MPag, [3G316] 0/0.16 MPag, [3G320] 0/0.2 MPag, [3G325] 0/0.25 MPag, [3G340] 0/0.4 MPag, [3G360] 0/0.6 MPag, [3G370] 0/0.7 MPag, [3G410] 0/1 MPag, [3G414] 0/1.4 MPag, [3G416] 0/1.6 MPag, [3G425] 0/2.5 MPag, [3G430] 0/3 MPag, [3G440] 0/4 MPag, [3V260] -0.06/0 MPag, [3V310] -0.1/0 MPag, [3V320] -0.1/0.1 MPag, [3V325] -0.1/0.15 MPag, [3V330] -0.1/0.2 MPag, [3V340] -0.1/0.3 MPag, [3V350] -0.1/0.4 MPag, [3V360] -0.1/0.5 MPag, [3V380] -0.1/0.7 MPag, [3V410] -0.1/0.9 MPag, [3V411] -0.1/1 MPag, [3V416] -0.1/1.5 MPag, [3V425] -0.1/2.4 MPag, [3V431] -0.1/3 MPag, ￭ kg/cm2g ￭, [AG259] 0/0.6 kg/cm2g, [AG298] 0/1 kg/cm2g, [AG316] 0/1.6 kg/cm2g, [AG320] 0/2 kg/cm2g, [AG325] 0/2.5 kg/cm2g, [AG339] 0/4 kg/cm2g, [AG349] 0/5 kg/cm2g, [AG359] 0/6 kg/cm2g, [AG369] 0/7 kg/cm2g, [AG398] 0/10 kg/cm2g, [AG414] 0/14 kg/cm2g, [AG416] 0/16 kg/cm2g, [AG420] 0/20 kg/cm2g, [AG425] 0/25 kg/cm2g, [AG429] 0/30 kg/cm2g, [AG439] 0/40 kg/cm2g, [AV259] -0.6/0 kg/cm2g, [AV298] -1/0 kg/cm2g, [AV320] -1/1 kg/cm2g, [AV325] -1/1.5 kg/cm2g, [AV329] -1/2 kg/cm2g, [AV339] -1/3 kg/cm2g, [AV349] -1/4 kg/cm2g, [AV359] -1/5 kg/cm2g, [AV378] -1/7 kg/cm2g, [AV398] -1/9 kg/cm2g, [AV411] -1/10 kg/cm2g, [AV416] -1/15 kg/cm2g, [AV425] -1/24 kg/cm2g, [AV430] -1/30 kg/cm2g
2nd Scale [Z] Without, [2] mmH2O, [Y] mH2O, [P] psi, [7] inH2O, [M] mbar, [B] bar, [L] kPa, [E] MPa, [K] kg/cm2, [J] oz/in2, [N] psig, [3] MPag, [4] kPag, [5] mmHg, [8] barg, [A] kg/cm2g
Process Connection [AD] 2 x G 1/2 Female, [AB] 2 x G 1/2 B, [AC] 2 x 1/2 NPT Male, [AZ] Pressure Connection Acc. EN 61518
Connector Location [U] Lower Mount, [V] 12 O’Clock, Plus Connection With Plan View Right, [W] 12 O’Clock, Plus Connection With Plan View Left, [A] Back Mount, [1] Back Mount, Bonnets Upper Side, [6] Back Mounts, Bonnets Lower Side, [I] Lower Mount, Plus Connection w/Plan View Left
Flushing Connection [Z] Without, [D] Venting Of Pressure Chamber
Set / Drag Pointer [ZZ] Without, [XZ] Adjustable Set Pointer on Bayonet Ring
Permissible Ambient Temp -20...+60 °C, -40...+60 °C
Permissible Medium Temp [AE] -20...+60 °C, [AS] -20...+100 °C, [A7] -20...+120 °C, [AC] -20...+150 °C, [AH] -20...+200 °C, [BS] -40...+100 °C, [BC] -40...+150 °C, [BH] -40...+200 °C
Mounting Device [Z] Without, [M] Mounting Kit for Surface or Pipe Mounting, Steel Lacquered, [N] Mounting Kit for Surface or Pipe Mounting, 1.4571
Panel Flange [Z-ZZZZ27B] Without, [V-ZZZZ27B] Front Flange w/o Contacts (4"), [V-ZZZZ27B] Front Flange w/o Contacts (6")
Case Filling [Z] Without, [G] Glycerine-Water-Mixture, [D] Silicon Oil, 50 cSt (4"), [D] Silicon Oil, 50 cSt (6"), [1] Prepared for Filling
Case Material [L] 316 SS, [3] 304 SS, [E] 316Ti
Case Surface [D] Bare, [5] Epoxy Coated, [6] Bare Case / Polished Ring
Ingress Protection [F] IP 54, [I] IP 65, [K] IP 66
Thread Protection [Z-U] Without, [1-U] With
Color for Inner Scale [ZZZZZZ222ZZ] Without, [CZZZZZ222ZZ] Red, [AZZZZZ222ZZ] Black
Explosion Protection [Z]
Ignition Protection [Z]
Zone [Z]
Special Design Features [Z] Without
Certificates [Z] Without
Approvals [Z] Without
Assembly Accessory [Z] Without
Additional Ordering Info [Z27B] Without
Accuracy Class [J] +/- 3/2/3% (ASME B40.100 Grade B)
Origin of Wetted Parts [Z] Without Specification
Pressure Gauge Standard [U] US-Standard
Logo Options [ZZZZZ] Without
Manufacturer Logo [2] *Wika®*
Serial Number [2] With Serial Number
Stop Pin on Dial [2] At 6 O'Clock
Red Mark at [Z] Without
Text for Dial [Z] Without
Gauge Features
Gauge: Brand Wika
Gauge: Type Dial Indicating Gauge
Gauge: Model 762.14
Gauge: Dial Size 4 in (100 mm), 6 in (160 mm)
Gauge: Scale Range ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
Gauge: Pressure Type Gauge Pressure
Gauge: Measuring Principle Diaphragm Element
Gauge: Fill Type Dry, Liquid Filled / Fillable
Gauge: Product Unit of Measure mbar, bar, psi / inHg, mmH2O, mH2O, inH2O, kPa, MPa, oz/in2, kg/cm2, psig / inHg, barg, kPag, MPag, kg/cm2g
Gauge: Process Connection Size G 1/2 B, G 1/2 Female, 1/2 NPT Female, 1/2 NPT
Gauge: Process Connection Location Lower Mount, Back Mount, 12 o'clock
Gauge: Process Connection Type Pressure Connection, 3-Way Valve Manifold, 5-Way Valve Manifold, 2-Way (2 x)
Gauge: Wetted Material Stainless Steel, Nickel Alloy
Gauge: Accuracy ±3%
Gauge: Ingress Protection IP 54, IP 65, IP 66
Gauge: Case Material Stainless Steel
