  2. 736.11 Series 4" or 6" SS Very Low Differential Pressure Gauge, SS Wetted Parts

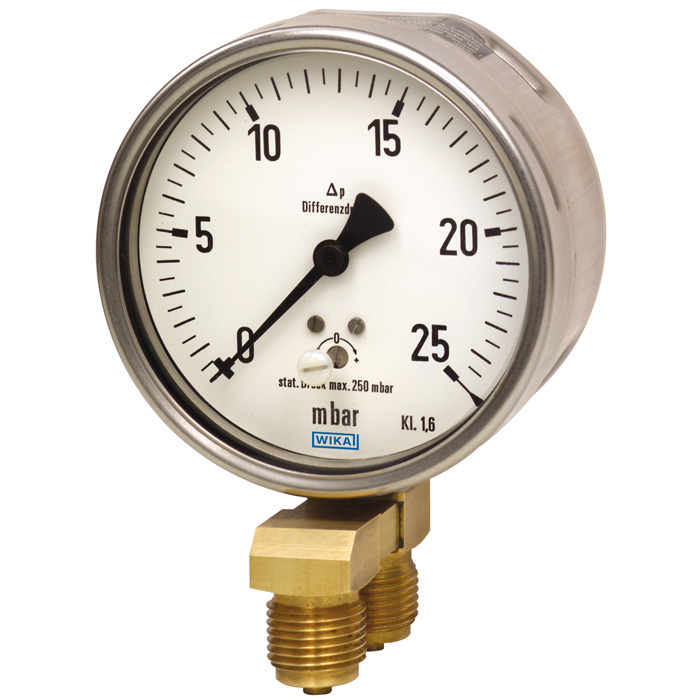

Representative photo. Please check item description for details.

736.11 Series 4" or 6" SS Very Low Differential Pressure Gauge, SS Wetted Parts

https://www.branom.com/web/image/product.template/543996/image_1920?unique=4da3309
(0 review)

Manufacturer
Wika Instrument Lp
MADE TO ORDER


Datasheet

736.11 SS Low Differential Press Gauge

$ 1,735.15 1735.15 USD $ 1,836.14

$ 1,836.14

Not Available For Sale

  • Nominal Size
  • Scale Range
  • 2nd Scale
  • Process Connection
  • Connector Location
  • Overpressure Safety
  • Mounting Flange / Bracket
  • Certificates
  • Approvals
  • Additional Ordering Info
  • Pressure Gauge Standard
  • Color for Inner Scale
  • Logo Options
  • Manufacturer Logo
  • Serial Number
  • Stop Pin on Dial
  • Text for Dial
  • Gauge: Brand
  • Gauge: Model
  • Gauge: Dial Size
  • Gauge: Dial Size
  • Gauge: Scale Range
  • Gauge: Pressure Type
  • Gauge: Measuring Principle
  • Gauge: Fill Type
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Location
  • Gauge: Process Connection Location
  • Gauge: Process Connection Type
  • Gauge: Wetted Material
  • Gauge: Accuracy
  • Gauge: Ingress Protection
  • Gauge: Case Material
  • Gauge: Window
  • Gauge: Dial Material
  • Gauge: Pointer Material

This combination does not exist.

Contact Us

The Wika 736.11 Series SS Very Low Differential Pressure Gauge with a Calibrated Spring Membrane is the perfect choice for accurately measuring extremely low differential pressures in various applications. This gauge is specifically designed for use with gaseous, dry, clean, oil and grease-free media, ensuring precision and reliability in sensitive environments. Stainless steel wetted parts enhance durability and compatibility with a range of media.


Ideal for filter monitoring in ventilation and heating systems, as well as in overpressure and clean rooms, this gauge excels in maintaining optimal conditions. It also effectively monitors differential pressure in ventilator and blast pressure applications. With differential pressure measuring ranges from 0 to 2.5 mbar, it ensures precise readings for the most exacting requirements.


The gauge features a standard front zero adjustment for easy calibration and maintenance, while its IP66 ingress protection guarantees resistance to dust and water ingress. The robust stainless steel case further ensures longevity and durability in demanding environments.


For unparalleled quality and performance, the Wika 736.11 Series SS Differential Pressure Gauge from Branom Instrument Co. is the best choice. Trust Branom for superior instrumentation solutions tailored to your specific needs.


Order Code Prefix: 736.11-

Specifications

Wika 736.11
Nominal Size [E] 4" or [F] 6"
Scale Range ￭ mbar ￭ or [MG025] 0/2.5 mbar or [MG040] 0/4 mbar or [MG060] 0/6 mbar or [MG110] 0/10 mbar or [MG116] 0/16 mbar or [MG125] 0/25 mbar or [MG140] 0/40 mbar or [MG160] 0/60 mbar or [MG210] 0/100 mbar or [MG216] 0/160 mbar or [MG225] 0/250 mbar
2nd Scale [Z] Without or [L] kPa or [2] mmH2O or [7] inH2O or [5] mmHg
Process Connection [AB] 2 x G 1/2 B or [AC] 2 x 1/2 NPT Male or [AF] 2 x 1/4 NPT Male or [AX] 2 x M20x1,5 Male
Connector Location [U] Lower Mount or [A] Back Mount
Overpressure Safety [M] Max Scale Reading (fsd) or [O] To Max Working Pressure or [N] 3 x FSV
Mounting Flange / Bracket [Z-ZZZ2-U] Without or [C-ZZZ2-U] Rear Flange, Stainless Steel (4") or [C-ZZZ2-U] Rear Flange, Stainless Steel (6") or [M-ZZZ2-U] Front Flange, Stainless Steel (4") or [M-ZZZ2-U] Front Flange, Stainless Steel (6")
Color for Inner Scale [ZZZZZZ2] Without or [CZZZZZ2] Red or [AZZZZZ2] Black
Stop Pin on Dial [ZZ] Without or [2Z] At 6 O'Clock
Certificates [Z] Without
Approvals [Z] Without
Additional Ordering Info [Z2] Without
Pressure Gauge Standard [U] US-Standard
Logo Options [ZZZZZ] Without
Manufacturer Logo [2] *Wika®*
Serial Number [2] With Serial Number
Text for Dial [Z] Without
Gauge Features
Gauge: Brand Wika
Gauge: Model 736.11
Gauge: Dial Size 4 in (100 mm), 6 in (160 mm)
Gauge: Scale Range ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar)
Gauge: Pressure Type Differential Pressure
Gauge: Measuring Principle Capsule Element
Gauge: Fill Type Dry
Gauge: Product Unit of Measure mbar, kPa, mmH2O, inH2O
Gauge: Process Connection Size 1/2 NPT Male, 1/4 NPT, G 1/2 B, M20 x 1.5
Gauge: Process Connection Location Lower Mount, Back Mount
Gauge: Process Connection Type 2-Way (2 x)
Gauge: Wetted Material Stainless Steel
Gauge: Accuracy ±2%
Gauge: Ingress Protection IP 66
Gauge: Case Material Stainless Steel
Gauge: Window Plastic, Clear
Gauge: Dial Material Aluminum, White
Gauge: Pointer Material Aluminum, Black
