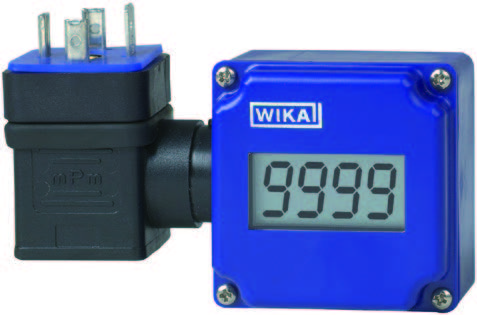

Wika A-AI-1 Attachable Indicator, Standard Version
|
Manufacturer Product Code 7082534 |
Manufacturer Wika Instrument Lp |
|
MADE TO ORDER
|
Weight 0.62 lb(s) Datasheet |
Wika 7082534 Digital pressure display attaches to Wika
transmitters without additional wiring and in less than two minutes.
This easy to read loop powered display works with all Wika S-10, S-11
and Eco-Tronic (ECO-1) series 4-20mA transmitters. Sandwich mount the
display between the transmitter and the DIN 43650 4 pin plug connector.
The indicator is user-programmable for a display range of -1999 to
+9999. The 0.4 inch LCD readout can be tilted for improved viewing.
User-adjustable digital filtering improves readability during rapid
pressure changes. All set up data is stored in an EEPROM so in the event
of a power failure reprogramming is unnecessary. The indicator meets IP
65 weather protection requirements.
Features:
- Power: Loop powered - no additional power supply required
- Operating Temperature: +32 °F to +122 °F (0C to +50C)
- Storage Temperature: -22 °F to +176 °F (-30C to +80C)
- Temperature Effects: 0.1% of span per 18 °F (10C)
- Construction: ABS plastic case, polycarbonate viewing window
- Accuracy: less than or equal to 0.2% of span
