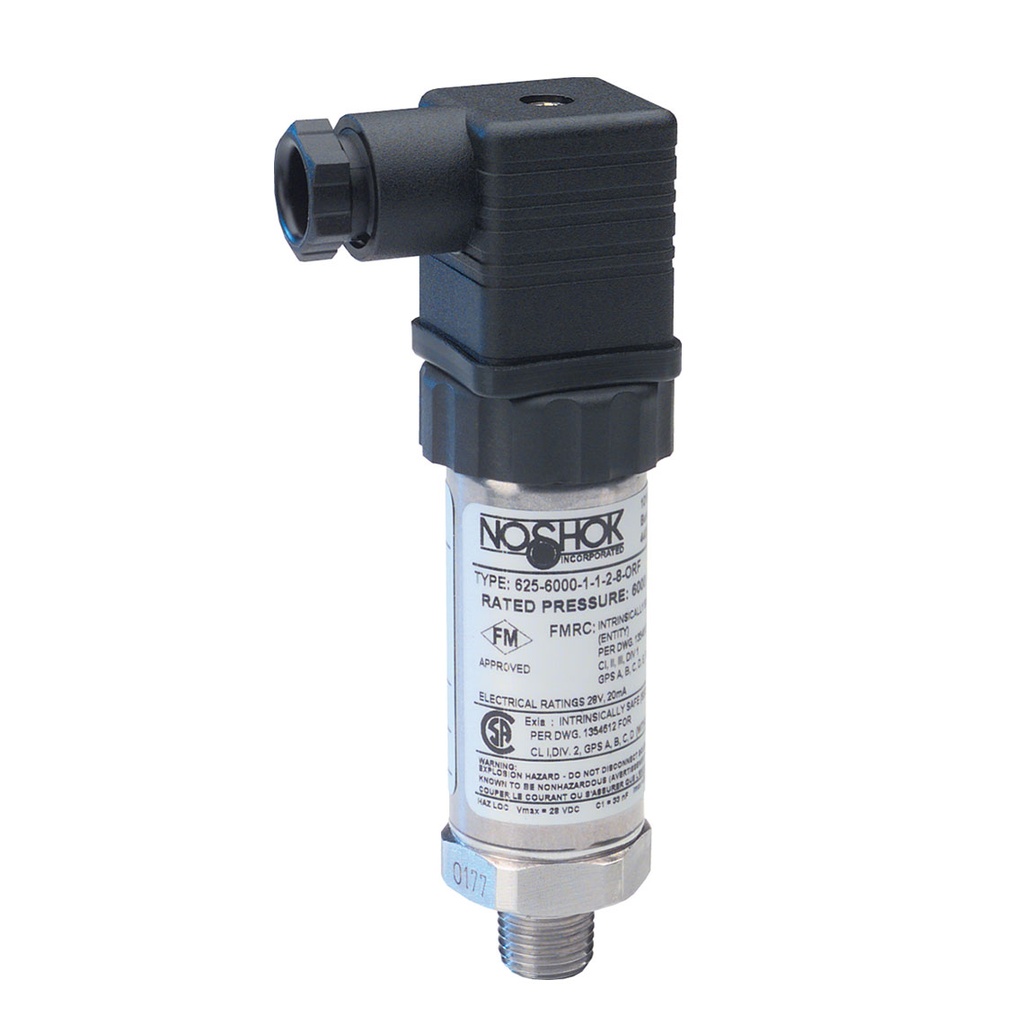

Representative photo. Please check item description for details.
625 Series Intrinsically Safe Pressure Transmitter, 0 psig to 3,000 psig, SS Threaded Connection
Manufacturer: Noshok Inc
Mfg Product Code: 625-3000-1-1-2-36
Weight: 0.45 lb(s)
On Hand: 0
0-3,000 psig, 0.25% Accy BFSL, 4-20 mA O/P, 1/4" NPT Male Pressure Transmitter, 36" Integral Cable
- Low pressure ranges for vapor recovery applications, vacuum and compound ranges through 0 psig to 15,000 psig; absolute ranges from 0 psia to 15 psia through 0 psia to 300 psia
- Current output
- 316 and 14-4PH Stainless Steel wetted parts
Applications:
- Chemical processing
- Gas pressure measurement
- Oil field & offshore
- Mining
- Vapory recovery systems
- Well head measurement
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Measurement Maximum | 3000.0 |
| Process Connection Type | NPT-Male |
| Pressure Range | 0 psig to 3,000 psig |
| Min Operating Pressure | 0 psig |
| Max Operating Pressure | 3000 psig |
| Min Operating Temperature | -4 °F |
| Product Unit of Measure | psig |
| Max Operating Temperature | 185 °F |
| Process Connection Size | 1/4" |
| Accuracy | ±0.25% full scale (BFSL) |
| Case Material | 316 SS |
| Wetted Material | 316 SS |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mA, 2-wire |
| Input Voltage | 10-30VDC |
| Ingress Protection | IP67 |
| Response Time | ≤1 ms |
| Electrical Connector Type | Integral Cable |
| Cable Length (ft) | 3.0 |
| Cord/Cable Length | 3 ft |
