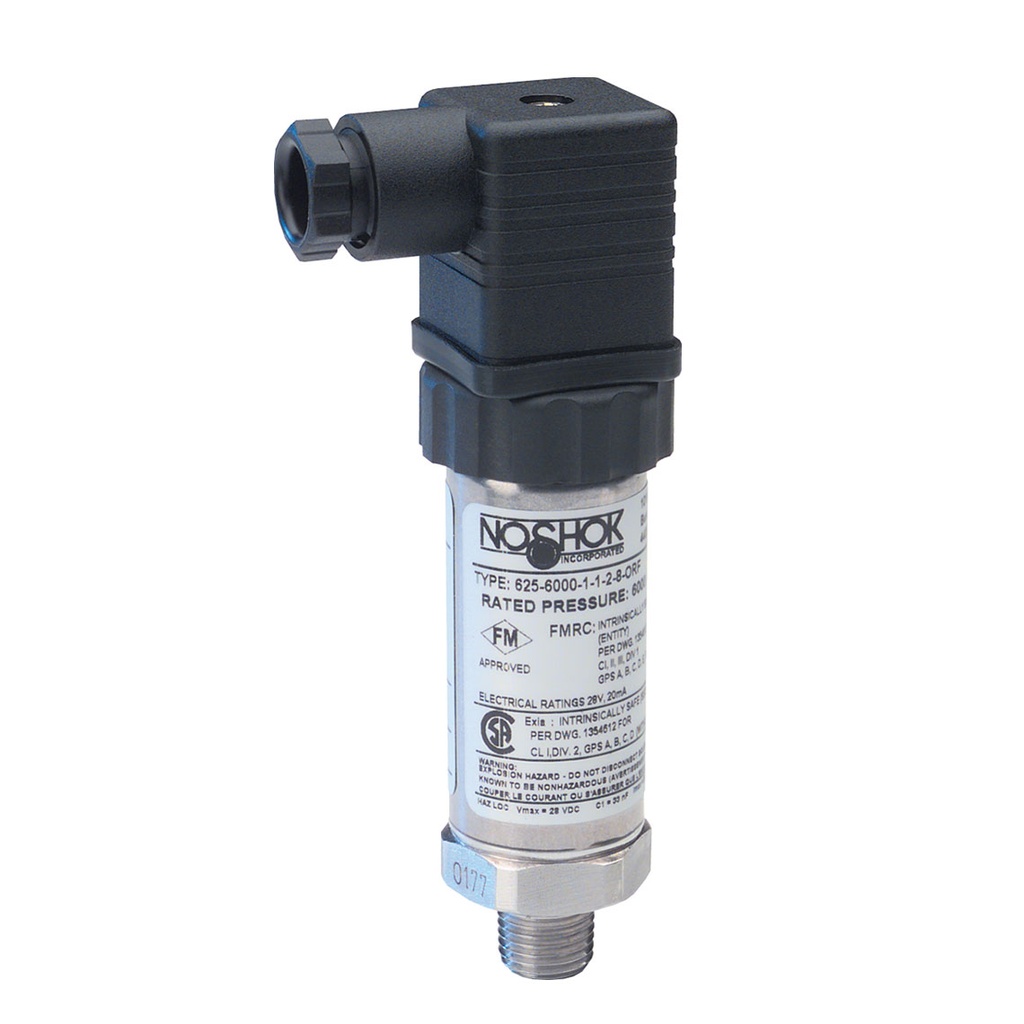

625 Series Intrinsically Safe Pressure Transmitter, 0 psig to 100 psig, SS Threaded Connection w 36" integral cable

https://www.pressureworx.com/web/image/product.template/532732/image_1920?unique=1f08bfe
(0 review)

  • Low pressure ranges for vapor recovery applications, vacuum and compound ranges through 0 psig to 15,000 psig; absolute ranges from 0 psia to 15 psia through 0 psia to 300 psia
  • Current output
  • 316 and 14-4PH Stainless Steel wetted parts

Applications:

  • Chemical processing
  • Gas pressure measurement
  • Oil field & offshore
  • Mining
  • Vapory recovery systems
  • Well head measurement

WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

698.07 698.0715 USD 738.70

738.70

Not Available For Sale

  • Measurement Maximum
  • Process Connection Type
  • Pressure Range
  • Min Operating Pressure
  • Max Operating Pressure
  • Min Operating Temperature
  • Product Unit of Measure
  • Max Operating Temperature
  • Process Connection Size
  • Accuracy
  • Case Material
  • Wetted Material
  • Measurement Minimum
  • Output Communication Protocol
  • Input Voltage
  • Ingress Protection
  • Response Time
  • Electrical Connector Type

This combination does not exist.

Specifications

Measurement Maximum 100.0
Process Connection Type NPT-Male
Pressure Range 0 to 100 psig
Min Operating Pressure 0 psig
Max Operating Pressure 100 psig
Min Operating Temperature -4 °F
Product Unit of Measure psig
Max Operating Temperature 185 °F
Process Connection Size 1/4"
Accuracy ±0.25% full scale (BFSL)
Case Material 316 SS
Wetted Material 316 SS
Measurement Minimum 0
Output Communication Protocol 4-20 mA, 2-wire
Input Voltage 10-30VDC
Ingress Protection IP65
Response Time ≤1 ms
Electrical Connector Type DIN EN 175301-803 Form A
