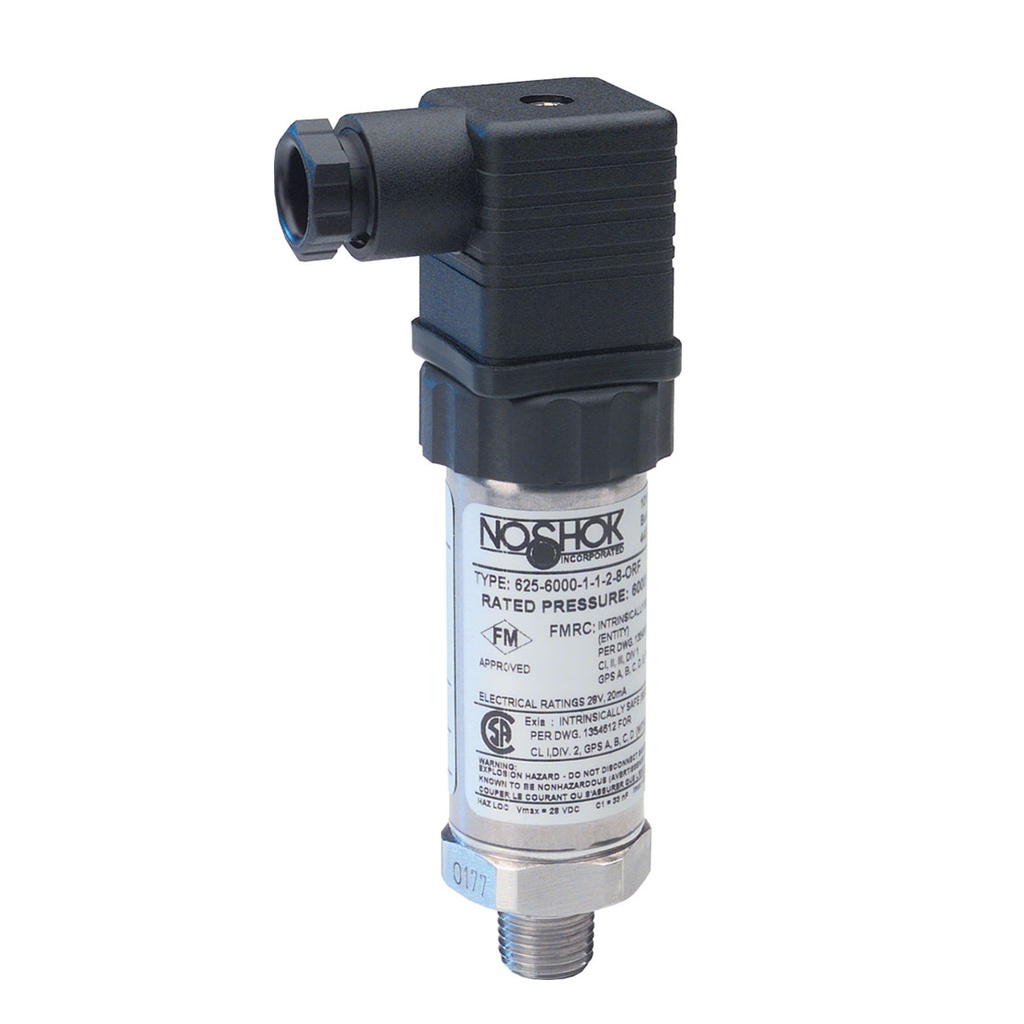

625 Series Intrinsically Safe Pressure Transmitter, 0 psig to 100 psig, SS Threaded Connection w 20FT Cable
|
Manufacturer Product Code 625-100-1-1-2-36-20 |
Manufacturer Noshok Inc |
|
MADE TO ORDER
|
Weight 1.0 lb(s) Datasheet |
Specifications
| Measurement Maximum | 100.0 |
| Process Connection Type | NPT-Male |
| Pressure Range | 0 to 100 psig |
| Min Operating Pressure | 0 psig |
| Max Operating Pressure | 100 psig |
| Min Operating Temperature | -4 °F |
| Product Unit of Measure | psig |
| Max Operating Temperature | 185 °F |
| Process Connection Size | 1/4" |
| Accuracy | ±0.25% full scale (BFSL) |
| Case Material | 316 SS |
| Wetted Material | 316 SS |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mA, 2-wire |
| Input Voltage | 10-30VDC |
| Ingress Protection | IP65 |
| Response Time | ≤1 ms |
| Electrical Connector Type | DIN EN 175301-803 Form A |
