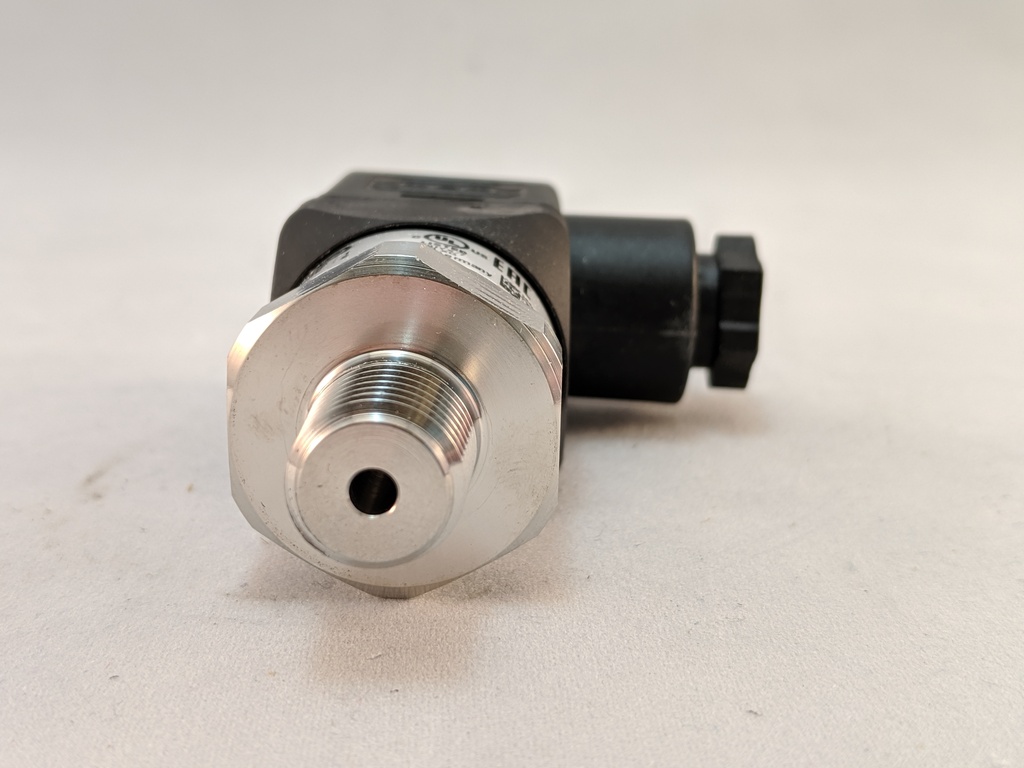

WIKA A-10, 0-25 psig, 1/4" NPT, 4-20 mA, Hirschman Connector
Manufacturer: Wika Instrument Lp
Mfg Product Code: 50426401
Weight: 0.62 lb(s)
Pressure transmitter Model A-10
The WIKA 50426401 A-10 series general industrial pressure transmitter is precision engineered and manufactured to fit many industrial and OEM pressure measurement applications. Exceptionally simple installation, set-up and operation with an excellent price/performance ratio set this highly-reliable product apart. The rugged design provides resistance to vibration, shock, wide temperature variations, RFI and other extreme environmental conditions that are typical of industrial and OEM applications. Performance and reliability is enhanced by the all stainless steel welded measuring cell that eliminates the need for soft sealing materials that may deteriorate over time. The state-of-the-art manufacturing and assembly process increases the long term reliability of the A-10. These transmitters will provide an output that is both linear and proportional to the applied pressure. The output signal is sent to computers, chart recorders, PLC's, digital panel meters or other devices to display, record and/or change the system being monitored. Primary applications include process control and automation, hydraulics, pneumatics, and machine controls.
Features
- Input Pressure: 0-25 PSI
- Pressure Connection: 1/4" NPT male
- Electrical Output: 4-20 mA 2-wire
- Excitation: 8-30 VDC power supply
- Current Consumption: Signal current (25mA max.)
- Maximum Pressure: 60 PSI
- Burst Pressure: 150 PSI
- Accuracy: +/- 0.5% BFSL non-linearity (+/- 1.0% includes non-linearity, hysteresis, zero point, full scale error)
- Response Time: < 4 ms
- Temperature Range: Media 32 °F to 176 °F, Ambient 32 °F to 176 °F
- Electrical Connection: DIN L-Plug Connector (DIN EN 175301-803A) with solderless screw terminals and cable entry
- Wiring Protection: Overvoltage, short circuit, reverse polarity
- Environmental Protection: IP65 (dust and water spray)
- Agency Approvals: UL, CSA, CE conformity
- Internal Transmitting Fluid: Silicone oil
- Wetted Parts: 316L Stainless steel (parts in contact with media)
- Case Material: 316L Stainless Steel
