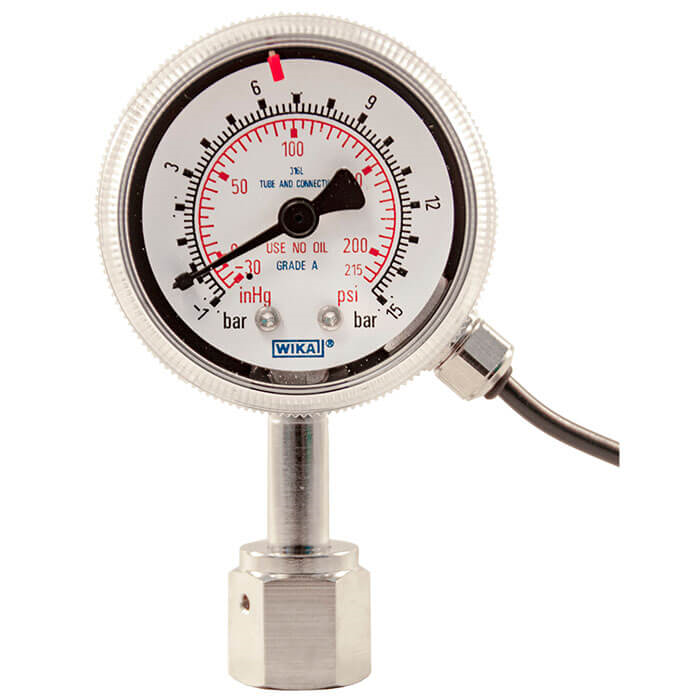

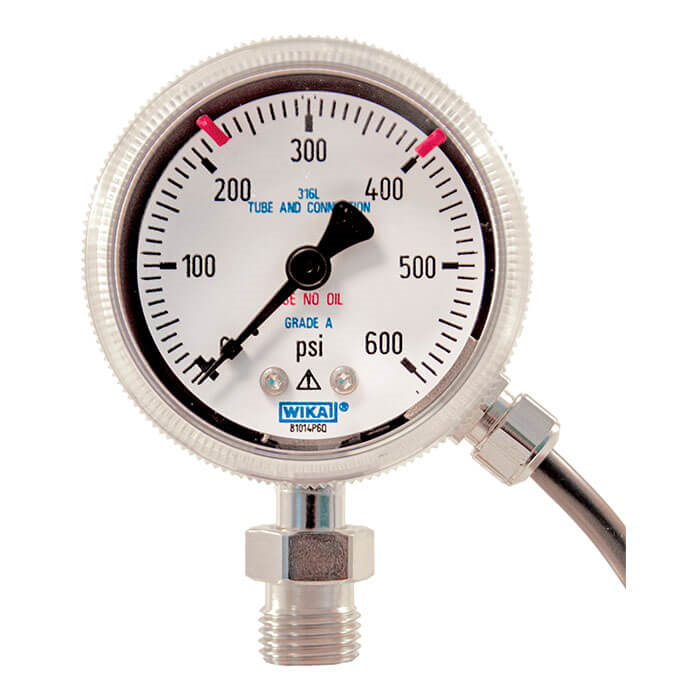

230.15 Series 1.5" or 2" Dry SS Ultra High Purity (UHP) Pressure Gauge, SS Wetted Parts

https://www.pressureworx.com/web/image/product.template/543440/image_1920?unique=4be4bd8
(0 review)

Manufacturer
Wika Instrument Lp
MADE TO ORDER


Datasheet

The 230.15 Series Ultra High Purity Pressure Gauge is an exceptional choice for industries requiring precise and contamination-free pressure measurement. Specifically designed for applications in the semiconductor and electronic industry, as well as the medical, gene technology, biotechnology, and pharmaceutical sectors, this gauge is ideal for use in corrosive environments and with both gaseous and liquid media that do not obstruct the pressure system. It excels in measuring high purity gases without compromising the process media.


Constructed with 316L wetted parts, the gauge ensures superior durability and resistance to corrosion. The electro-polished stainless steel case and face-seal connection further enhance its robustness and reliability. The 230.15 Series offers both positive and compound pressure ranges up to 10,000 psi, making it versatile for a wide range of applications.

When seeking a reliable source for the 230.15 Series Ultra High Purity Pressure Gauge, Branom stands out as the best store to purchase from, offering top-quality products and unparalleled customer service.


  • Nominal Size
  • Scale Range
  • 2nd Scale
  • Process Connection
  • Connector Location
  • Mounting Flange / Bracket
  • Switch Type
  • Electrical Connection
  • Approvals
  • Certificates
  • Additional Ordering Info
  • Accuracy Class
  • Window
  • Case Material
  • Wetted Parts
  • System Quality
  • Connection Surface Finish
  • Cleaning
  • Gauge: Brand
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Process Connection Location
  • Gauge: Process Connection Location
  • Gauge: Case Material
  • Gauge: Window
  • Gauge: Dial Material
  • Gauge: Pointer Material
  • Gauge: Bezel Material
  • Gauge: Wetted Material
  • Gauge: Fill Type
  • Gauge: Dial Size
  • Gauge: Dial Size
  • Gauge: Process Connection Size
  • Gauge: Accuracy
  • Gauge: Accuracy
  • Gauge: Measuring Principle
  • Gauge: Pressure Type
  • Gauge: Model
  • Gauge: Scale Range

This combination does not exist.

The 230.15 Series Ultra High Purity Pressure Gauge is an exceptional choice for industries requiring precise and contamination-free pressure measurement. Specifically designed for applications in the semiconductor and electronic industry, as well as the medical, gene technology, biotechnology, and pharmaceutical sectors, this gauge is ideal for use in corrosive environments and with both gaseous and liquid media that do not obstruct the pressure system. It excels in measuring high purity gases without compromising the process media.


Constructed with 316L wetted parts, the gauge ensures superior durability and resistance to corrosion. The electro-polished stainless steel case and face-seal connection further enhance its robustness and reliability. The 230.15 Series offers both positive and compound pressure ranges up to 10,000 psi, making it versatile for a wide range of applications.

When seeking a reliable source for the 230.15 Series Ultra High Purity Pressure Gauge, Branom stands out as the best store to purchase from, offering top-quality products and unparalleled customer service.


Contact Us

Share

Specifications

Wika 230.15
Nominal Size [6] 1.5", [7] 2"
Scale Range ￭ psi ￭, [PG310] 0/15 psi, [PG321] 0/30 psi, [PG341] 0/60 psi, [PG369] 0/100 psi, [PG410] 0/150 psi, [PG411] 0/160 psi, [PG414] 0/200 psi, [PG417] 0/250 psi, [PG421] 0/300 psi, [PG428] 0/400 psi, [PG434] 0/500 psi, [PG441] 0/600 psi, [PG469] 0/1000 psi, [PG510] 0/1500 psi, [PG514] 0/2000 psi, [PG521] 0/3000 psi, [PG528] 0/4000 psi, [PG534] 0/5000 psi, [PG541] 0/6000 psi, ￭ psi / inHg ￭, [PV310] -30 inHg/0 psi, [PV321] -30 inHg/15 psi, [PV331] -30 inHg/30 psi, [PV340] -30 inHg/45 psi, [PV352] -30 inHg/60 psi, [PV379] -30 inHg/100 psi, [PV412] -30 inHg/160 psi, [PV415] -30 inHg/200 psi, [PV422] -30 inHg/300 psi, ￭ bar ￭, [BG310] 0/1 bar, [BG316] 0/1.6 bar, [BG320] 0/2 bar, [BG325] 0/2.5 bar, [BG340] 0/4 bar, [BG360] 0/6 bar, [BG370] 0/7 bar, [BG410] 0/10 bar, [BG414] 0/14 bar, [BG416] 0/16 bar, [BG420] 0/20 bar, [BG425] 0/25 bar, [BG430] 0/30 bar, [BG440] 0/40 bar, [BG460] 0/60 bar, [BG470] 0/70 bar, [BG510] 0/100 bar, [BG514] 0/140 bar, [BG516] 0/160 bar, [BG520] 0/200 bar, [BG532] 0/315 bar, [BG540] 0/400 bar, ￭ bar vacuum ￭, [BV310] -1/0 bar, [BV316] -1/0.6 bar, [BV320] -1/1 bar, [BV325] -1/1.5 bar, [BV330] -1/2 bar, [BV340] -1/3 bar, [BV350] -1/4 bar, [BV360] -1/5 bar, [BV380] -1/7 bar, [BV410] -1/9 bar, [BV411] -1/10 bar, [BV416] -1/15 bar, [BV425] -1/24 bar, [BV426] -1/25 bar, [BV431] -1/30 bar, ￭ kPa ￭, [LG310] 0/100 kPa, [LG316] 0/160 kPa, [LG320] 0/200 kPa, [LG325] 0/250 kPa, [LG330] 0/300 kPa, [LG340] 0/400 kPa, [LG360] 0/600 kPa, [LG370] 0/700 kPa, [LG410] 0/1000 kPa, [LG414] 0/1400 kPa, [LG416] 0/1600 kPa, [LG425] 0/2500 kPa, [LG430] 0/3000 kPa, [LG440] 0/4000 kPa, [LG460] 0/6000 kPa, [LG470] 0/7000 kPa, [LG510] 0/10000 kPa, [LG514] 0/14000 kPa, [LG516] 0/16000 kPa, [LG520] 0/20000 kPa, [LG532] 0/31500 kPa, [LG540] 0/40000 kPa, ￭ kPa vacuum ￭, [LV310] -100/0 kPa, [LV316] -100/60 kPa, [LV320] -100/100 kPa, [LV325] -100/150 kPa, [LV330] -100/200 kPa, [LV340] -100/300 kPa, [LV350] -100/400 kPa, [LV360] -100/500 kPa, [LV380] -100/700 kPa, [LV410] -100/900 kPa, [LV411] -100/1000 kPa, [LV416] -100/1500 kPa, [LV425] -100/2400 kPa, [LV431] -100/3000 kPa, ￭ MPa ￭, [EG310] 0/0.1 MPa, [EG316] 0/0.16 MPa, [EG320] 0/0.2 MPa, [EG325] 0/0.25 MPa, [EG340] 0/0.4 MPa, [EG360] 0/0.6 MPa, [EG370] 0/0.7 MPa, [EG410] 0/1 MPa, [EG414] 0/1.4 MPa, [EG416] 0/1.6 MPa, [EG420] 0/2 MPa, [EG425] 0/2.5 MPa, [EG430] 0/3 MPa, [EG440] 0/4 MPa, [EG460] 0/6 MPa, [EG470] 0/7 MPa, [EG510] 0/10 MPa, [EG514] 0/14 MPa, [EG516] 0/16 MPa, [EG520] 0/20 MPa, [EG532] 0/31.5 MPa, [EG540] 0/40 MPa, ￭ MPa vacuum ￭, [EV310] -0.1/0 MPa, [EV316] -0.1/0.06 MPa, [EV320] -0.1/0.1 MPa, [EV325] -0.1/0.15 MPa, [EV330] -0.1/0.2 MPa, [EV340] -0.1/0.3 MPa, [EV350] -0.1/0.4 MPa, [EV360] -0.1/0.5 MPa, [EV380] -0.1/0.7 MPa, [EV410] -0.1/0.9 MPa, [EV411] -0.1/1 MPa, [EV416] -0.1/1.5 MPa, [EV425] -0.1/2.4 MPa, [EV431] -0.1/3 MPa, ￭ kg/cm2 ￭, [KG298] 0/1 kg/cm2, [KG316] 0/1.6 kg/cm2, [KG320] 0/2 kg/cm2, [KG325] 0/2.5 kg/cm2, [KG339] 0/4 kg/cm2, [KG359] 0/6 kg/cm2, [KG369] 0/7 kg/cm2, [KG398] 0/10 kg/cm2, [KG414] 0/14 kg/cm2, [KG416] 0/16 kg/cm2, [KG420] 0/20 kg/cm2, [KG425] 0/25 kg/cm2, [KG429] 0/30 kg/cm2, [KG439] 0/40 kg/cm2, [KG459] 0/60 kg/cm2, [KG469] 0/70 kg/cm2, [KG498] 0/100 kg/cm2, [KG514] 0/140 kg/cm2, [KG516] 0/160 kg/cm2, [KG520] 0/200 kg/cm2, [KG531] 0/315 kg/cm2, [KG539] 0/400 kg/cm2, ￭ kg/cm2 vacuum ￭, [KV298] -1/0 kg/cm2, [KV316] -1/0.6 kg/cm2, [KV320] -1/1 kg/cm2, [KV325] -1/1.5 kg/cm2, [KV329] -1/2 kg/cm2, [KV339] -1/3 kg/cm2, [KV349] -1/4 kg/cm2, [KV359] -1/5 kg/cm2, [KV378] -1/7 kg/cm2, [KV398] -1/9 kg/cm2, [KV411] -1/10 kg/cm2, [KV416] -1/15 kg/cm2, [KV425] -1/24 kg/cm2, [KV430] -1/30 kg/cm2, ￭ barg ￭, [8G310] 0/1 barg, [8G316] 0/1.6 barg, [8G320] 0/2 barg, [8G325] 0/2.5 barg, [8G340] 0/4 barg, [8G350] 0/5 barg, [8G360] 0/6 barg, [8G370] 0/7 barg, [8G410] 0/10 barg, [8G414] 0/14 barg, [8G416] 0/16 barg, [8G420] 0/20 barg, [8G425] 0/25 barg, [8G430] 0/30 barg, [8G440] 0/40 barg, [8G460] 0/60 barg, [8G470] 0/70 barg, [8G510] 0/100 barg, [8G514] 0/140 barg, [8G516] 0/160 barg, [8G520] 0/200 barg, [8G532] 0/315 barg, [8G540] 0/400 barg, ￭ barg vacuum ￭, [8V310] -1/0 barg, [8V316] -1/0.6 barg, [8V320] -1/1 barg, [8V325] -1/1.5 barg, [8V330] -1/2 barg, [8V340] -1/3 barg, [8V350] -1/4 barg, [8V360] -1/5 barg, [8V380] -1/7 barg, [8V410] -1/9 barg, [8V411] -1/10 barg, [8V416] -1/15 barg, [8V425] -1/24 barg, [8V431] -1/30 barg, ￭ psig ￭, [NG310] 0/15 psig, [NG321] 0/30 psig, [NG341] 0/60 psig, [NG369] 0/100 psig, [NG410] 0/150 psig, [NG411] 0/160 psig, [NG414] 0/200 psig, [NG417] 0/250 psig, [NG421] 0/300 psig, [NG428] 0/400 psig, [NG434] 0/500 psig, [NG441] 0/600 psig, [NG469] 0/1000 psig, [NG510] 0/1500 psig, [NG514] 0/2000 psig, [NG521] 0/3000 psig, [NG528] 0/4000 psig, [NG534] 0/5000 psig, [NG541] 0/6000 psig, ￭ psig / inHg ￭, [NV310] -30 inHG/0 psig, [NV321] -30 inHg/15 psig, [NV331] -30 inHg/30 psig, [NV352] -30 inHg/60 psig, [NV379] -30 inHg/100 psig, [NV412] -30 inHg/160 psig, [NV415] -30 inHg/200 psig, [NV422] -30 inHg/300 psig, ￭ kPag ￭, [4G310] 0/100 kPag, [4G316] 0/160 kPag, [4G320] 0/200 kPag, [4G325] 0/250 kPag, [4G330] 0/300 kPag, [4G340] 0/400 kPag, [4G360] 0/600 kPag, [4G370] 0/700 kPag, [4G410] 0/1000 kPag, [4G414] 0/1400 kPag, [4G416] 0/1600 kPag, [4G420] 0/2000 kPag, [4G425] 0/2500 kPag, [4G430] 0/3000 kPag, [4G440] 0/4000 kPag, [4G460] 0/6000 kPag, [4G470] 0/7000 kPag, [4G510] 0/10000 kPag, [4G514] 0/14000 kPag, [4G516] 0/16000 kPag, [4G520] 0/20000 kPag, [4G532] 0/31500 kPag, [4G540] 0/40000 kPag, ￭ kPag vacuum ￭, [4V310] -100/0 kPag, [4V316] -100/60 kPag, [4V320] -100/100 kPag, [4V325] -100/150 kPag, [4V330] -100/200 kPag, [4V340] -100/300 kPag, [4V350] -100/400 kPag, [4V360] -100/500 kPag, [4V380] -100/700 kPag, [4V410] -100/900 kPag, [4V411] -100/1000 kPag, [4V416] -100/1500 kPag, [4V425] -100/2400 kPag, [4V431] -100/3000 kPag, ￭ MPag ￭, [3G310] 0/0.1 MPag, [3G316] 0/0.16 MPag, [3G320] 0/0.2 MPag, [3G325] 0/0.25 MPag, [3G340] 0/0.4 MPag, [3G360] 0/0.6 MPag, [3G370] 0/0.7 MPag, [3G410] 0/1 MPag, [3G414] 0/1.4 MPag, [3G416] 0/1.6 MPag, [3G425] 0/2.5 MPag, [3G430] 0/3 MPag, [3G440] 0/4 MPag, [3G460] 0/6 MPag, [3G470] 0/7 MPag, [3G510] 0/10 MPag, [3G514] 0/14 MPag, [3G516] 0/16 MPag, [3G520] 0/20 MPag, [3G532] 0/31.5 MPag, [3G540] 0/40 MPag, ￭ MPag vacuum ￭, [3V310] -0.1/0 MPag, [3V316] -0.1/0.06 MPag, [3V320] -0.1/0.1 MPag, [3V325] -0.1/0.15 MPag, [3V330] -0.1/0.2 MPag, [3V340] -0.1/0.3 MPag, [3V350] -0.1/0.4 MPag, [3V360] -0.1/0.5 MPag, [3V380] -0.1/0.7 MPag, [3V410] -0.1/0.9 MPag, [3V411] -0.1/1 MPag, [3V416] -0.1/1.5 MPag, [3V425] -0.1/2.4 MPag, [3V431] -0.1/3 MPag, ￭ kg/cm2g ￭, [AG298] 0/1 kg/cm2g, [AG316] 0/1.6 kg/cm2g, [AG320] 0/2 kg/cm2g, [AG325] 0/2.5 kg/cm2g, [AG339] 0/4 kg/cm2g, [AG349] 0/5 kg/cm2g, [AG359] 0/6 kg/cm2g, [AG369] 0/7 kg/cm2g, [AG398] 0/10 kg/cm2g, [AG414] 0/14 kg/cm2g, [AG416] 0/16 kg/cm2g, [AG420] 0/20 kg/cm2g, [AG425] 0/25 kg/cm2g, [AG429] 0/30 kg/cm2g, [AG439] 0/40 kg/cm2g, [AG459] 0/60 kg/cm2g, [AG469] 0/70 kg/cm2g, [AG498] 0/100 kg/cm2g, [AG514] 0/140 kg/cm2g, [AG516] 0/160 kg/cm2g, [AG520] 0/200 kg/cm2g, [AG531] 0/315 kg/cm2g, [AG539] 0/400 kg/cm2g, ￭ kg/cm2g vacuum ￭, [AV298] -1/0 kg/cm2g, [AV316] -1/0.6 kg/cm2g, [AV320] -1/1 kg/cm2g, [AV325] -1/1.5 kg/cm2g, [AV329] -1/2 kg/cm2g, [AV339] -1/3 kg/cm2g, [AV349] -1/4 kg/cm2g, [AV359] -1/5 kg/cm2g, [AV378] -1/7 kg/cm2g, [AV398] -1/9 kg/cm2g, [AV411] -1/10 kg/cm2g, [AV416] -1/15 kg/cm2g, [AV425] -1/24 kg/cm2g, [AV430] -1/30 kg/cm2g, ￭ kgf/cm2 ￭, [IG298] 0...1 kgf/cm2, [IG316] 0...1,6 kgf/cm2, [IG320] 0...2 kgf/cm2, [IG325] 0...2,5 kgf/cm2, [IG339] 0...4 kgf/cm2, [IG359] 0...6 kgf/cm2, [IG369] 0...7 kgf/cm2, [IG398] 0...10 kgf/cm2, [IG414] 0...14 kgf/cm2, [IG416] 0...16 kgf/cm2, [IG420] 0...20 kgf/cm2, [IG425] 0...25 kgf/cm2, [IG429] 0...30 kgf/cm2, [IG439] 0...40 kgf/cm2, [IG459] 0...60 kgf/cm2, [IG469] 0...70 kgf/cm2, [IG498] 0...100 kgf/cm2, [IG514] 0...140 kgf/cm2, [IG516] 0...160 kgf/cm2, [IG520] 0...200 kgf/cm2, [IG531] 0...315 kgf/cm2, [IG539] 0...400 kgf/cm2, ￭ kgf/cm2 vacuum ￭, [IV298] -1 kgf/cm2, [IV316] -1/+0,6 kgf/cm2, [IV320] -1/+1 kgf/cm2, [IV325] -1/+1,5 kgf/cm2, [IV329] -1...+2 kgf/cm2, [IV339] -1...+3 kgf/cm2, [IV349] -1...+4 kgf/cm2, [IV359] -1...+5 kgf/cm2, [IV378] -1...+7 kgf/cm2, [IV398] -1...+9 kgf/cm2, [IV411] -1...+10 kgf/cm2, [IV416] -1...+15 kgf/cm2, [IV425] -1...+24 kgf/cm2, [IV430] -1...+30 kgf/cm2
2nd Scale [Z] Without, [B] bar, [P] psi, [L] kPa, [E] MPa, [K] kg/cm2
Process Connection [NB] 1/4 NPT, [9M] 1/4" Swivel Male Face Seal-GR, 9/16-18 UNF, Gall Resistant, [9F] 1/4" Swivel Female Face Seal-GR, 9/16-18 UNF, Gall Resistant, [WG] 1/4" Fixed Male Face Seal, 9/16-18 UNF, [WH] 1/4" Swivel Male Face Seal, 9/16-18 UNF, [WI] 1/4" Swivel Female Face Seal, 9/16-18 UNF, [VN] 1/4" Weld Stub, [1B] 1/4" Swivel Male Face Seal, 9/16-18 UNF, VCR-SS-4-HVCR-4SR, [1C] 1/4" Swivel Female Face Seal, 9/16-18 UNF, VCR-SS-4-HVCR-1SR
Connector Location [U] Lower Mount (2"), [B] Center Back Mount (2"), [U] Lower Mount (1.5"), [B] Center Back Mount (1.5")
Mounting Flange / Bracket [Z] Without, [F] Front Flange, Polished SS Standard), [K] Panel Mount w/Stainless Steel U-clamp
Switch Type [Z] Without, [P] Inductive Switch PNP w/3 ft cable, [N] Inductive Switch NPN w/3 ft cable
Electrical Connection [ZZZ-Z26] Without, [DAZ-Z26] Flying Lead
Accuracy Class [JE] ± 3/2/3% (ASME B40.100 Grade B), [IE] ± 2/1/2% (ASME B40.100 Grade A)
System Quality [2] Extrude Hone/Electropolished, [5] Electropolished and Passivated
Connection Surface Finish [4] Electro polished Gland/Socket < RA10/RA20 µinch, [5] < RA40 µinch
Approvals [Z] Without
Certificates [Z] Without
Additional Ordering Info [Z26] Without
Window [E] Polycarbonate
Case Material [4] SS, Electropolished
Wetted Parts [1] 316L SS
Cleaning [2] Cleaned acc. to SEMI Specs, Nitrogen Purged & Double Bagged
Gauge Features
Gauge: Brand Wika
Gauge: Product Unit of Measure psi / inHg, bar, kPa, kg/cm2, MPa, barg, psi / inHg, kPag, MPag, kg/cm2g, kgf/cm2, psig / inHg
Gauge: Process Connection Location Lower Mount, Center Back Mount
Gauge: Case Material Stainless Steel
Gauge: Window Polycarbonate
Gauge: Dial Material Aluminum
Gauge: Pointer Material Aluminum
Gauge: Bezel Material None
Gauge: Wetted Material Stainless Steel
Gauge: Fill Type Dry
Gauge: Dial Size 1-1/2 in (38 mm), 2 in (50 mm)
Gauge: Process Connection Size 1/4 NPT
Gauge: Accuracy ±3%, ±2%
Gauge: Measuring Principle Bourdon Tube
Gauge: Pressure Type Gauge Pressure
Gauge: Model 230.15
Gauge: Scale Range ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
