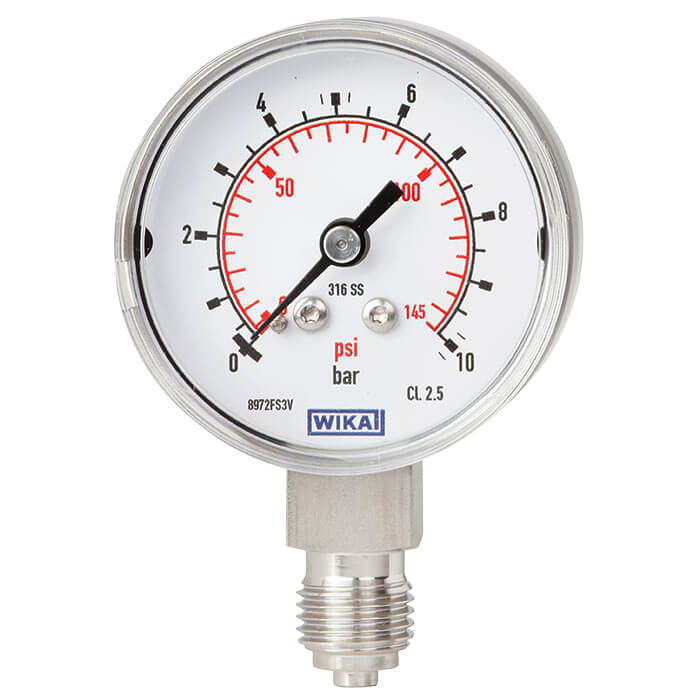

Wika 131.11 Series 1.5" SS Dry Pressure Gauge, SS Wetted Parts

• Nominal Size
  • 1.5"
• Scale Range ￭ psi ￭ [PG310] 0/15 psi [PG321] 0/30 psi [PG341] 0/60 psi [PG369] 0/100 psi [PG410] 0/150 psi [PG411] 0/160 psi [PG414] 0/200 psi [PG417] 0/250 psi [PG421] 0/300 psi [PG428] 0/400 psi [PG434] 0/500 psi [PG441] 0/600 psi [PG455] 0/800 psi [PG469] 0/1000 psi [PG510] 0/1500 psi + $ 3.08 [PG514] 0/2000 psi + $ 3.08 [PG521] 0/3000 psi + $ 3.08 [PG528] 0/4000 psi + $ 3.08 [PG534] 0/5000 psi + $ 3.08 [PG541] 0/6000 psi + $ 3.08 [PG552] 0/7500 psi + $ 3.08 ￭ psi / -inHg ￭ [PV310] -30 inHg/0 psi + $ 8.07 [PV321] -30 inHg/15 psi + $ 8.07 [PV331] -30 inHg/30 psi + $ 8.07 [PV352] -30 inHg/60 psi + $ 8.07 [PV379] -30 inHg/100 psi + $ 8.07 [PV412] -30 inHg/160 psi + $ 8.07 [PV415] -30 inHg/200 psi + $ 8.07 [PV422] -30 inHg/300 psi + $ 8.07
• 2nd Scale
  • [Z] Without
  • [B] bar
  • [L] kPa
• Process Connection
  • [NB] 1/4 NPT
  • [NH] 1/8" NPT
• Connector Location
  • [U] Lower Mount
  • [B] Center Back Mount + $ 12.08
• Mounting Flange / Bracket
  • [Z] Without
  • [K] Profile Ring, SS, w/Mounting Bracket + $ 27.03
• Bezel Ring
  • [Z] Without
  • [W] Stainless Steel + $ 10.06
• Window
  • [E] Polycarbonate
• Restrictor
  • [ZZ-ZZZ11] Without
  • [QZ-ZZZ11] Stainless Steel, D 0.6 + $ 10.06
• Special Design Features
  • [ZZZZ] Without
• Certificates
  • [Z] Without
• Approvals
  • [Z] Without
• Additional Ordering Info
  • [Z11] Without
• Accuracy Class
  • [J] +/- 3/2/3% (ASME B40.100 Grade B)
• Case Material
  • [3] 304 SS
• Case Type
  • [ZD4FWZ] Standard
• Case Surface
  • [D] Bare
• Pressure Element Material
  • [4] 316 SS
• Ingress Protection
  • [F] IP 54
• Permissible Ambient Temp
  • [W] -40 ... +60 °C
• Assembly Accessory
  • [Z] Without
• Thread Protection
  • [ZR-U] Without
  • [1R-U] With Thread Protection + $ 4.90
• Packing
  • [R] Series Packing
• Pressure Gauge Standard
  • [U] US-Standard
• Color for Inner Scale
  • [ZZZZZZ211ZZ] Without
  • [CZZZZZ211ZZ] Red
• Logo Options
  • [ZZZZZ] Without
• Manufacturer Logo
  • [2] *WIKA®*
• Serial Number on Dial
  • [1] Serial number *...*
• Stop Pin on Dial
  • [1] At Zero
• Red Mark at
  • [Z] Without
• Text for Dial
  • [Z] Without
• Gauge: Brand Wika
• Gauge: Type
  • Dial Indicating Gauge
• Gauge: Model 131.11
• Gauge: Dial Size
  • 1-1/2 in (38 mm)
• Gauge: Scale Range
  • ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
• Gauge: Pressure Type
  • Gauge Pressure
• Gauge: Measuring Principle
  • Bourdon Tube
• Gauge: Fill Type
  • Dry
• Gauge: Product Unit of Measure
  • psi / inHg
• Gauge: Process Connection Size
  • 1/8 NPT
• Gauge: Process Connection Size
  • 1/4 NPT
• Gauge: Process Connection Location
  • Center Back Mount
• Gauge: Process Connection Location
  • Lower Mount
• Gauge: Wetted Material
  • Stainless Steel
• Gauge: Accuracy
  • ±3%
• Gauge: Case Material
  • Stainless Steel
• Gauge: Window
  • Polycarbonate
• Gauge: Dial Material
  • Aluminum
• Gauge: Pointer Material
  • Aluminum
• Gauge: Bezel Material
  • Stainless Steel
• Gauge: Window Ring
  • Without

This combination does not exist.
