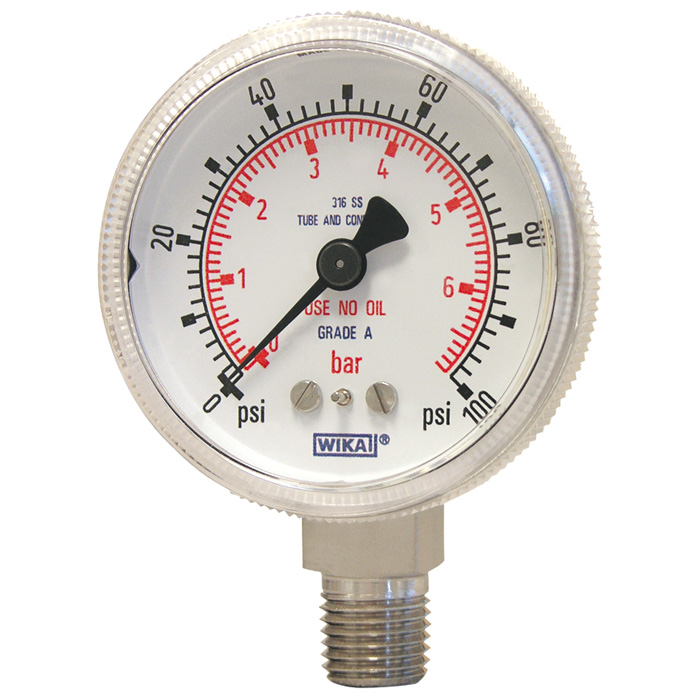

Representative photo. Please check item description for details.
130.15 Series 1.5" or 2" SS Dry High Purity Pressure Gauge, SS Wetted Parts
Manufacturer: Wika Instrument Lp
Mfg Product Code:
On Hand: 0
130.15 Series High Purity Pressure Gauge
The 130.15 Series High Purity Pressure Gauge is designed to meet the rigorous demands of the semiconductor, electronic, medical, gene technology, biotechnology, and pharmaceutical industries. This pressure gauge is ideal for applications that require precise measurement of high purity gases without contaminating the process media. It is perfectly suited for use in corrosive environments as well as with gaseous or liquid media that won't obstruct the pressure system.
Featuring wetted parts made from 316L stainless steel, the 130.15 Series ensures exceptional durability and resistance to corrosion. The gauge is further enhanced by an electro-polished stainless steel case and face-seal connection, which provide a smooth, clean finish that is essential for maintaining high purity standards. With positive and compound pressure ranges reaching up to 10,000 psi, this gauge is capable of handling a wide range of pressure measurements with accuracy and reliability.
For those in need of a high purity pressure gauge, Branom is the go-to store for top-quality instruments. Branom offers the 130.15 Series with confidence, knowing it will meet the stringent requirements of your industry. This pressure gauge's robust construction and precise performance make it an indispensable tool for ensuring the integrity of your processes.
Choose the 130.15 Series High Purity Pressure Gauge from Branom to experience unmatched quality and dependability in pressure measurement.
Order Code Prefix: 130.15-
Specifications
| Wika 130.15 | |
|---|---|
| Nominal Size | [6] 1.5" or [7] 2" |
| Scale Range | ￭ psi ￭ or [PG310] 0/15 psi or [PG321] 0/30 psi or [PG341] 0/60 psi or [PG369] 0/100 psi or [PG410] 0/150 psi or [PG411] 0/160 psi or [PG414] 0/200 psi or [PG417] 0/250 psi or [PG421] 0/300 psi or [PG428] 0/400 psi or [PG434] 0/500 psi or [PG441] 0/600 psi or [PG469] 0/1000 psi or [PG510] 0/1500 psi or [PG514] 0/2000 psi or [PG521] 0/3000 psi or [PG528] 0/4000 psi or [PG534] 0/5000 psi or [PG541] 0/6000 psi or ￭ psi / inHg ￭ or [PV310] -30 inHg/0 psi or [PV321] -30 inHg/15 psi or [PV331] -30 inHg/30 psi or [PV340] -30 inHg/45 psi or [PV352] -30 inHg/60 psi or [PV379] -30 inHg/100 psi or [PV412] -30 inHg/160 psi or [PV415] -30 inHg/200 psi or [PV422] -30 inHg/300 psi or ￭ bar ￭ or [BG310] 0/1 bar or [BG316] 0/1.6 bar or [BG320] 0/2 bar or [BG325] 0/2.5 bar or [BG340] 0/4 bar or [BG360] 0/6 bar or [BG370] 0/7 bar or [BG410] 0/10 bar or [BG414] 0/14 bar or [BG416] 0/16 bar or [BG420] 0/20 bar or [BG425] 0/25 bar or [BG430] 0/30 bar or [BG440] 0/40 bar or [BG460] 0/60 bar or [BG470] 0/70 bar or [BG510] 0/100 bar or [BG514] 0/140 bar or [BG516] 0/160 bar or [BG520] 0/200 bar or [BG532] 0/315 bar or [BG540] 0/400 bar or ￭ bar vacuum ￭ or [BV310] -1/0 bar or [BV316] -1/0.6 bar or [BV320] -1/1 bar or [BV325] -1/1.5 bar or [BV330] -1/2 bar or [BV340] -1/3 bar or [BV350] -1/4 bar or [BV360] -1/5 bar or [BV380] -1/7 bar or [BV410] -1/9 bar or [BV411] -1/10 bar or [BV416] -1/15 bar or [BV425] -1/24 bar or [BV426] -1/25 bar or [BV431] -1/30 bar or ￭ kPa ￭ or [LG310] 0/100 kPa or [LG316] 0/160 kPa or [LG320] 0/200 kPa or [LG325] 0/250 kPa or [LG330] 0/300 kPa or [LG340] 0/400 kPa or [LG360] 0/600 kPa or [LG370] 0/700 kPa or [LG410] 0/1000 kPa or [LG414] 0/1400 kPa or [LG416] 0/1600 kPa or [LG425] 0/2500 kPa or [LG430] 0/3000 kPa or [LG440] 0/4000 kPa or [LG460] 0/6000 kPa or [LG470] 0/7000 kPa or [LG510] 0/10000 kPa or [LG514] 0/14000 kPa or [LG516] 0/16000 kPa or [LG520] 0/20000 kPa or [LG532] 0/31500 kPa or [LG540] 0/40000 kPa or ￭ kPa vacuum ￭ or [LV310] -100/0 kPa or [LV316] -100/60 kPa or [LV320] -100/100 kPa or [LV325] -100/150 kPa or [LV330] -100/200 kPa or [LV340] -100/300 kPa or [LV350] -100/400 kPa or [LV360] -100/500 kPa or [LV380] -100/700 kPa or [LV410] -100/900 kPa or [LV411] -100/1000 kPa or [LV416] -100/1500 kPa or [LV425] -100/2400 kPa or [LV431] -100/3000 kPa or ￭ MPa ￭ or [EG310] 0/0.1 MPa or [EG316] 0/0.16 MPa or [EG320] 0/0.2 MPa or [EG325] 0/0.25 MPa or [EG340] 0/0.4 MPa or [EG360] 0/0.6 MPa or [EG370] 0/0.7 MPa or [EG410] 0/1 MPa or [EG414] 0/1.4 MPa or [EG416] 0/1.6 MPa or [EG420] 0/2 MPa or [EG425] 0/2.5 MPa or [EG430] 0/3 MPa or [EG440] 0/4 MPa or [EG460] 0/6 MPa or [EG470] 0/7 MPa or [EG510] 0/10 MPa or [EG514] 0/14 MPa or [EG516] 0/16 MPa or [EG520] 0/20 MPa or [EG532] 0/31.5 MPa or [EG540] 0/40 MPa or ￭ MPa vacuum ￭ or [EV310] -0.1/0 MPa or [EV316] -0.1/0.06 MPa or [EV320] -0.1/0.1 MPa or [EV325] -0.1/0.15 MPa or [EV330] -0.1/0.2 MPa or [EV340] -0.1/0.3 MPa or [EV350] -0.1/0.4 MPa or [EV360] -0.1/0.5 MPa or [EV380] -0.1/0.7 MPa or [EV410] -0.1/0.9 MPa or [EV411] -0.1/1 MPa or [EV416] -0.1/1.5 MPa or [EV425] -0.1/2.4 MPa or [EV431] -0.1/3 MPa or ￭ kg/cm2 ￭ or [KG298] 0/1 kg/cm2 or [KG316] 0/1.6 kg/cm2 or [KG320] 0/2 kg/cm2 or [KG325] 0/2.5 kg/cm2 or [KG339] 0/4 kg/cm2 or [KG359] 0/6 kg/cm2 or [KG369] 0/7 kg/cm2 or [KG398] 0/10 kg/cm2 or [KG414] 0/14 kg/cm2 or [KG416] 0/16 kg/cm2 or [KG420] 0/20 kg/cm2 or [KG425] 0/25 kg/cm2 or [KG429] 0/30 kg/cm2 or [KG439] 0/40 kg/cm2 or [KG459] 0/60 kg/cm2 or [KG469] 0/70 kg/cm2 or [KG498] 0/100 kg/cm2 or [KG514] 0/140 kg/cm2 or [KG516] 0/160 kg/cm2 or [KG520] 0/200 kg/cm2 or [KG531] 0/315 kg/cm2 or [KG539] 0/400 kg/cm2 or ￭ kg/cm2 vacuum ￭ or [KV298] -1/0 kg/cm2 or [KV316] -1/0.6 kg/cm2 or [KV320] -1/1 kg/cm2 or [KV325] -1/1.5 kg/cm2 or [KV329] -1/2 kg/cm2 or [KV339] -1/3 kg/cm2 or [KV349] -1/4 kg/cm2 or [KV359] -1/5 kg/cm2 or [KV378] -1/7 kg/cm2 or [KV398] -1/9 kg/cm2 or [KV411] -1/10 kg/cm2 or [KV416] -1/15 kg/cm2 or [KV425] -1/24 kg/cm2 or [KV430] -1/30 kg/cm2 or ￭ barg ￭ or [8G310] 0/1 barg or [8G316] 0/1.6 barg or [8G320] 0/2 barg or [8G325] 0/2.5 barg or [8G340] 0/4 barg or [8G350] 0/5 barg or [8G360] 0/6 barg or [8G370] 0/7 barg or [8G410] 0/10 barg or [8G414] 0/14 barg or [8G416] 0/16 barg or [8G420] 0/20 barg or [8G425] 0/25 barg or [8G430] 0/30 barg or [8G440] 0/40 barg or [8G460] 0/60 barg or [8G470] 0/70 barg or [8G510] 0/100 barg or [8G514] 0/140 barg or [8G516] 0/160 barg or [8G520] 0/200 barg or [8G532] 0/315 barg or [8G540] 0/400 barg or ￭ barg vacuum ￭ or [8V310] -1/0 barg or [8V316] -1/0.6 barg or [8V320] -1/1 barg or [8V325] -1/1.5 barg or [8V330] -1/2 barg or [8V340] -1/3 barg or [8V350] -1/4 barg or [8V360] -1/5 barg or [8V380] -1/7 barg or [8V410] -1/9 barg or [8V411] -1/10 barg or [8V416] -1/15 barg or [8V425] -1/24 barg or [8V431] -1/30 barg or ￭ psig ￭ or [NG310] 0/15 psig or [NG321] 0/30 psig or [NG341] 0/60 psig or [NG369] 0/100 psig or [NG410] 0/150 psig or [NG411] 0/160 psig or [NG414] 0/200 psig or [NG417] 0/250 psig or [NG421] 0/300 psig or [NG428] 0/400 psig or [NG434] 0/500 psig or [NG441] 0/600 psig or [NG469] 0/1000 psig or [NG510] 0/1500 psig or [NG514] 0/2000 psig or [NG521] 0/3000 psig or [NG528] 0/4000 psig or [NG534] 0/5000 psig or [NG541] 0/6000 psig or ￭ psig / inHg ￭ or [NV310] -30 inHG/0 psig or [NV321] -30 inHg/15 psig or [NV331] -30 inHg/30 psig or [NV352] -30 inHg/60 psig or [NV379] -30 inHg/100 psig or [NV412] -30 inHg/160 psig or [NV415] -30 inHg/200 psig or [NV422] -30 inHg/300 psig or ￭ kPag ￭ or [4G310] 0/100 kPag or [4G316] 0/160 kPag or [4G320] 0/200 kPag or [4G325] 0/250 kPag or [4G330] 0/300 kPag or [4G340] 0/400 kPag or [4G360] 0/600 kPag or [4G370] 0/700 kPag or [4G410] 0/1000 kPag or [4G414] 0/1400 kPag or [4G416] 0/1600 kPag or [4G420] 0/2000 kPag or [4G425] 0/2500 kPag or [4G430] 0/3000 kPag or [4G440] 0/4000 kPag or [4G460] 0/6000 kPag or [4G470] 0/7000 kPag or [4G510] 0/10000 kPag or [4G514] 0/14000 kPag or [4G516] 0/16000 kPag or [4G520] 0/20000 kPag or [4G532] 0/31500 kPag or [4G540] 0/40000 kPag or ￭ kPag vacuum ￭ or [4V310] -100/0 kPag or [4V316] -100/60 kPag or [4V320] -100/100 kPag or [4V325] -100/150 kPag or [4V330] -100/200 kPag or [4V340] -100/300 kPag or [4V350] -100/400 kPag or [4V360] -100/500 kPag or [4V380] -100/700 kPag or [4V410] -100/900 kPag or [4V411] -100/1000 kPag or [4V416] -100/1500 kPag or [4V425] -100/2400 kPag or [4V431] -100/3000 kPag or ￭ MPag ￭ or [3G310] 0/0.1 MPag or [3G316] 0/0.16 MPag or [3G320] 0/0.2 MPag or [3G325] 0/0.25 MPag or [3G340] 0/0.4 MPag or [3G360] 0/0.6 MPag or [3G370] 0/0.7 MPag or [3G410] 0/1 MPag or [3G414] 0/1.4 MPag or [3G416] 0/1.6 MPag or [3G425] 0/2.5 MPag or [3G430] 0/3 MPag or [3G440] 0/4 MPag or [3G460] 0/6 MPag or [3G470] 0/7 MPag or [3G510] 0/10 MPag or [3G514] 0/14 MPag or [3G516] 0/16 MPag or [3G520] 0/20 MPag or [3G532] 0/31.5 MPag or [3G540] 0/40 MPag or ￭ MPag vacuum ￭ or [3V310] -0.1/0 MPag or [3V316] -0.1/0.06 MPag or [3V320] -0.1/0.1 MPag or [3V325] -0.1/0.15 MPag or [3V330] -0.1/0.2 MPag or [3V340] -0.1/0.3 MPag or [3V350] -0.1/0.4 MPag or [3V360] -0.1/0.5 MPag or [3V380] -0.1/0.7 MPag or [3V410] -0.1/0.9 MPag or [3V411] -0.1/1 MPag or [3V416] -0.1/1.5 MPag or [3V425] -0.1/2.4 MPag or [3V431] -0.1/3 MPag or ￭ kg/cm2g ￭ or [AG298] 0/1 kg/cm2g or [AG316] 0/1.6 kg/cm2g or [AG320] 0/2 kg/cm2g or [AG325] 0/2.5 kg/cm2g or [AG339] 0/4 kg/cm2g or [AG349] 0/5 kg/cm2g or [AG359] 0/6 kg/cm2g or [AG369] 0/7 kg/cm2g or [AG398] 0/10 kg/cm2g or [AG414] 0/14 kg/cm2g or [AG416] 0/16 kg/cm2g or [AG420] 0/20 kg/cm2g or [AG425] 0/25 kg/cm2g or [AG429] 0/30 kg/cm2g or [AG439] 0/40 kg/cm2g or [AG459] 0/60 kg/cm2g or [AG469] 0/70 kg/cm2g or [AG498] 0/100 kg/cm2g or [AG514] 0/140 kg/cm2g or [AG516] 0/160 kg/cm2g or [AG520] 0/200 kg/cm2g or [AG531] 0/315 kg/cm2g or [AG539] 0/400 kg/cm2g or ￭ kg/cm2g vacuum ￭ or [AV298] -1/0 kg/cm2g or [AV316] -1/0.6 kg/cm2g or [AV320] -1/1 kg/cm2g or [AV325] -1/1.5 kg/cm2g or [AV329] -1/2 kg/cm2g or [AV339] -1/3 kg/cm2g or [AV349] -1/4 kg/cm2g or [AV359] -1/5 kg/cm2g or [AV378] -1/7 kg/cm2g or [AV398] -1/9 kg/cm2g or [AV411] -1/10 kg/cm2g or [AV416] -1/15 kg/cm2g or [AV425] -1/24 kg/cm2g or [AV430] -1/30 kg/cm2g or ￭ kgf/cm2 ￭ or [IG298] 0...1 kgf/cm2 or [IG316] 0...1,6 kgf/cm2 or [IG320] 0...2 kgf/cm2 or [IG325] 0...2,5 kgf/cm2 or [IG339] 0...4 kgf/cm2 or [IG359] 0...6 kgf/cm2 or [IG369] 0...7 kgf/cm2 or [IG398] 0...10 kgf/cm2 or [IG414] 0...14 kgf/cm2 or [IG416] 0...16 kgf/cm2 or [IG420] 0...20 kgf/cm2 or [IG425] 0...25 kgf/cm2 or [IG429] 0...30 kgf/cm2 or [IG439] 0...40 kgf/cm2 or [IG459] 0...60 kgf/cm2 or [IG469] 0...70 kgf/cm2 or [IG498] 0...100 kgf/cm2 or [IG514] 0...140 kgf/cm2 or [IG516] 0...160 kgf/cm2 or [IG520] 0...200 kgf/cm2 or [IG531] 0...315 kgf/cm2 or [IG539] 0...400 kgf/cm2 or ￭ kgf/cm2 vacuum ￭ or [IV298] -1 kgf/cm2 or [IV316] -1/+0,6 kgf/cm2 or [IV320] -1/+1 kgf/cm2 or [IV325] -1/+1,5 kgf/cm2 or [IV329] -1...+2 kgf/cm2 or [IV339] -1...+3 kgf/cm2 or [IV349] -1...+4 kgf/cm2 or [IV359] -1...+5 kgf/cm2 or [IV378] -1...+7 kgf/cm2 or [IV398] -1...+9 kgf/cm2 or [IV411] -1...+10 kgf/cm2 or [IV416] -1...+15 kgf/cm2 or [IV425] -1...+24 kgf/cm2 or [IV430] -1...+30 kgf/cm2 |
| 2nd Scale | [Z] Without or [B] bar or [P] psi or [L] kPa or [E] MPa or [K] kg/cm2 |
| Connector Location | [U] Lower Mount (2") or [B] Center Back Mount (2") or [U] Lower Mount (1.5") or [B] Center Back Mount (1.5") |
| Mounting Flange / Bracket | [Z] Without or [F] Front Flange, Polished SS Standard) or [K] Panel Mount w/Stainless Steel U-clamp |
| Switch Type | [Z-ZZ-25] Without or [P-ZZ-25] Inductive Switch PNP w/3 ft cable or [N-ZZ-25] Inductive Switch NPN w/3 ft cable |
| Accuracy Class | [J] ± 3/2/3% (ASME B40.100 Grade B) or [I] ± 2/1/2% (ASME B40.100 Grade A) |
| Process Connection | [NB] 1/4 NPT |
| Electrical Connection | [Z] Without |
| Certificates | [Z] Without |
| Additional Ordering Info | [ZZ25] Without |
| Window | [E] Polycarbonate |
| Case Material | [4] SS, Electropolished |
| Wetted Parts | [1] 316L SS |
| System Quality | [1] Standard |
| Connection Surface Finish | [5] < RA40 µinch |
| Cleaning | [1] Cleaned acc. ASME B40.1 Level IV, Nitrogen Purged & Bagged |
| Gauge Features | |
|---|---|
| *Gauge Brand | Wika |
| *Model | 130.15 |
| *Dial Size | 1-1/2 in (38 mm), 2 in (50 mm) |
| *Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| *Pressure Type | Gauge Pressure |
| *Measuring Principle | Bourdon Tube |
| *Fill Type | Dry |
| *Product Unit of Measure | psi / inHg, bar, kPa, kg/cm2, MPa, barg, kPag, MPag, kg/cm2g, kgf/cm2, psig / inHg |
| *Process Connection Size | 1/4 NPT |
| *Process Connection Location | Lower Mount, Center Back Mount |
| *Wetted Material | Stainless Steel |
| *Accuracy | ±3%, ±2% |
| *Case Material | Stainless Steel |
| *Window | Polycarbonate |
| *Dial Material | Aluminum, White |
| *Pointer Material | Aluminum, Black |
| *Bezel Material | None |
