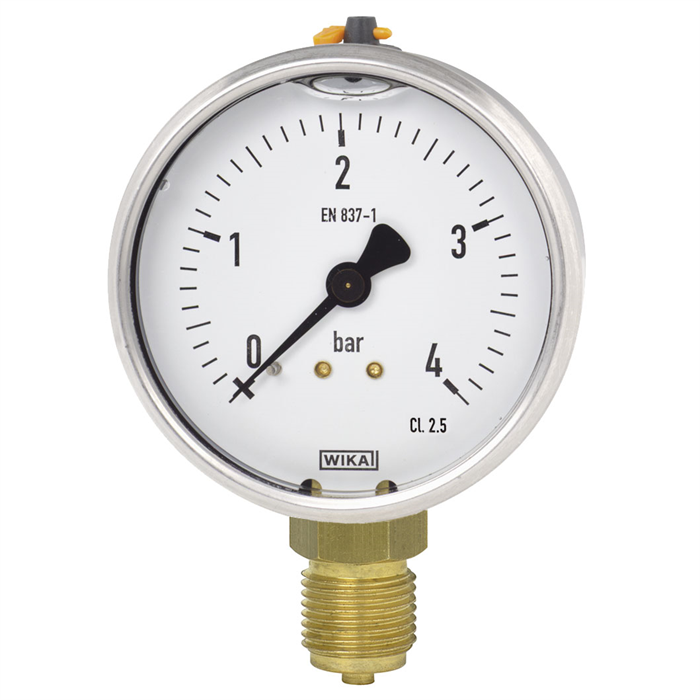

113.53 Series 3" or 4" SS Pressure Gauge, Liquid Filled, Brass Wetted Parts
The Wika 113.53 Series Stainless Steel Pressure Gauge is designed to withstand demanding environments with high dynamic pressure pulsations or vibrations. Its robust stainless steel case and liquid-filled construction ensure durability and reliable performance in challenging conditions. This gauge is ideal for use with all gaseous and liquid media that do not obstruct the pressure system or corrode copper alloy wetted parts, making it highly versatile across various applications.
With compound pressure ranges extending up to 200 PSI (16 bar) and positive pressure ranges reaching 5000 PSI (350 bar), this pressure gauge offers exceptional accuracy and reliability. The use of copper alloy wetted parts enhances its performance and longevity, ensuring it meets the needs of both low and high-pressure systems.
For those seeking a dependable and resilient pressure gauge, the Wika 113.53 Series is an excellent choice. Branom is renowned for providing top-quality products, making it the best place to purchase this high-performance pressure gauge.
Order Code Prefix: US-111.53-
This product is no longer available.
Specifications
| Wika 113.53DE | |
|---|---|
| Nominal Size | [D] 3", [E] 4" |
| Scale Range | ￭ psi ￭, [PG310] 0/15 psi, [PG321] 0/30 psi, [PG341] 0/60 psi, [PG369] 0/100 psi, [PG410] 0/150 psi, [PG411] 0/160 psi, [PG414] 0/200 psi, [PG421] 0/300 psi, [PG428] 0/400 psi, [PG434] 0/500 psi, [PG441] 0/600 psi, [PG455] 0/800 psi, [PG469] 0/1000 psi, [PG510] 0/1500 psi, [PG514] 0/2000 psi, [PG521] 0/3000 psi, [PG528] 0/4000 psi, [PG534] 0/5000 psi, [PG541] 0/6000 psi, [PG552] 0/7500 psi, ￭ psi / inHg ￭, [PV310] -30 inHg/0 psi, [PV321] -30 inHg/15 psi, ￭ bar ￭, [BG310] 0/1 bar, [BG316] 0/1.6 bar, [BG325] 0/2.5 bar, [BG340] 0/4 bar, [BG360] 0/6 bar, [BG410] 0/10 bar, [BG416] 0/16 bar, [BG425] 0/25 bar, [BG440] 0/40 bar, [BG460] 0/60 bar, [BG510] 0/100 bar, [BG516] 0/160 bar, [BG520] 0/200 bar, [BG525] 0/250 bar, [BG532] 0/315 bar, [BG540] 0/400 bar, [BG560] 0/600 bar, ￭ bar vacuum ￭, [BV310] -1/0 bar, [BV316] -1/0.6 bar, [BV325] -1/1.5 bar, [BV340] -1/3 bar, [BV360] -1/5 bar, [BV410] -1/9 bar, [BV416] -1/15 bar, [BV425] -1/24 bar, [BV431] -1/30 bar, [BV441] -1...+40 bar, ￭ kPa ￭, [LG310] 0/100 kPa, [LG320] 0/200 kPa, [LG325] 0/250 kPa, [LG340] 0/400 kPa, [LG360] 0/600 kPa, [LG380] 0/800 kPa, [LG410] 0/1000 kPa, [LG416] 0/1600 kPa, [LG425] 0/2500 kPa, [LG440] 0/4000 kPa, [LG460] 0/6000 kPa, [LG480] 0/8000 kPa, [LG510] 0/10000 kPa, [LG516] 0/16000 kPa, [LG520] 0/20000 kPa, [LG525] 0/25000 kPa, [LG532] 0/31500 kPa, [LG540] 0/40000 kPa, [LG560] 0/60000 kPa, ￭ kPa vacuum ￭, [LV310] -100/0 kPa, [LV316] -100/60 kPa, [LV320] -100/100 kPa, [LV325] -100/150 kPa, [LV340] -100/300 kPa, [LV360] -100/500 kPa, [LV410] -100/900 kPa, [LV416] -100/1500 kPa, [LV425] -100/2400 kPa, [LV431] -100/3000 kPa, ￭ MPa ￭, [EG310] 0/0.1 MPa, [EG316] 0/0.16 MPa, [EG325] 0/0.25 MPa, [EG340] 0/0.4 MPa, [EG360] 0/0.6 MPa, [EG410] 0/1 MPa, [EG416] 0/1.6 MPa, [EG425] 0/2.5 MPa, [EG440] 0/4 MPa, [EG460] 0/6 MPa, [EG510] 0/10 MPa, [EG516] 0/16 MPa, [EG520] 0/20 MPa, [EG525] 0/25 MPa, [EG532] 0/31.5 MPa, [EG540] 0/40 MPa, [EG560] 0/60 MPa, ￭ MPa vacuum ￭, [EV310] -0.1/0 MPa, [EV316] -0.1/0.06 MPa, [EV320] -0.1/0.1 MPa, [EV325] -0.1/0.15 MPa, [EV340] -0.1/0.3 MPa, [EV360] -0.1/0.5 MPa, [EV410] -0.1/0.9 MPa, [EV416] -0.1/1.5 MPa, [EV425] -0.1/2.4 MPa, [EV431] -0.1/3 MPa, [EV441] -0,1...+4 MPa, ￭ kg/cm2 ￭, [KG298] 0/1 kg/cm2, [KG316] 0/1.6 kg/cm2, [KG325] 0/2.5 kg/cm2, [KG339] 0/4 kg/cm2, [KG359] 0/6 kg/cm2, [KG398] 0/10 kg/cm2, [KG416] 0/16 kg/cm2, [KG425] 0/25 kg/cm2, [KG439] 0/40 kg/cm2, [KG459] 0/60 kg/cm2, [KG498] 0/100 kg/cm2, [KG516] 0/160 kg/cm2, [KG520] 0/200 kg/cm2, [KG525] 0/250 kg/cm2, [KG531] 0/315 kg/cm2, [KG539] 0/400 kg/cm2, [KG559] 0/600 kg/cm2, ￭ kg/cm2 vacuum ￭, [KV298] -1/0 kg/cm2, [KV316] -1/0.6 kg/cm2, [KV320] -1/1 kg/cm2, [KV325] -1/1.5 kg/cm2, [KV339] -1/3 kg/cm2, [KV359] -1/5 kg/cm2, [KV398] -1/9 kg/cm2, [KV416] -1/15 kg/cm2, [KV425] -1/24 kg/cm2, [KV430] -1/30 kg/cm2 |
| 2nd Scale | [Z] Without, [B] bar, [P] psi, [L] kPa, [E] MPa, [K] kg/cm2 |
| Process Connection | [MK] M12 x 1.5, [MI] M20 x 1.5, [GB] G 1/4 B, [GD] G 1/2 B, [NB] 1/4 NPT, [RE] R 1/4-ISO7 (DIN2999) |
| Connector Location | [U] Lower Mount, [B] Center Back Mount |
| Mounting Flange / Bracket | [Z] Without, [C] Rear Flange, Stainless Steel, [M] Front Flange, SS, [3] Narrow Panel Ring, SS, Rolled on w/Mounting Bracket |
| Restrictor | [Z] Without, [L] Brass, D 0.3, [M] Brass, Orifice (0.5mm / 0.02 in) |
| Accuracy Class | [3] Class 1.6, [4] Class 2.5, [I] ±2/1/2% (ASME B40.100 Grade A), [J] ±3/2/3% (ASME B40.100 Grade B) |
| Case Filling | [G-ZZZ] Glycerin, [S-ZZZ] Silicone (3"), [S-ZZZ] Silicone (4"), [V-ZZZ] Prepared for Filling |
| Window | [C] Polycarbon |
| Certificates | [Z] Without |
| Approvals | [Z] Without |
| Additional Ordering Info | [Z] Without |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Model | 113.53 |
| Gauge: Dial Size | 3 in (76 mm & 80 mm), 4 in (100 mm) |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Fill Type | Liquid Filled / Fillable |
| Gauge: Product Unit of Measure | psi / inHg, bar, kPa, MPa, kg/cm2 |
| Gauge: Process Connection Size | M20 x 1.5, G 1/4 B, G 1/8 B, M12 x 1.5, R 1/4-ISO7, 1/4 NPT |
| Gauge: Process Connection Location | Center Back Mount, Lower Mount |
| Gauge: Wetted Material | Copper Alloy (Brass) |
| Gauge: Accuracy | ±3%, ±2% |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Acrylic (PMMA) |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Material | Aluminum |
| Gauge: Bezel Material | None |
| Gauge: Window Ring | Crimped Ring |
